Help CenterChina Vertical and Horizontal Turret Milling Machine X6332C for Sale
Related Products
-
China Hot Sale Spindle ISO40 Universal Milling Machine X6332CUS$ 7,050 - 8,300MOQ: 1 Set -
High Quality Metal Milling Machine X6332C With 3HP Taiwan High Speed Milling HeadUS$ 7,050 - 8,300MOQ: 1 Set
-
China Milling Machine X6332CUS$ 7,050 - 8,300MOQ: 1 Set
-
Swivel Head Universal Milling Machine X6332C for SaleUS$ 7,050 - 8,300MOQ: 1 Set
-
3HP China High Quality Universal Turret Milling Machine X6328B PriceUS$ 4,825 - 5,300MOQ: 1 Set
Turret head milling machine X6332C description

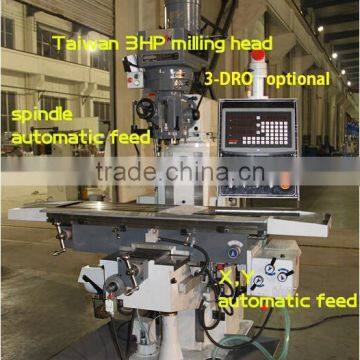

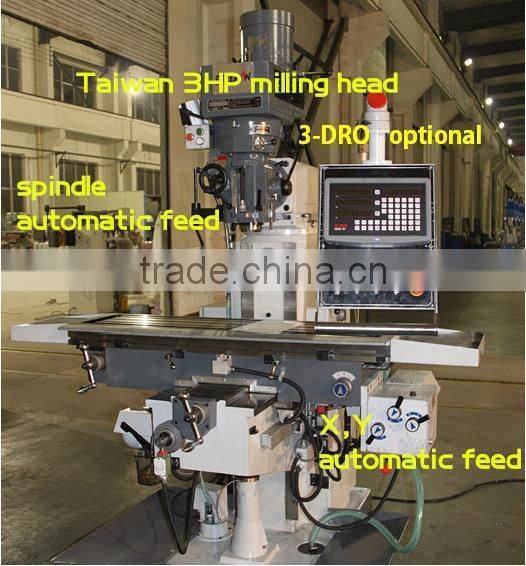

1.The milling head is Taiwan 3HP milling head
2.X,Y is automatic feed, Z axis motorized lifting and lowering

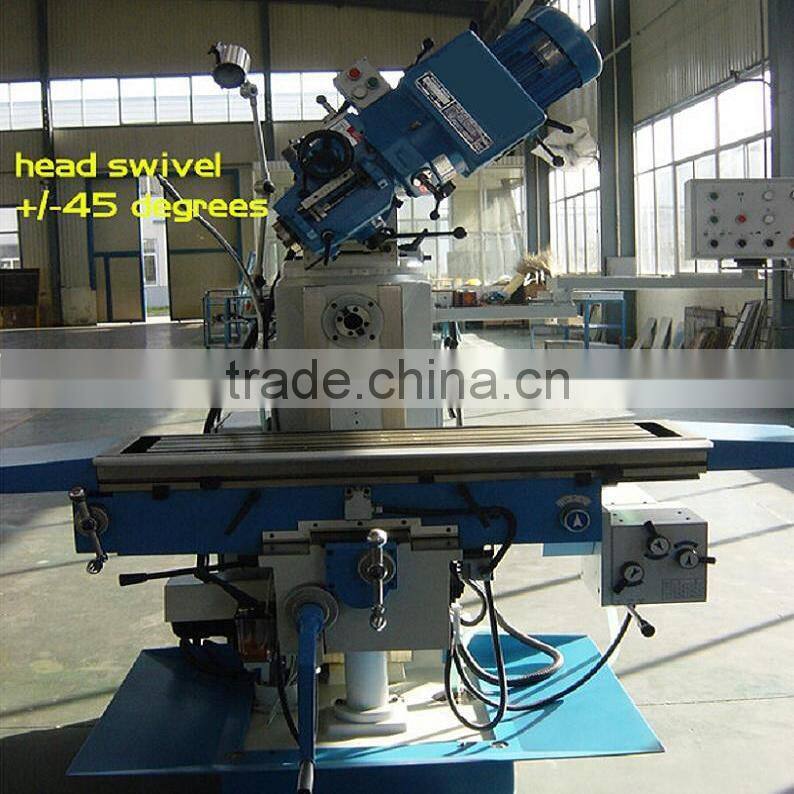

3.Spindle can swivel +/-45 degrees both left and right side
4.The spindle is belt drive with high speed.
5.The ram can move forward and backward, and swivel 180 degrees
Universal radial drilling machine specifications |
Unit |
X6332C |
Table size |
mm |
1270×320 |
Table travel |
mm |
780×300×380 |
Number/Width/Distance of T-slot |
|
5-14-70 |
Distance between spindle nose and table surface |
mm |
150-500 |
Distance between spindle axis and column surface |
mm |
150-550 |
Spindle travel |
mm |
127 |
Spindle taper(V/H) |
|
ISO40 |
Spindle speed range |
r.p.m |
70-3620(V)60-1350(H) |
Spindle motor power |
KW |
3.7(V)2.2(H) |
Overall dimension |
mm |
1720×1520×2225 |
Machine weight |
Kg |
1650 |
- Universal milling machine X6332C
- Drilling chuck
- Inner hexagon spanner
- Wedge shifter
- Taper sleeve
- Draw bar
- Spindle arbor
- Wrench
- Milling chuck
- Milling arbor
Optional accessories suit the universal milling machine

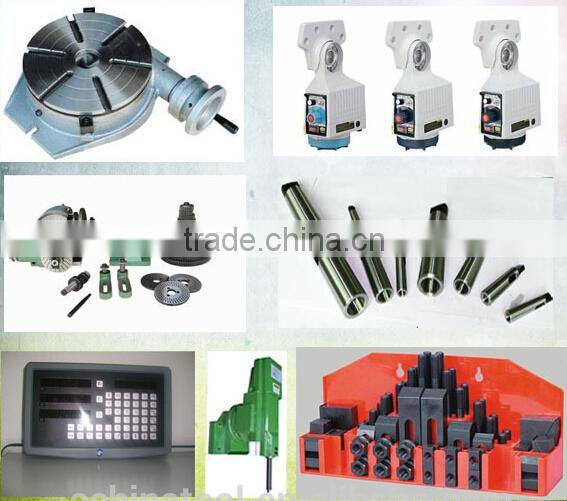

Optional accessories:Rotary table,power feed,dividing head,change sleeve,DRO,milling plug,clamp kit.
Machine: Universal radial milling machine X6332C
Type of package: Plywood case
Packing dimension: 162x162x225cm 1 set one case N.W./G.W.: 1770/1970KG
226 x165 x225cm 2 sets one case N.W./G.W.: 3540/3740KG
Suitable Container and quantity:
Standard 20' container: 3 sets
Standard 40' container: 6 sets
