Help CenterMax. Swing Over Bed 460mm C6246 Lathe, Lathe Machine Price
Related Products
-
Specifiactions of China C6246 Lathe Machine, Metal Cutting Machine ToolsUS$ 6,000 - 9,000MOQ: 1 Set -
High Performance C6246 Lathe Machine, China Machine, Metal Cutting Machinery LatheUS$ 6,000 - 9,000MOQ: 1 Set
-
Hot Sale China High Quality C6240ZX GH-1660ZX Lathe MachineUS$ 6,000 - 9,000MOQ: 1 Set
-
C6240ZX GH-1660ZX Lathe Machine, Metal Cutting Machine, Lathe Made in ChinaUS$ 6,000 - 9,000MOQ: 1 Set
-
Low Price High Quality C6240ZX Lathe Machine, China Machine ToolsUS$ 6,000 - 9,000MOQ: 1 Set

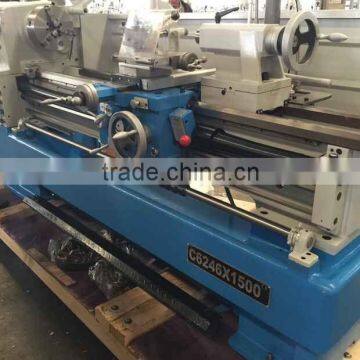

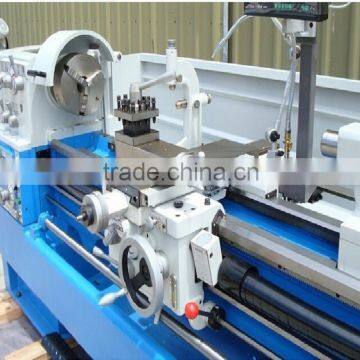

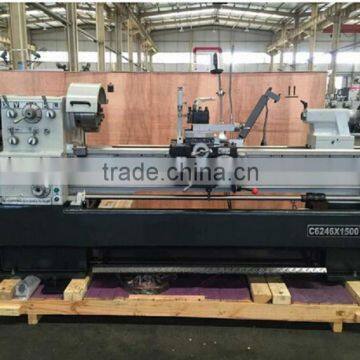

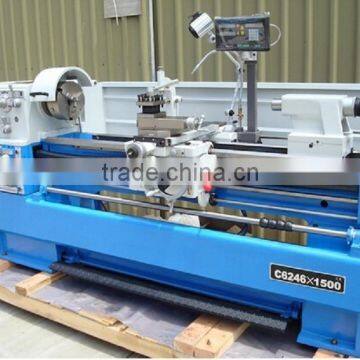

The spindle system with C6246 Chinese Metal Lathe Machine is high in rigidity and accuracy.The design of the main dribe is optimized and the gears in the headstock are precision ground.The noise of the Chinese metal lathe machine is low. There is no need for change gears. Even this Chinese Metal Lathe Machine is basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. Ingreasing the application area of this model significantly.
| Item/Model | C6246×1000 | C6246×1500 | C6246×2000 |
| Max.swing over bed | Φ460mm(18") | ||
| Max.swing over cross slide | Φ270mm(8 3/4") | ||
| Max. swing over gap | Φ690mm(27 1/8") | ||
| Length of gap | 165mm(6 1/2") | ||
| Max.length of workpiece | 1000mm(40") | 1500mm(60") | 2000mm(80') |
| Width of bed | 300mm(11 13/16") | ||
| Spindle nose | D1-6 | ||
| Spindle bore | Φ58mm(2-1/4") | ||
| Taper of spindle bore | M.T.#6 | ||
| Range of spindle speed | 12changes25-2000r/min | ||
| Max.travel of compound rest | 128mm(5") | ||
| Max.travel of cross slide | 285mm(11 1/4") | ||
| Leadscrew pitch | metric 6mm | ||
| Max.section of tool | 25mm×25mm(1×1") | ||
| Range of longitudinal feeds | 42kinds 0.031-1.7mm/rev (0.0011"-0.0633"/rev) | ||
| Range of cross feeds | 42kinds 0.014-0.784mm/rev (0.00033"-0.01837"/rev) | ||
| Metric threads range | 41kinds 0.1-14mm | ||
| Inch threads range | 60kinds 2-112 T.P.I. | ||
| Diametrical pitches range | 50kinds 4-112D.P. | ||
| Module piches rang | 34kinds 0.1-7 M.P. | ||
| Dia. of tailstock sleeve | 60mm(2 5/16") | ||
| Travel of tailstock sleeve | 120mm(4 3/4") | ||
| Morse taper of tailstock sleeve | M.T.#4 | ||
| Power of main motor | 5.5kw(7.5HP)3PH | ||
| Power of coolant pump | 0.1kw(8/1HP)3PH | ||
| Ovelall Dimension(LxWxH)cm | 220x108x137 | 275x108x137 | 325x108x137 |
| Net weight/Gross weight(kg) | 1645/1910 | 1810/2115 | 1965/2295 |
| Standard Accessories: | Optional Accessories: |
| 3 Jaw Chuck | Taper Turning Attachment |
| Change Gears Set | Live Center |
| Chasing Dial Indicator | Work Light |
| Reduction Sleeve | Leadscrew Guard |
| Dead Centers | Digital Readout |
| Full Length Splash Guard | Quick Change Tool Post |
| Coolant System | Chuck Guard |
| Brake System | Digital Readout(2 Axis) |
| 4 Jaw Chuck | Drill Chuck+Drill Arbor |
| Face Plate | |
| Steady Rest | |
| Follow Rest | |
| Tool Box&Tools |
Packaging & Shipping
Machine model: C6246 lathe machine

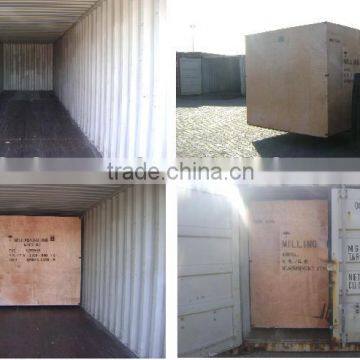

Packaging Details: wooden box for metal lathe.
Delivery Detail: 30 days after order of metal lathe confirmed
Delivery time: 30 days in usual
Payment terms: TT30% down payment, TT70% before the delivery date.
Port: Shanghai
C6246 lathe machine
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
