PZG Mixing Tank
Application:
1. Cosmetic and daily chemical product: Cosmetic cream, lotion, shampoo, detergent, health care product, gel, Laundry detergent, hand sanitizer, armpits lotion etc.
2. Pharmaceutical product: Ointment, Ice packs, injection liquid, penicillin etc
3. Food : Salad, mayonnaise, peanut butter, sesame butter, buttery, Animal fat, iced products, healthy food etc.
4. Beverage: Fruit Juice, Milk Juice etc.
5. Chemical: Paints, Pigments, dyes, photo solvents, Rubber and resin, pesticides, Shoe polish, general chemicals etc.

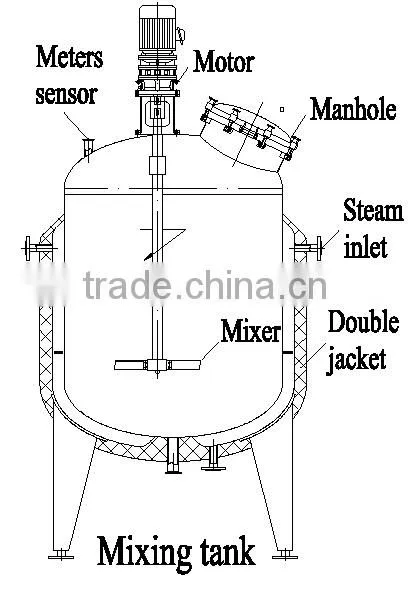

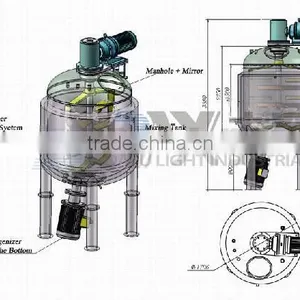

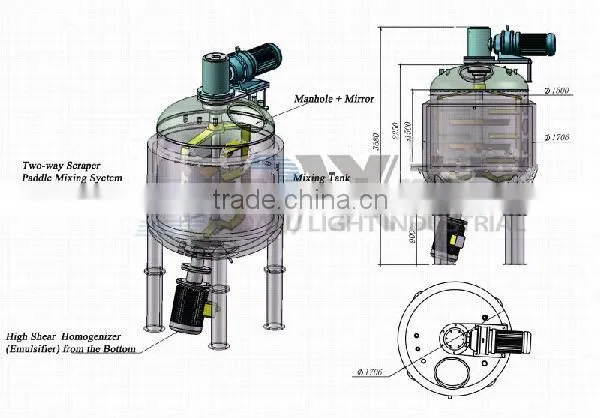

Structure Drawing:
Structure:
This mixing tank include tank, mixer, pipes, meters, valves, temperature control system, heating system, cooling system and control system
The detail requirement should be according to customer’ requirement.
Description:
This stainless steel mixing tank is used in the mixing, dispersing, dissolving, emulsification, dissolution, reaction, formulating, heating, cooling, warm-keeping, cultivating, disinfecting and storage etc. Different types of blades and relevant speed achieve the production condition. This mixing tank can be used with combination of flow meter, liquid level indicator, temperature sensor etc. functional accessories. Main shaft seal types: stuffing seal, mechanical seal, and magnetic seal. Jacket can be used to achieve heating preservation, cooling, heating etc.
Parameter:
Model |
30L |
50L |
100L |
200L |
500L |
1000L |
2000L |
3000L |
5000L |
10000L |
50000L |
Diameter mm |
300 |
300 |
400 |
500 |
700 |
900 |
1200 |
1300 |
1500 |
1800 |
3100 |
Height mm |
1600 |
1700 |
2000 |
2300 |
2600 |
3000 |
3800 |
4300 |
4500 |
5300 |
8000 |
Filling capacity |
65%-80% |
||||||||||
|
Inside Pressure Mpa |
-0.1---5 |
||||||||||
Jacket pressure Mpa |
-0.1---5 |
||||||||||
Cool method |
By jacket |
By pipe |
|||||||||
Mix speed rpm |
0--300 |
||||||||||
|
Motor Power kw |
0.55 |
0.55 |
0.75 |
1.1 |
1.5 |
2.2 |
3 |
4 |
5.5 |
13 |
55 |
Feature:
1. Suit for the process about formulating, dissolving, heating, cooling, warm-keeping, cultivating, disinfecting and storage. It is available online CIP cleaning ( only suitable for enclosed structure)
2. Designed in accordance with sanitary requirements, so the structural design is very user-friendly, easy to operate, healthy to store.
3. The inner surface is mirror-polished (roughness Ra≤0.4µm); the welding of all kinds of nozzles, endoscopic, manholes and the pot adopt stretch flanging process arc transition, easy to clean with no dead ends, ensure the reliability and stability in the production process.
4. T he main blending adopts stepless speed variation device, which can reduce the formation of bubbles when the temperature is low and the viscosity is high.
5. The gear pump circulating discharging device can accelerate the forming of products and realize rapid discharging.
1 How much liter of mixing tank do you need?
2 what this tank used for?
3 What way do you want to heat the mixing tank ? By steam or electric?
4 How much speed of the mixer do you need? Do you need Frequency speed? What is the exactly?
5 When do you need this mixing tank?
6 Do you need automatic control or manual control?
7 Do you need jacket or insulation layer not ?
User demands analysis
Engineering design
Product manufacturing
Automatic control integration
Certification service
Engineers are available to go abroad to help installatio
All the products before delivery should be tested by assemble & debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack.
The foot margin of equipment fixed tightly to make the machine can experience loading & uploading, the upward mark will be posted on the wooden case.
Our company is professional to manufacture and export pharmaceutical machine, food machine. Machines include:
Pharmaceutical machine:
Tablet press machine, blister packing machine, capsule filling machine, capsule / tablet counting production line, soft capsule making machine, mixing machine.
Liquid filling machine:
Vial filling machine, ampoule filing machine, wrapping machine, tube filling and sealing machine.
Food machine:
Jam, butter, chocolate packing machine, food tablet press machine and so on.
Export:
Machines have exported to South America, Europe, South-east Asia, and so on.
Welcome to contact with us.
