PYG Injection Mixing Tank
Application:
It applied to infusion, injection, eye drop, oral liquid, blood preparation, biology, fine chemical and fermentation industries.

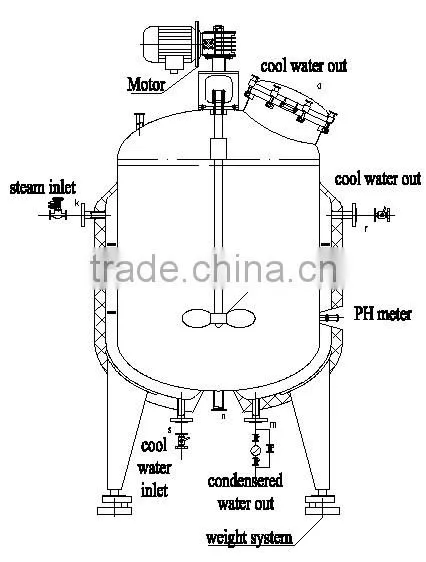

Structure Drawing:
Structure:
This injection tank include tank, mixer, pipes, pH meters,valves, temperature control system, heating system, cooling system and control system.
The detail requirement should be according to customer’ requirement.
Description:
This infusion tank can be used in pharmaceutical, biology industry, fermentation eye drop industry, different types of blades and relevant speed achieve the production condition. This mixing tank can be used with combination of flow meter, liquid level indicator, temperature sensor etc. functional accessories. Main shaft seal types: stuffing seal, mechanical seal, and magnetic seal. Jacket can be used to achieve heating preservation, cooling, heating etc.
Parameter:
Model |
30L |
50L |
100L |
200L |
500L |
1000L |
2000L |
3000L |
5000L |
10000L |
50000L |
Diameter mm |
300 |
300 |
400 |
500 |
700 |
900 |
1200 |
1300 |
1500 |
1800 |
3100 |
Height mm |
1600 |
1700 |
2000 |
2300 |
2600 |
3000 |
3800 |
4300 |
4500 |
5300 |
8000 |
Filling capacity |
65%-80% |
||||||||||
|
Inside Pressure Mpa |
-0.1---5 |
||||||||||
Jacket pressure Mpa |
-0.1---5 |
||||||||||
Cool method |
By jacket |
By pipe |
|||||||||
Mix speed rpm |
0--300 |
||||||||||
|
Motor Power kw |
0.55 |
0.55 |
0.75 |
1.1 |
1.5 |
2.2 |
3 |
4 |
5.5 |
13 |
55 |
Feature:
Material adopts SS316L or 304, inside surface roughness is Ra0.28-0.4μm, outside surface roughness is Ra0.4-0.6μm.
Impeller form: Propeller, anchor
Jacket form: Dimple jacket, full jacket or coil jacket.
Insulation material adopts rock wool, polyurethane or pearl cotton.
Components: Vent filter, sight glass, pressure gauge, manhole, cleaning ball, wheel, thermometer, liquid level gauge, and control system or according to clients specific requirement, such as load cell or other special requirement
Specification: 30L-200000L
top agitator: mechanical agitator, 10-71rpm
Zero hold up aseptic design of bottom outlet valve
Calibrated full view glass for the blending vessel
CIP and SIP style design of vessel, fittings and piping
Injection ports, injection needles available on the top of the lid
Volume monitoring by load cells
Process Automation
1 How much liter of mixing tank do you need?
2 What this tank used for?
3 What way do you want to heat the mixing tank ? By steam or electric?
4 How much speed of the mixer do you need? Do you need Frequency speed? What is the exactly?
5 When do you need this mixing tank?
6 Do you need automatic control or manual control?
7 Do you need jacket or insulation layer not ?
User demands analysis
Engineering design
Product manufacturing
Automatic control integration
Certification service
Engineers are available to go abroad to help installation
All the products before delivery should be tested by assemble & debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack.
The foot margin of equipment fixed tightly to make the machine can experience loading & uploading, the upward mark will be posted on the wooden case.
Our company is professional to manufacture and export pharmaceutical machine, food machine. Machines include:
Pharmaceutical machine:
Tablet press machine, blister packing machine, capsule filling machine, capsule / tablet counting production line, soft capsule making machine, mixing machine.
Liquid filling machine:
Vial filling machine, ampoule filing machine, wrapping machine, tube filling and sealing machine.
Food machine:
Jam, butter, chocolate packing machine, food tablet press machine and so on.
Export:
Machines have exported to South America, Europe, South-east Asia, and so on.
Welcome to contact with us.
