Application:
This herb extractor is suitable for extracting component from herbs (leaves, root, flower or seed)like licorice, stevia, senna and so on and other botanical.It also can realize the solvent recovery and the essential oil collection and it is especially suitable for hospital, pharmaceutical factory, scientific research etc.
Raw material show
Structure:

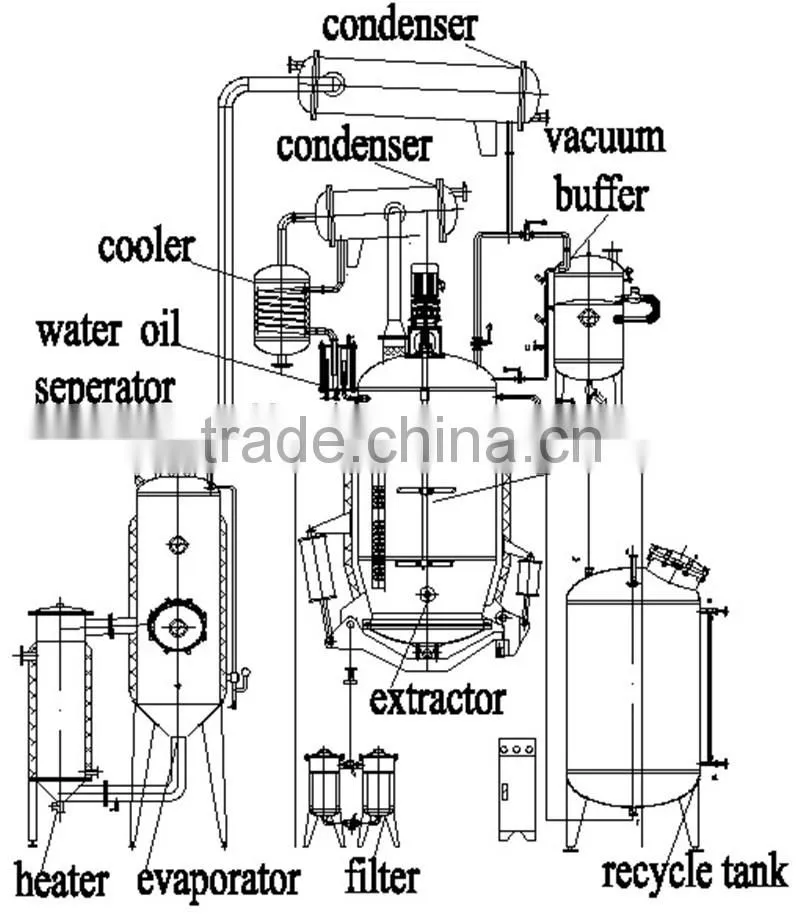

This herb extractor and evaporator include heater, evaporator, filter, recycle tank, extractor, condenser, cooler, pipes, valves, meters, water-oil separator, filter, vacuum pump, transfer pump and control box and so on.
Principle:
First you put the herb (leaves, root, flower or seed )into extractor, add water or other solvent( like alcohol) into extractor. Then heat the extractor, the component from herb will dissolved into water or solvent, after extraction, then pump the extracted liquid into the evaporator, evaporate the water or solvent( like alcohol) which will be cooled by condenser and flow to recycle tank , the solvent can be used again next time. the component in evaporator will became into cream or liquid which you need.
Character:
It is new type equipment at present, this equipment is specially suitable for medium pharmaceutical factory or big pharmaceutical factory, hospital, academe and so on.
2 save time: the extracting and concentration can be operated at the same time, so it save much time, before the concentration should be operated after extraction.
3 save energy: the steam from evaporator can heat the extractor directly so we can save 30% steam, so one year you can save money from steam which can buy one machine again.
4 the extraction or concentration can be operated under vacuum, if the herb is sensitive to high temperature, so it can be operated under vacuum, so the herb can not be burned by high temperature, second the solvent can be evaporating under lower temperature if the machine is working under vacuum, so it will save time and energy too.
5 all the machine have not dead corner, so it is good to clean and it is according GMP standard.
6 all surface of the machine is mirror polished, so it is looks very beautiful.
7 the temperature can be adjusted, you can adjust the temperature according to your requirement, for example you want to heat the machine 100degree, you just set the temperature 100degree, the heating can be stop when the temperature is 100degree, if it is lower 96degree, it can be heating again.
Parameter:
Model |
DTWZ-D-1 |
DTWZ-D-2 |
DTWZ-D-3 |
DTWZ-D-6 |
DTWZ-D-10 |
Pressure in tank (Mpa) |
<0.1 |
||||
Pressure in jacket (Mpa) |
<0.25 |
||||
Diameter of manhole (MM) |
400 |
400 |
400 |
450 |
550 |
Heat area |
6 |
10 |
12 |
30 |
50 |
Condenser area |
10 |
20 |
30 |
60 |
120 |
Volume m3 |
1 |
2 |
3 |
6 |
10 |
Evaporate capacity |
300 |
700 |
1000 |
2000 |
3000 |
Finished product show:
1 we can design the machine according to your requirement and we can design the process according to your technology process
2 we manufacture the machine according to GMP standard, all the machine welding will be tested by X ray testing.
3 we will pack the machine by film and then pack it by wooden box, load the machine to container by special engineer
4 engineer will install the machine according to your production room and design, test the machine
5 we will provide online service if you have any questions, you can send email and call us or send message by skype will give you suggestion
6 we can supply you parts in the future
1 How much liter of this machine do you need? We have 1000, 2000L,3000L,6000L, 10000L and so on
2 What is your raw material? Is it leaves, stem, Flower or root?
3 What last product do you want to get? Liquid? Cream or powder?
4 What material of the machine do you need? Stainless steel 304 or stainless steel 316, both are GMP requirement
5 When do you need this machine?
