Application:
This vacuum mixing homogenize is suitable for emulsification of the pharmaceutical. Cosmetic, fine chemical products, especially the material having high matrix viscosity and solid content. Such as cosmetic, cream, ointment, detergent, salad, sauce,lotion, shampoo, toothpaste and so on
Structure:

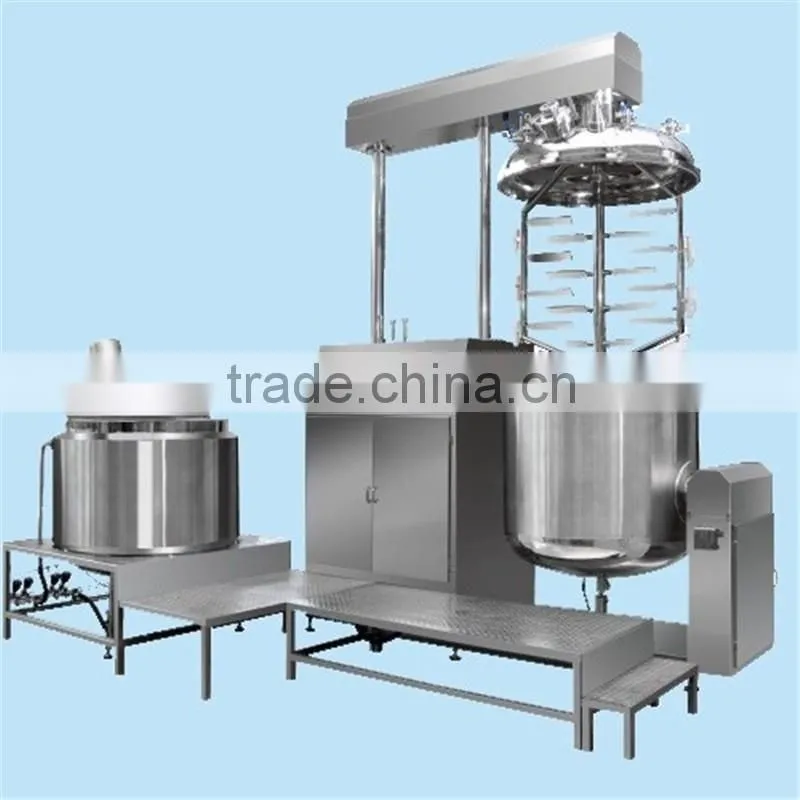

This Vacuum Emulsifying Mixer include emulsifying pot water pot, oil pot, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems and so on

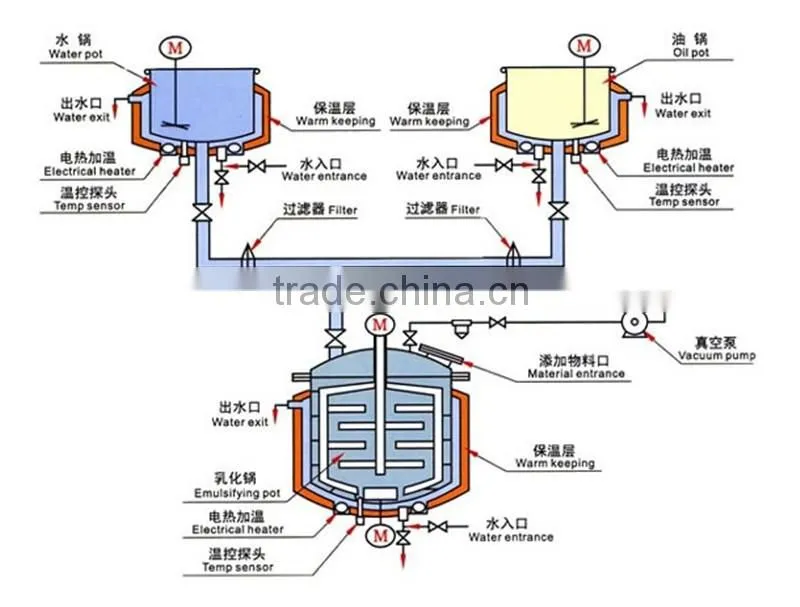

Principle:
First put the raw material which can dissolved into water into water pot, then heat it , and mix it
Second: put the raw material which can dissolved into oil to oil pot, heat it and mix it,
Then suck both of the raw material into main pot, to homogenize the two material by homogenizer
Feature:
The pot cover is automatic rising type. The material was directly drawn into the emulsifying boiler from oil boiler and water boiler based on a pipe that is under vacuum state. The discharge is based on turning the emulsifying boiler. And the heating system is electric heating and steam heating by the heating pipe, which the temperature is controlled automatically. Put the cool water into the intercalated bed so as to cool the material, simple and convenient (have a warm layer outside intercalated bed). The homogenizer and the blade stirring can together work and separate work. The material sliming, emulsification, mixing, dispersing etc. can be finished during short time. Contact position adopts high-quality stainless steel (medical use adopts 316L material, the interior surface is mirror polish, Vacuum agitating device is hygienically, it is made according to the normal hygiene standard of GMP and is the most idea production equipment.
Technical Parameters:
Model |
Volume |
Emulsify |
mixer |
Outside dimension |
|||||
Kw |
r/min |
Kw |
r/min |
L |
W |
H |
M H |
||
TZZRJ-30 |
30L |
1.5 |
0-3500 |
0.75 |
0-70 |
1500 |
800 |
1500 |
2050 |
TZZRJ-50 |
50L |
3 |
0-3500 |
0.75 |
0-70 |
2750 |
2100 |
1900 |
2600 |
TZZRJ-100 |
100L |
3 |
0-3500 |
1.5 |
0-70 |
2800 |
2150 |
2100 |
2800 |
TZZRJ-150 |
150L |
4 |
0-3500 |
1.5 |
0-70 |
2850 |
2150 |
2150 |
2900 |
TZZRJ-200 |
200L |
4 |
0-3500 |
1.5 |
0-70 |
3000 |
2200 |
2200 |
3100 |
TZZRJ-350 |
350L |
5.5 |
0-3500 |
2.2 |
0-70 |
3650 |
2650 |
2550 |
3600 |
TZZRJ-500 |
500L |
7.5 |
0-3500 |
2.2 |
0-50 |
3800 |
2800 |
2700 |
3950 |
TZZRJ-750 |
750L |
11 |
0-3500 |
3.7 |
0-50 |
3900 |
3900 |
2900 |
4400 |
TZZRJ-1000 |
1000L |
11 |
0-3500 |
3.7 |
0-50 |
3900 |
3400 |
3150 |
4550 |
TZZRJ-2000 |
2000L |
22 |
0-3500 |
7.5 |
0-50 |
4850 |
4300 |
3600 |
|
How much capacity do you need?
What way do you heat the machine by steam or electric ?
Do you need automatic one or manual one?
Do you need water and oil pot or not?
User demands analysis
Engineering design
Product manufacturing
Automatic control integration
Vertification service
Engineers are avaliable to go abroad to help installation.
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Our company is professional to manfuacture and export pharmaceutical machine, food machines. Machine include:
Pharmaceutical machine:
tablet press machine, blister packing machine, capsule filling machine, capsule/ tablet counting production line, soft capsule making machine, griding machine,mixing machine,
Liquid filling machine: vial filling machine, ampoule filing machine,
Cartoning machine, wrapping machine, tube filling and sealing machine.
Food machine:
Jam, butter, chocolate packing machine, food tablet press machine and so on.
Export :
Machine have exported to South America, Europe,South-east Asia, and so on. Welcome to contact with us.
