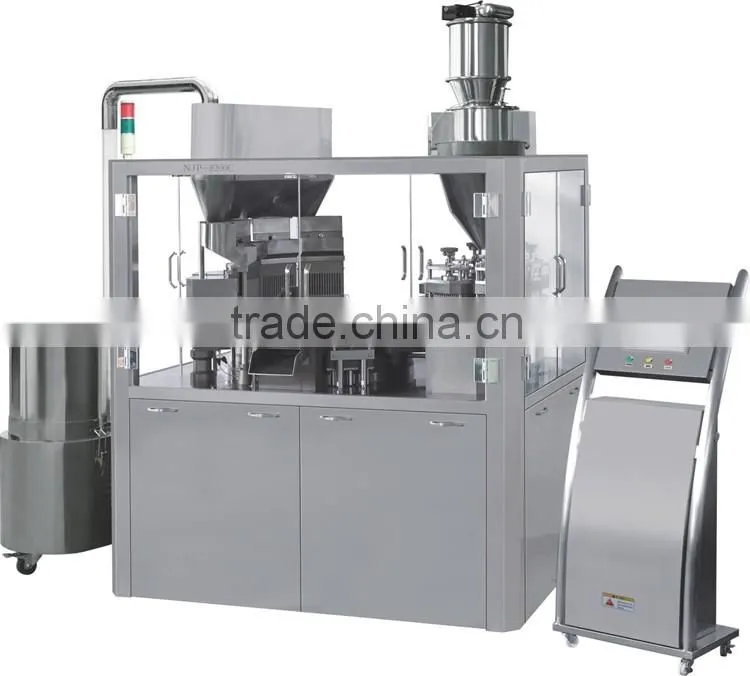

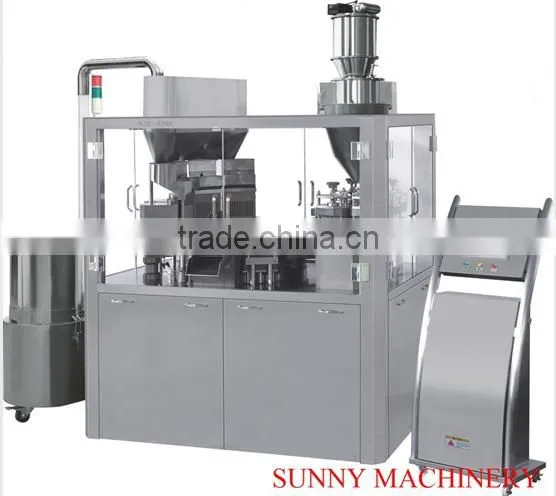

NJP-2-8200C Fully Automatic Capsule Filling Machine
Auto Capsule Filling Machine is used to fill powder in the form of slug in hard gelatin capsules.
These are high speed, a high performance machine that incorporates latest international design and is built with precision using most appropriate material and up to date manufacturing systems.
Different models are available for various output requirements.
It is designed to cater various formulations with option to fill powder, granules and pellets.
Its automatic filling demands very high accuracy besides high productivity, ease of operation and minimum maintenance.
This machine has been specifically designed to meet all these requirements.
The machine guarantees maximum quality in terms of filled accuracy and product safety at a very economical price.
NJP-2 series automatic capsule filling machine is a result of many years of experience in the field of capsule filling.
NJP-2-8200C is presently most productive capsule filling machine in the domestic.
Functional sequence:
1. Empty capsule loading and separation
2. Empty capsule loading and separation
3. Lower Module segment move down and outward
4. Powder or pellet filling
5. Reserve station
6. Removal of un-separated capsule
7. Lower module segment move back
8. Capsule locking
9. Discharge of filled capsule
10. Module segment cleaning
Features:
1. Tamping Mechanism enables capsules to be filled with a weight variation of 2 %.
2. Faulty capsule and filled capsule ejection stations with individual air controls.
3. Quick changeover for a variety of capsule sizes with minimal follow-up adjustments and maintenance requirements.
4. Closed system protect your product from contaminants, and allow a dust-free production environment for better health and easier cleaning
5. Adjustable gap between dosing disk and tamping plate ensures minimum spillage of powder.
6. Unit goes with touch panel, control by PLC.
7. All contact parts of medical powders are made from a corrosion resistant stainless steel 316.
8. Automatic vacuum removal of the air in the dosing tube to give more accurate weight of the filled capsules.
9. Add the extra function of capsule control switch to Control the capsule outside of the machine that makes more safety.
10. Click-moving control system, make and easier operation and clearness.
Safety System:
Machine stops automatically in the event of following problems through safety interlock system.
• No capsules
• No powder
• Door in open condition
• Air pressure low
Parameter | |
Model |
NJP-8200C |
Max.Capacity |
492000 capsules/hr |
No. of segment bores |
58 |
Machine weight |
2200kg |
Machine Dimension |
1880*1390*2200mm |
Power supply |
380V, 50 HZ (For customer to designate) |
Total power |
14kw |
Vacuum |
-0.02~0.06Mpa |
Dust |
24.5Kpa 210m3/h |
Noise |
< 80DB (A) |
Filling percentage |
Empty capsule 99.9% |
Capsule size |
00#-5# |
Filling |
± 3%-± 4% |
suitable for filling |
powder ,granule ,pellet , mini tablet |
User demands analysis
Engineering design
Product manufacturing
Automatic control integration
Certification service
Engineers are available to go abroad to help installation
Packaging & Shipping:
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Our company is professional to manufacture and export capsule filling machine.
