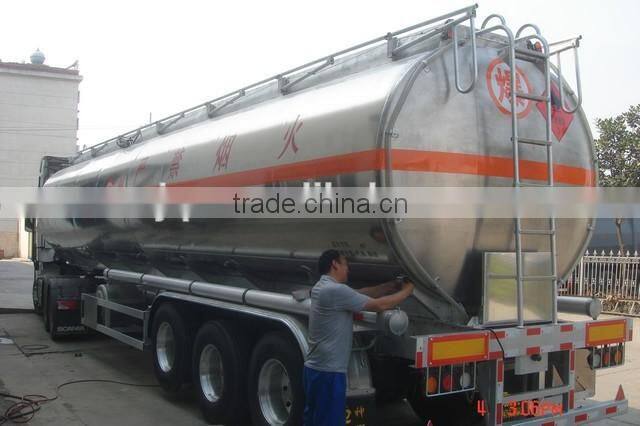

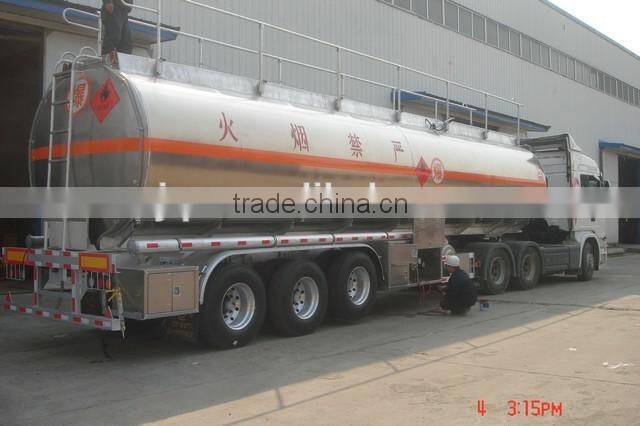

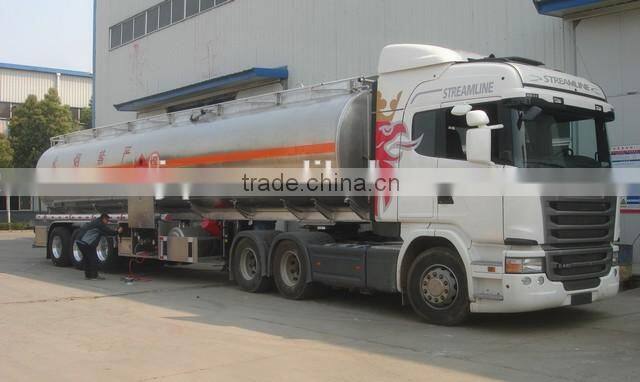

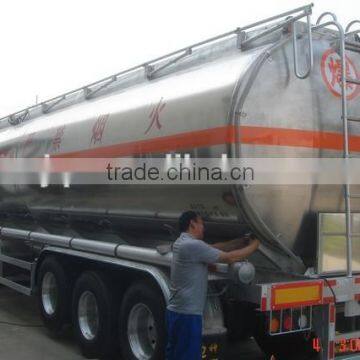

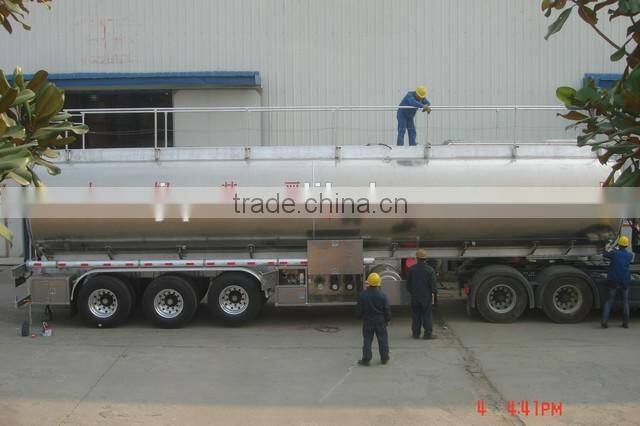

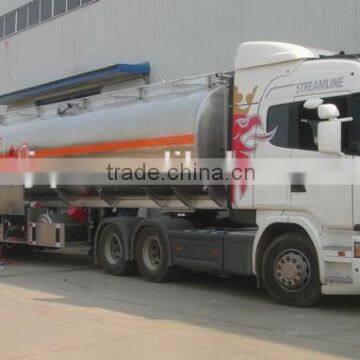

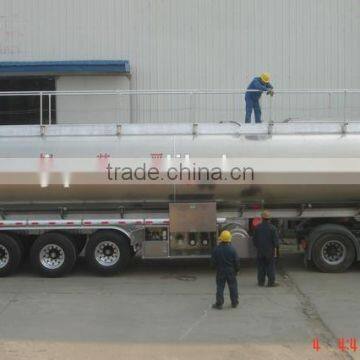

Fuel Tank Truck 45000-60000Liters Fuel Tank

US$ 19,355 - 22,581 MOQ: 1 Set

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

CLW

Model Number:

CLW9402GYY

Hubei Changjie Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW9402GYY

Gross Vehicle Weight 40000

Product Features

(1) Fuel tanker truck is mainly used for all kinds of oil. chemical liquid transportation of petrochemical sector;

with oil-pumping, separation variety of oil. separation packing of oil.

(2) The material of tank used by highquality carbon steel, manufactured in accordance with international

standards, the appearance can be ellipse or cylindrical

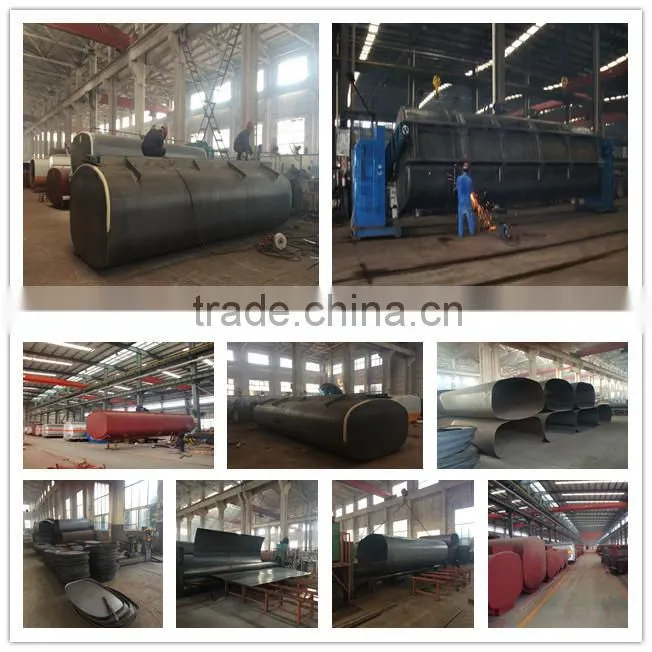

(3) The tank used advanced butt welding technology, using high pressure gas leak detection after finished

the tanks. so that the tanks has the characteristics of high strength, stable, safe, etc.

(4) Alcohol, chemical tankers products by south Korean imports of stainless steel. thickness can be:4mm

5mm 6mm 8mm.

(5) All tankers of sulphuric acid, hydrochloric acid, alkali liquor are using rotomolding by once. thickness

can be 12mm16mm.after welding the tanks using shot peening process, achieved rust. painting used

advanced paint technology, beautiful appearance and long life.

(6) According to the use of tankers, can choose centrifugal pumps, copper gear pumps, stainless steel

pumps ,it has big flowfast speed of suction and some other characteristics. also can choose other models

of suction pumps.

(7) We can product the tank according to customer’s requirements, also can product different

(8) series of heating tankers and insulation tankers

(9) The measure of fuel tank truck can use single count double count back to zero

(10) methods, or choose truck tax control by computer methods ,cooking oil count can

Technical Parameters

Basic information:

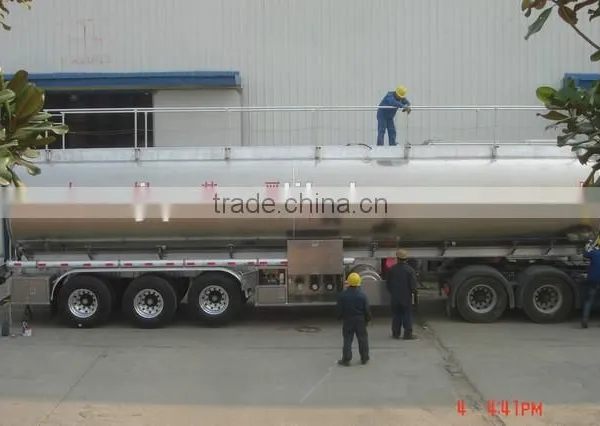

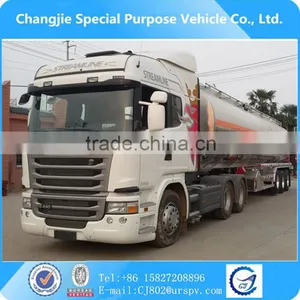

Product Name		fuel tank semi trailer
Product Model		CLW9402GYY
Actual capacity		43-50m3
Gross weight		39990kgs
Kerb weight		11590kgs
Rated load		28400kgs
Overall size		1298025003900mm
Number of axles		3
Number of tyres		12
Wheelbase		7200+1310+1310mm
Front trend		-/1840/1840/1840
Rear trend		1840/1840/1840
Approaching/departure angle		-/16(°)
Front/Rear suspension		-/1840
Number of leaf spring		-/8/8/8
Tyre specification		11.00-20 12PR
Axle loading		-/23960
Special configuration
standard configuration		single chamber,two european standard tank mouth,a pneumatic bottom valve,Fuhua axle 13ton,brake pad 16ton,one tool box,water tank 500L,2 spare tyre rack,landing leg 28ton,90# traction pin,12.00 tubeless tyre,with 2-axle ABS,DN80 flow vavle on each side of the trailer with box but without pump,one access ladder,two fire extinguishers
