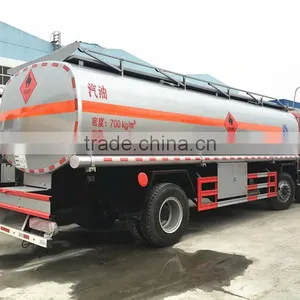

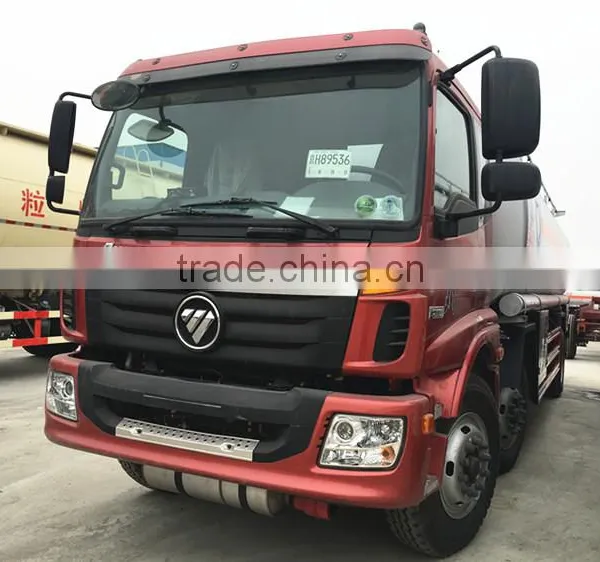

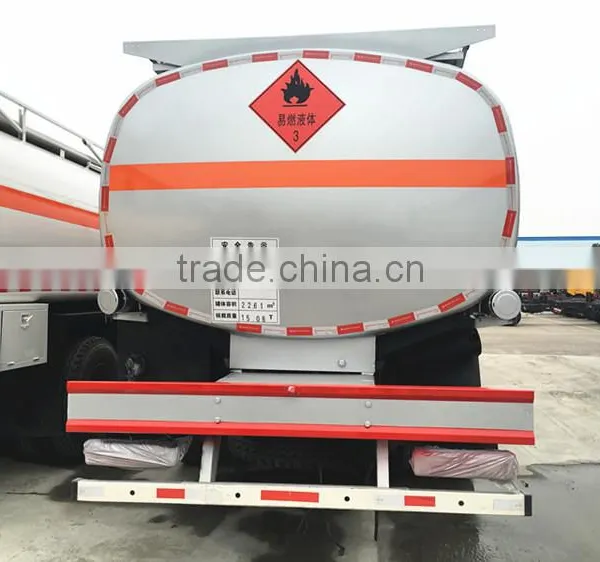

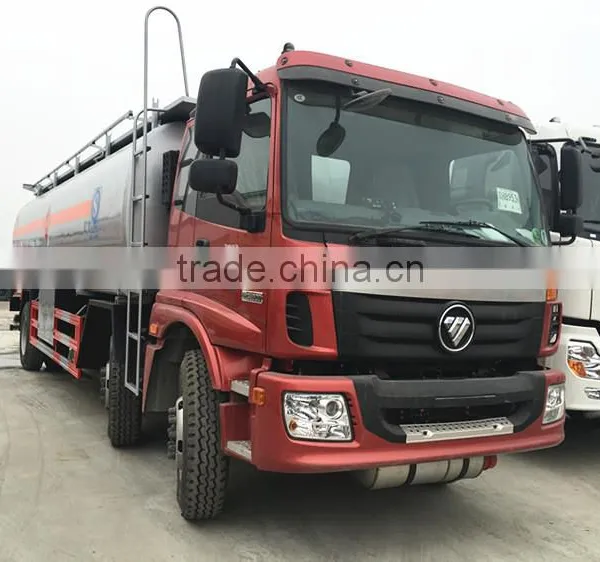

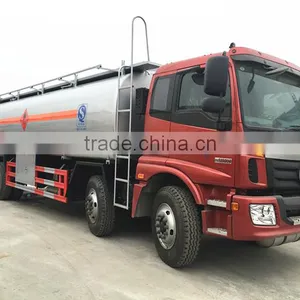

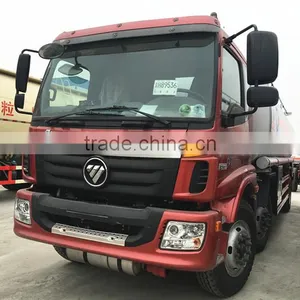

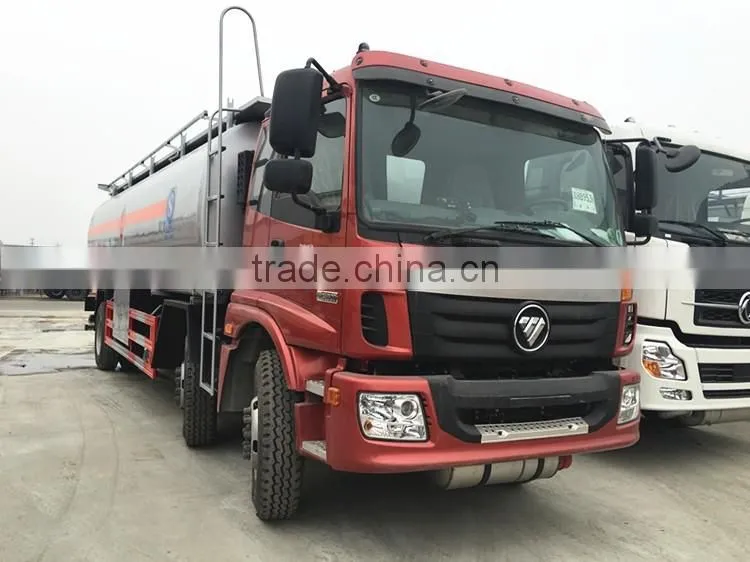

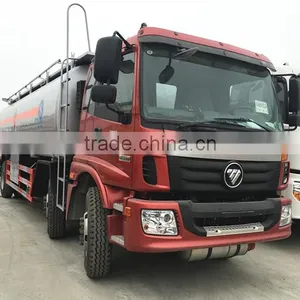

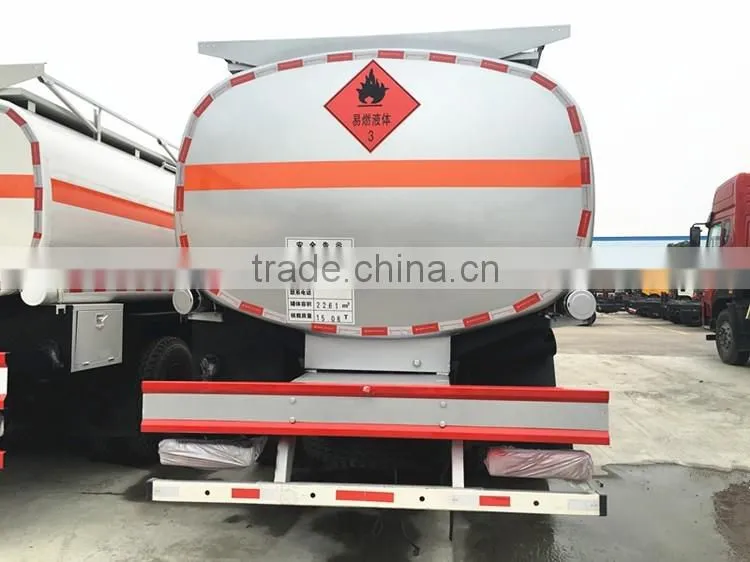

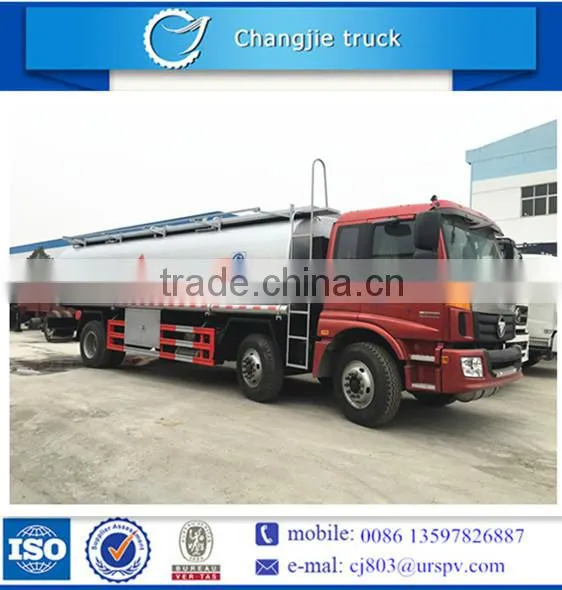

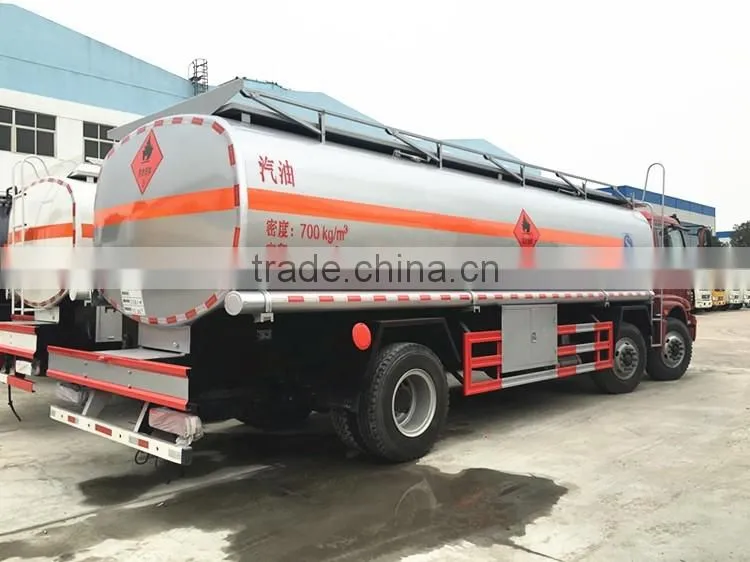

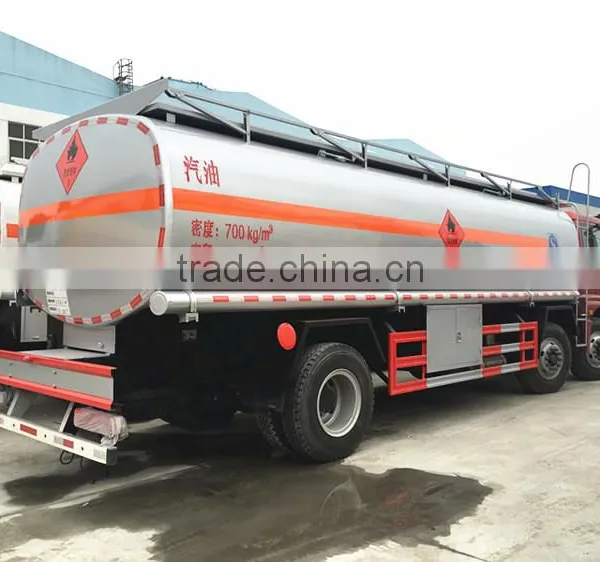

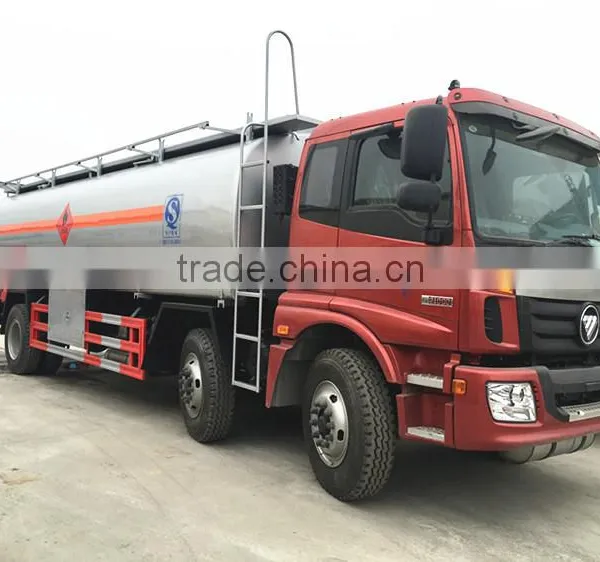

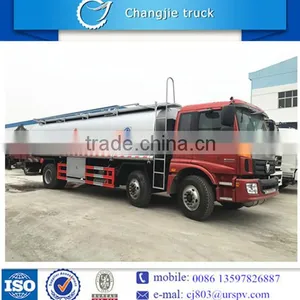

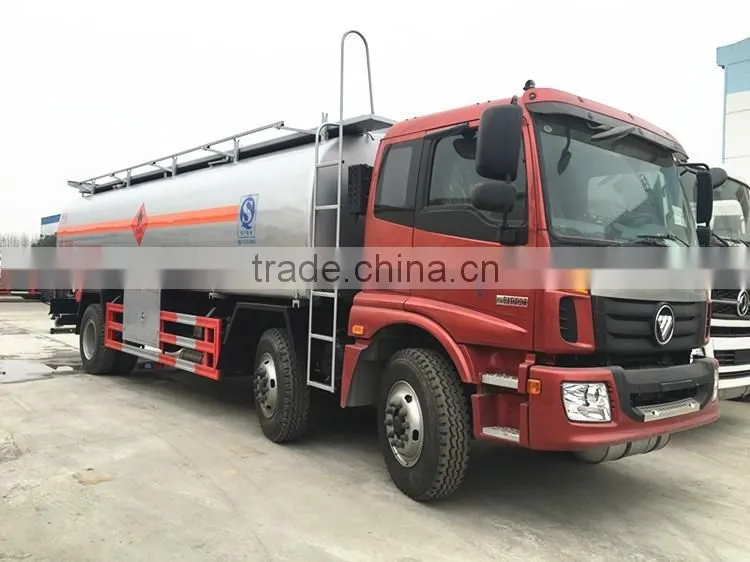

| 6x2 28000L fuel tanker truck,fuel tanker prices,oil tank truck |
Our company is a professional FUEL TRUCK manufacturer for more than 10 years
we can provide fuel transportation truck from 3m3 to 42m3
We also provide FUEL semi trailer from 30000L to 60000L
Product features
1. Applied carbon steel sheet Q235-A;stainless steel;aluminium alloy that in accordance with the
international standard. Thickness is 5-10mm.
2. Tank shape,such as round,round square,elliptic
3. Apply the famous pump,such as self-priming pump,gear pump,chemical pump,stainless steel pump
4.The main parts implements automatic welding,while the accessories apply carbon dioxide welding
to ensure the tank in good performance.
5. Sub crossbeam apply rectangle steel sheet that thickness more than 5mm,stick out in one time.
6. Fire extinguisher replaced on the back of the truck for the emergency.
7. Painting using sand blasting to clean rust to hold more tolerance and coherence,can make sure the
tank in good situation more than 5 years.
8.According to customer’s requirements:
> The pump can be designed to pump in and out throw meter,or not through meter,self-flow through
or not through meter.
> The tank can be designed as a single compartment or several compartments.
> You can choose to install heating pipes, insulation layer.The Insulation material is generally 50-100
mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate.The
cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic,1.2mm cold carbon steel,
1.00mm stainless steel sub-mirror or matter board.
> At the end or side of tank, it can be installed 1-3 self-flow valve.
> You can chosse the type of the inlet and outlet (European standard or normal standard).
>Main accessories for your Option:
Flow meter /gallon meter,oil pump,reel hose,independent compartments,aluminum alloy manhole,
stainless steel manhole,European standard aluminum alloy pneumatic bottom valve,API connectors,
Pneumatic swift combination,anti-flow system,vapor recovery system,liquid level detector
Key parts:
| Product Name | Foton Auman 6x2 fuel tanker truck | |
| Product Model | Foton | |
| Tank Volume | 28000Liters | |
| Tank Size |
7400*2450*1800mm (length*long axis*minor axis) |
|
| Main parameters | Overall size(L*W*H) | 10350*2490*3350mm |
| Gross weight | 25000kgs | |
| Rated capacity | 16700kgs | |
| Curb weight | 8105kgs | |
| Front/Rear suspension | 1365/2325mm | |
| Max.speed | 79km/h | |
| Chassis | Chassis Brand | Foton |
| Chassis model | BJ5253GYY-XA | |
| Drive type | 6*2 | |
| Fuel Type | Diesel | |
| Tire Specification | 10.00R20 18PR,11.00-20,11.00R20,12R22.5 | |
| Tire No. | 8 | |
| Wheelbase | 1860+4800mm | |
| Alex No. | 3 | |
| Leaf Spring No. | 10/10/10+9 | |
| Front trend | 1890/1890mm | |
| Rear trend | 1847mm | |
| Engine | Manufacturer | Dongfeng Engine |
| Model | ISDe210 40 | |
| Horse Power | 210HP | |
| Displacement/Power | 6700ml/155kw | |
| Emission standard | Euro 4 | |
Strict quality control:
Excellent Pre-sale Service
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price,our engineers will draw a Official Drawing
for you confirm.
3. After our Finance Department confirmed your deposit or Irrevocable L/C, we will start
manufacture the products for you.
4. Update the progress of production to you in time,to help you know your order details progress.
5. After the product manufacture finished, if you need, we will arrange shipping for you.With our professional skill, you just need to pick your products up at the destination place, and don’t need
to worry about the shipping at all.
Outstanding After-sale Service
1. If you have any questions when you use our products, please tell us, we will help you solve the
problems in time.
2. If any spare parts have problem after you used it, we can provide it for you, help you solve the
problem if anything affect your business.
3. We can also provide engineer to your local place if you need. You just need to bear the Airplane
ticket, and accommodation cost.
4. Other relevant service you request.
1. 12 months guarantee term.
2. Small order accepted.
3. Professional technic support.
4. After-sale service.
5. Suit your needs excellence by design.
