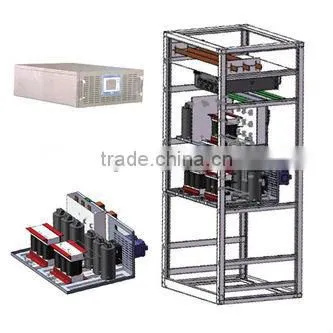

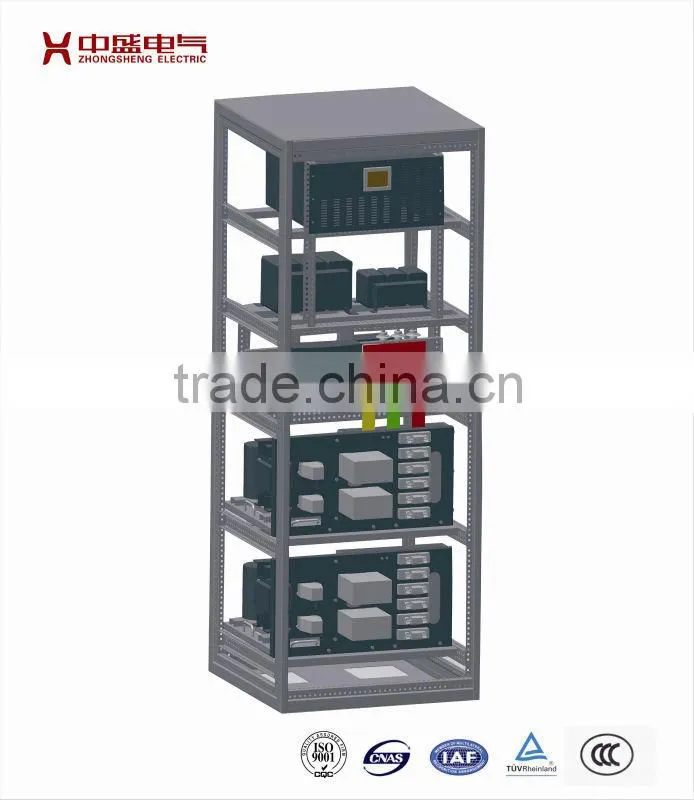

SMVG series modular mixture reactive power compensation electrical distribution box
Specification:
Our SMVG series device is applied in impact load low electric distribution system such as welding machine, rolling mill,
internal mixer, hoister. Generally speaking, this kind of system has the characteristics of huge load fluctuation, strong
impact, serious harmonic pollution, voltage fluctuation, three phase unbalance. So general reactive power dynamic
compensation device can’t satisfy the need of quick fluctuation, but our SMVG device can solve these problems.
Operating Environment:
a. The ambient temperature upper limit and lower limit are respectively +40°C and -10°C;
b. Altitude is not more than 1000m(if it exceeds 1000m, we will choose plateau style);
c. Relative humidity: daily average value should not be more than 85%, while monthly average value should not be more than 90% ;
d. Seismic intensity should be not more than 5°;
e. Places without fire, explosion risk, serious pollution, chemical corrosion and violent vibration.
Executive standard:
GB/T15776-2008
GB7251.1-2005
Technical parameter:
Model |
Rated capacity(kVar) |
External dimension(mm) |
Remark |
||
W |
D |
H |
|||
SMVG-300/ |
300 |
800 |
800 |
2200 |
Standard configuration |
SMVG-600/ |
600 |
1600 |
800 |
2200 |
Standard configuration |
SMVG-900/ |
900 |
2400 |
800 |
2200 |
Standard configuration |
Certificates:
Welcome to visit our factory!
Any query and question please be free to contact with us.
It’s our great pleasure to help you.
