Magnetic Control Reactor Static Var Compensator (MCR-SVC)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Zhongsheng
Model Number:
SMSVC
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Active Filter for 400VAC 50Hz 500AUS$ 40,000 - 45,000MOQ: 1 Set -
SVC / Static Var CompensatorNegotiableMOQ: 1 Set
-
STBB Series Electric Power Saving EquipmentNegotiableMOQ: 1 Set
-
SSVG Series HV Static Reactive Power Compensation (STATCOM)NegotiableMOQ: 1 Piece
-
SAPF Series Harmonic Filtering Electric DeviceNegotiableMOQ: 1 Piece
Place of Origin
Hebei, China
Brand Name
Zhongsheng
Model Number
SMSVC
Product Description
| Product Name | Magnetic control reactor static var compensator (MCR-SVC) | |||
| Rated Voltage: 6KV | ||||
| Model No. | Rated Capacity (Kvar) | Rated Current (A) | Rated Reactance ( Ω ) | Net Weight (KG) |
| BKSMC-600/6 | 600 | 55 | 198.5 | 3060 |
| BKSMC-800/6 | 800 | 73.3 | 148.8 | 3850 |
| BKSMC-1000/6 | 1000 | 91.6 | 119.1 | 4950 |
| BKSMC-1200/6 | 1200 | 110 | 99.2 | 5500 |
| BKSMC-1500/6 | 1500 | 137.5 | 79.4 | 5760 |
| BKSMC-1800/6 | 1800 | 165 | 66.2 | 6400 |
| BKSMC-2100/6 | 2100 | 192.5 | 56.7 | 7400 |
| BKSMC-2400/6 | 2400 | 220 | 49.6 | 8950 |
| BKSMC-3000/6 | 3000 | 275 | 38.7 | 9800 |
| BKSMC-3500/6 | 3500 | 321 | 34 | 12600 |
| BKSMC-4000/6 | 4000 | 366.6 | 29.8 | 14400 |
| BKSMC-4500/6 | 4500 | 412.4 | 26.5 | 15800 |
| BKSMC-5000/6 | 5000 | 458.2 | 23.8 | 17500 |
| BKSMC-6300/6 | 6300 | 550 | 19.8 | 19600 |
| BKSMC-8000/6 | 8000 | 773.1 | 14.9 | 21600 |
| Features | ||||
| 1. Reliable and long-lasting as solid rock. | ||||
| 2. Improved damping of voltage oscillation. | ||||
| 3. Smaller distortion of network voltage main harmonic. | ||||
| 4. 100% overload up to 30 seconds. | ||||
| 5. 40% overload up to 20 minutes. | ||||
| 6. Non-intertial boosting within one network voltage period. | ||||
| 7. Internal power losses at rated voltage of only about 0.5% rated power. | ||||
| 8. Simple (transformer-like) maintenance. | ||||
| 9. Equipment costs about 50% of TCRs. | ||||
| 10. Coolant is non-toxic (no PCBs). | ||||
| Product Structure | ||||
| Magnetic control reactor static var compensator (MCR-SVC) consists of magnetic control reactor, controller, capacitor (C) or filter functions to install reactor container and hollow electric reactor to form filter compensator bank(FC). The core technology is the magnetic control reactor (MCR) and it is the ideal static reactive compensation, voltage adjustment and harmonic management equipments in high voltage and ultra high voltage grids. | ||||

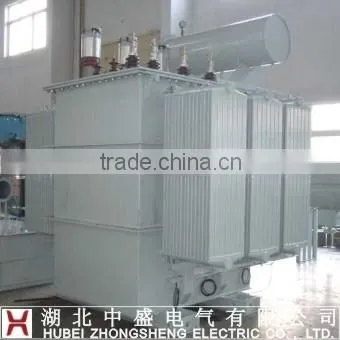

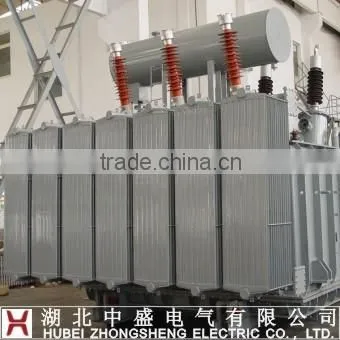

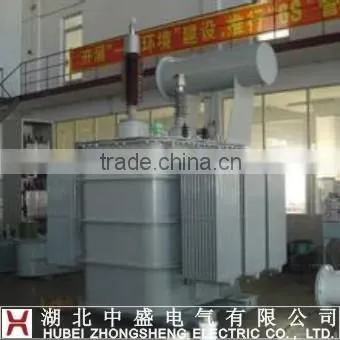

Picture of product
