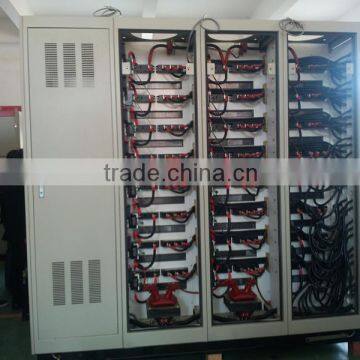

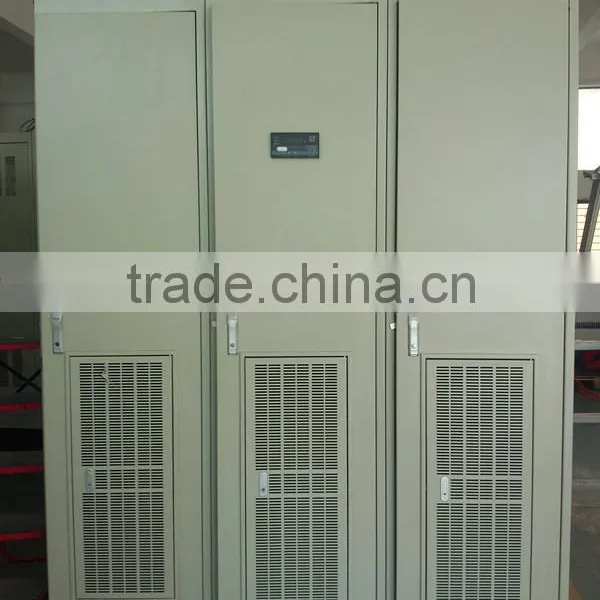

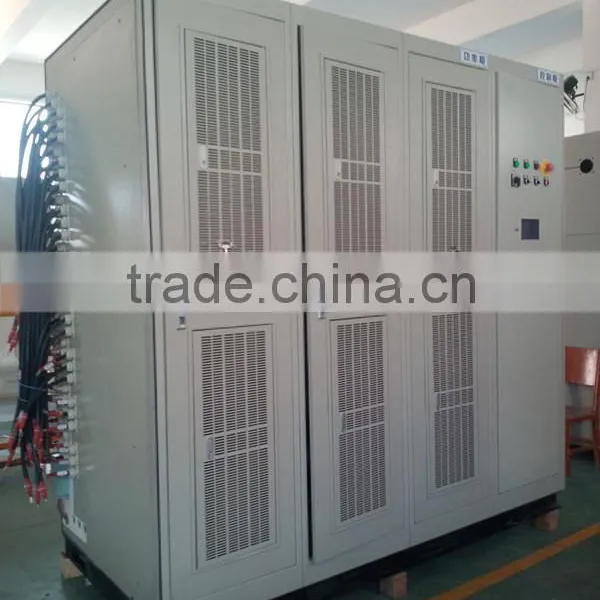

SGQ soft starter for air compressor 500kw motor soft starter
Specification:
SGQ series solid soft starter control the output voltage by controlling the thyristor, meeting different
current and voltage requirement during the motor starting process. When the motor starts, SGQ
series device will increase terminal voltage according to preestablished starting curve, thus the impact
of power system, motor or other electrical devices reduced. This device is widely used in various kinds of motor.
Characteristics:
Starting time: can be set (0-100 seconds);
Initial voltage: can be set(20-70% of rated voltage);
Rated voltage: according to motor power;
Starting method: voltage slope, constant-current control, constant-time starting;
Constant current ratio: starting current can be set when motor starts.
Standard adopted:
GB/T3859.1-1993
GB/T3859.2-1993
GB/T13422-1992
Technical parameter:
10KV high voltage solid soft starter
Model |
Adaptive power(kW) |
External dimension(mm) |
Remark |
||
W |
D |
H |
|||
SGQH- 500/10 |
≤ 500 |
1000 |
1500 |
2300 |
One cabinet |
SGQH- 1000/10 |
≤ 1000 |
1000 |
1500 |
2300 |
One cabinet |
SGQH- 1500/10 |
≤ 1500 |
1000 |
1500 |
2300 |
One cabinet |
SGQH- 2000/10 |
≤ 2000 |
1000 |
1500 |
2300 |
One cabinet |
SGQH- 3000/10 |
≤ 3000 |
1400 |
1600 |
2300 |
One cabinet |
SGQH- 4000/10 |
≤ 4000 |
1400 |
1600 |
2300 |
One cabinet |
SGQH- 5000/10 |
≤ 5000 |
1400 |
1600 |
2300 |
One cabinet |
SGQH- 6000/10 |
≤ 6000 |
1400 |
1600 |
2300 |
One cabinet |
SGQH- 7000/10 |
≤ 7000 |
1600 |
1600 |
2300 |
One cabinet |
SGQH- 8000/10 |
≤ 8000 |
1600 |
1600 |
2300 |
One cabinet |
SGQH- 9000/10 |
≤ 9000 |
1600 |
1600 |
2300 |
One cabinet |
SGQH-10000/10 |
≤10000 |
1600 |
1600 |
2300 |
One cabinet |
SGQH- /10 |
>10000 |
Special design |
|
||
6KV high voltage solid soft starter
Model |
Adaptive power(kW) |
External dimension(mm) |
Remark |
||
W |
D |
H |
|||
SGQH- 500/6 |
≤ 500 |
1000 |
1500 |
2300 |
One cabinet |
SGQH- 1000/6 |
≤ 1000 |
1000 |
1500 |
2300 |
One cabinet |
SGQH- 1500/6 |
≤ 1500 |
1400 |
1600 |
2300 |
One cabinet |
SGQH- 2000/6 |
≤ 2000 |
1400 |
1600 |
2300 |
One cabinet |
SGQH- 3000/6 |
≤ 3000 |
1400 |
1600 |
2300 |
One cabinet |
SGQH- 4000/6 |
≤ 4000 |
1600 |
1600 |
2300 |
One cabinet |
SGQH- 5000/6 |
≤ 5000 |
1600 |
1600 |
2300 |
One cabinet |
0.4KV low voltage solid soft starter
Model |
Adaptive power(kW) |
External dimension(mm) |
Remark |
||
W |
D |
H |
|||
SGQL- /0.4 |
55 ~ 315 |
600 |
600 |
1800 |
One cabinet |
SGQL- /0.4 |
400 ~ 630 |
800 |
800 |
2000 |
One cabinet |
Order notice:
You’d better provide motor model, rated power, rated voltage, rated current, load type when you
want to order this device. If you have any query, please be free to let us know.
1 Reply your enquiry in 24 working hours.
2 Experienced staffs answer all your questions in professional and fluent English.
3 Customized design is available. OEM&ODM are welcome.
4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.
5 Special discount and protection of sales area provided to your distributor.
6 Do the best electric cabinet in China.
1,Part of International Typical projects we joined and customers!

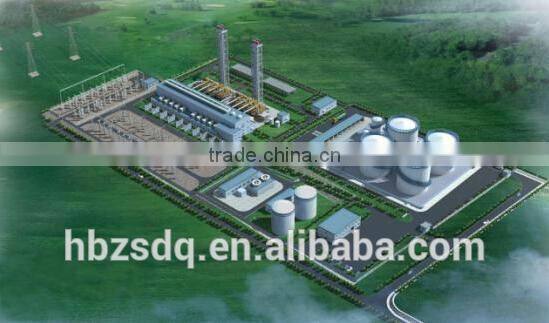

Kenya Athi River 81MW Heavy Oil Power Plant
Congo Liouesso Hydropower Project
Guinea Keller tower Hydropower Project (Fria Transformer Substation)
Masteel (Kuala Lumpur) Co., Ltd
Kounrad Copper Company LLP
PGS Jakarta Indonesia
Indonesia Surabaya Mast Steel Group
Thailand New Technology Source Steel Factory
VALIADIS S.A
Hunan Erkang Medicine (Cambodia) Co.,Ltd
The Bengal Electric Ltd
Congo Liouesso Hydropower Project
Kenya Athi River 81MW Heavy Oil Power Plant
Location: Xiangyang, China(Mainland)
Year Established: 2008
Registration No: 420600000118942
Company Certifications: ISO 9001; ISO14001; OHSAS 18001; CCC; IEC; TUV
Main products: Power quality cabinets; Motor control cabinets; Switchgear complete sets

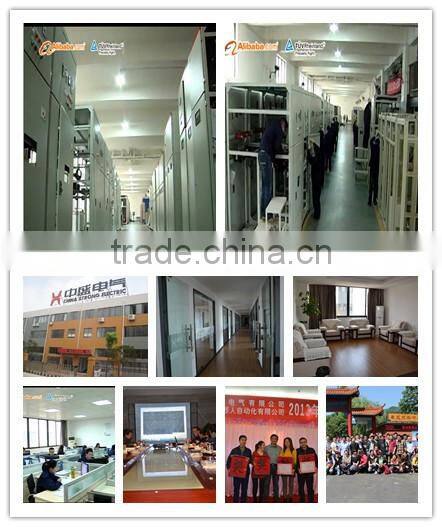

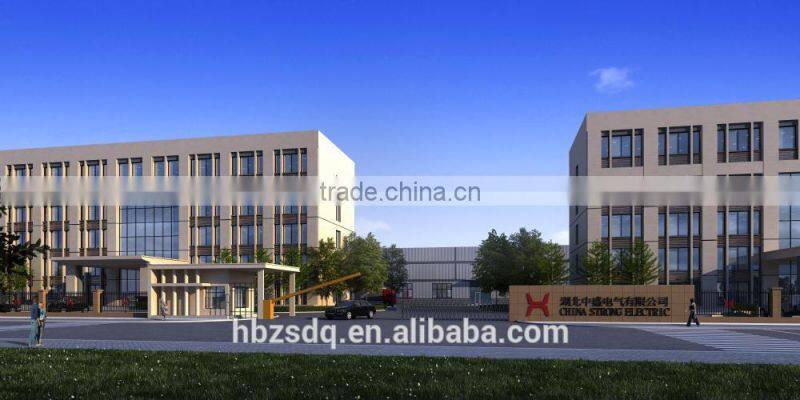

3,Our company view

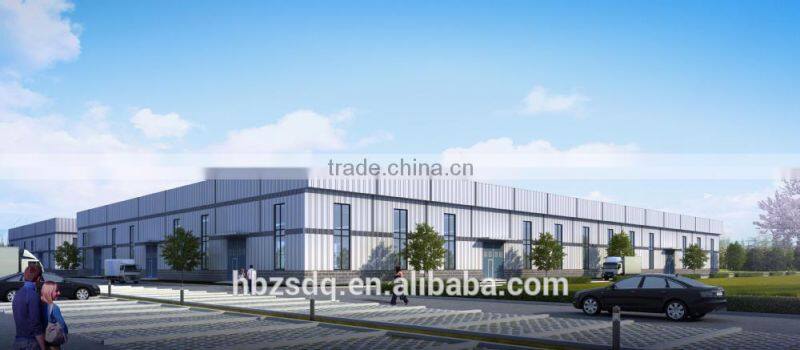

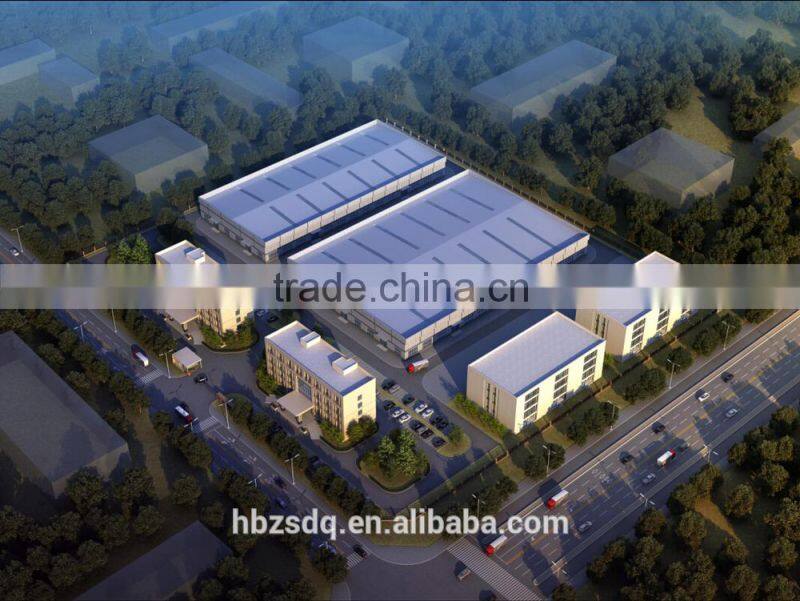

Our new factory is building!
Hubei Zhongsheng Electric Co., Ltd
Add: No.38 Building of Jiahai Industrial Park , High-tech Zone, Xiangyang City ,Hubei Province.
