13.8KV Switchgear
US$ 28,000 - 28,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
Zhongsheng
Model Number:
KYN28-13.8
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hubei, China
Brand Name
Zhongsheng
Model Number
KYN28-13.8
Product Description
| Product name | 13.8KV switchgear |
| Rated voltage | 13.8KV |
| Rated current | 3000A |
| Rated frequency | 60Hz |
| Rated lightning impluse withstand voltage | 75KV |
| Rated short-time working frequency withstand voltage | 42KV |
| Rated short-time working frequency withstand current | 40KA |
| Rated short circuit withstand time | 4S |
| Enclosure rating | NEMA12 |
| Exported to | Venezuela |
| Bill of materials | |||
| No. | Material name | Specification | Qty |
| 1 | High voltage vacuum circuit breaker | HVX 17.5-31-31-E | 1 pc |
| 2 | Current transformer | LZZBJ9-13.8 | 2 pcs |
| 3 | Voltage transformer | JDZ-13.8 | 2 pcs |
| 4 | Zero sequence current transformer | LJ-Φ100 |
1 pc |
| 5 | High voltage fuse | XRNP | 3 pcs |
| 6 | Lightning arrester | HY5WS-26/72 | 3 pcs |
| 7 | Earthing switch | JN15-20 | 1 pc |
| 8 | High voltage charging display | DXN | 1 pc |
| 9 | High voltage charging sensor | CG1 | 3 pcs |
| 10 | Temperature and humidity controller | DYC-195A | 1 pc |
| 11 | Microcomputer integrated protection | S20 | 1 pc |
| 12 | Electromagnetic lock | DSN-AM | 2 pcs |
| 13 | Control component | Null | 1 set |
| 14 | Busbar | TMY-2*(100*10) | 6 meters |
| 15 | Accessory | Null | 1 set |

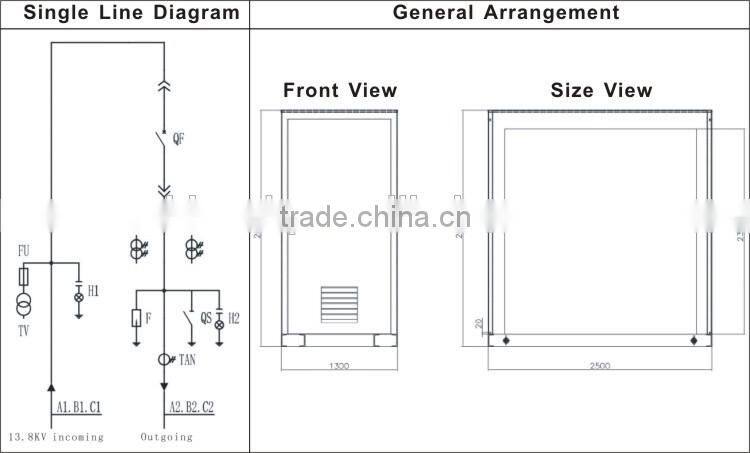

| 16 | Inner cabinet + Deputy cabinet | 1000*1860*2430mm + 600mm | 1 pc |

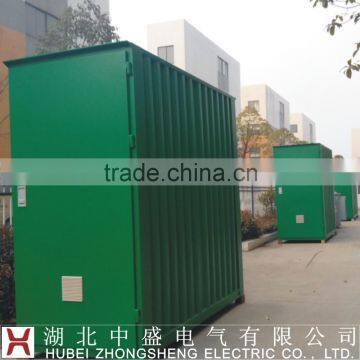

| 17 | Outer cabinet | 1300*2500*2650mm | 1 pc |
