pvc coated water proof electrical flexible metal conduit
- 0 per Month
- HK Shanghai
- T/T
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Kaiphone | Model Number: | TSU3 Series |
| Type: | Flexible | Material: | Steel |
Packaging Details
Roll
Product Description

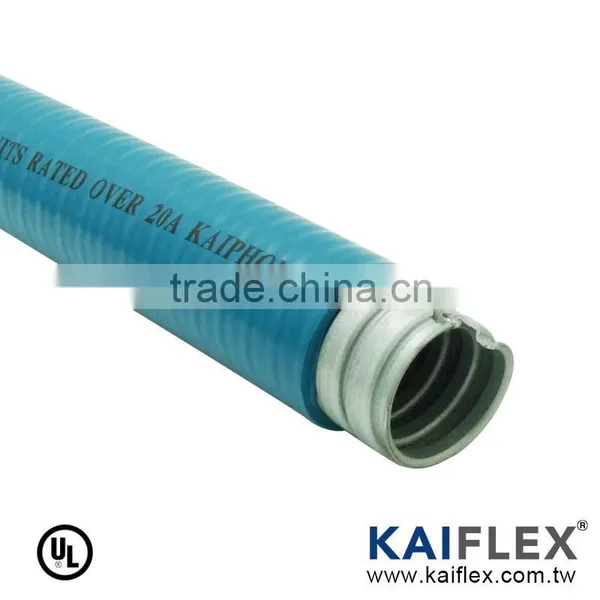

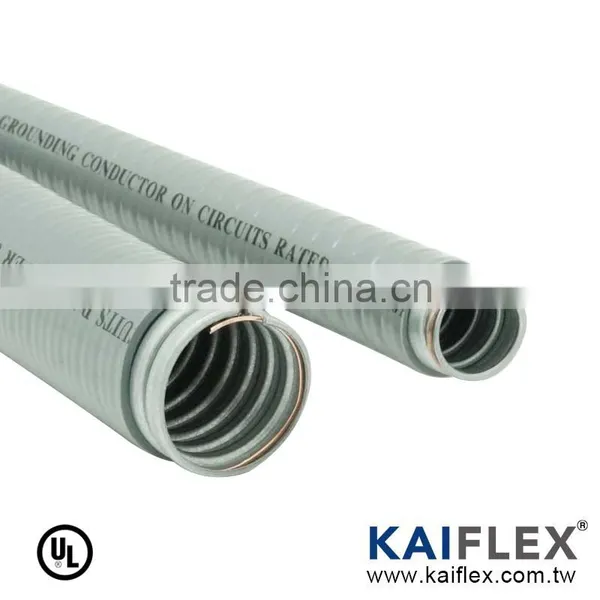

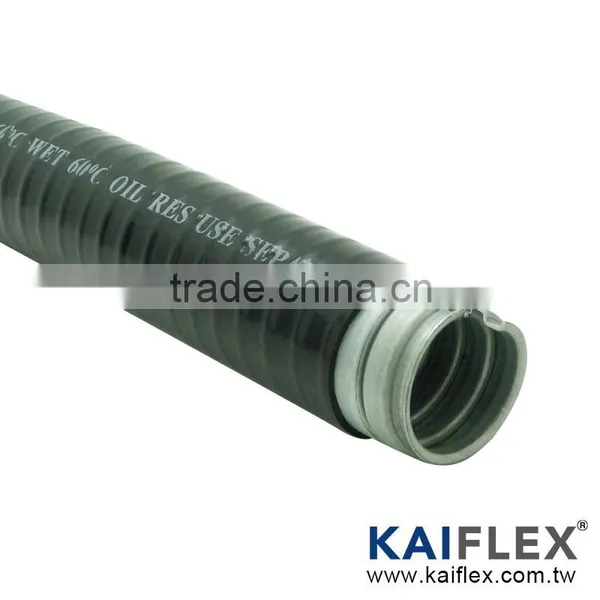

| pvc coated flexible metal conduit |
The Liquid Tight Flexible Steel Conduit is approved by UL laboratory with UL360 standard (cert. No. E318661) to ensure the conformity with the safe requirement of electronics products. The UL listed series tube can be used individually or assembled to a cable harness. The material of outer coating is with characteristics of oil resistant and UV resistant. The color of outer coating is optional for black or grey.
Feature:
Tube Material: Galvanized Steel
Nominal Size: 3/8" ~ 4”
ID: ø 12.29 ~ ø 102.62mm
OD: ø 15.09 ~ ø 108.71mm
OD with Coating: ø 17.50 ~ ø114.30mm
Coating Material: PVC (Options: HDPE / LDPE / LSZH)
Coating Color: Grey / Black (Optional)
Temperature Range: -30°C ~ +105°C
Approval: UL
| Code | Nominal Size(inch) | ID (ø mm) | OD (ø mm) | OD w/Coating (ø mm) | Min. Bending Radius(mm) | Packing Length(m) |
| TSU3-001 | 3/8" | 12.29~12.80 | 15.09~15.59 | 17.50~18.00 | 50 | 50 |
| TSU3-002 | 1/2" | 15.80~16.31 | 18.59~19.43 | 20.80~21.30 | 80 | 50 |
| TSU3-003 | 3/4" | 20.83~21.34 | 23.62~24.38 | 25.20~26.70 | 105 | 50 |
| TSU3-004 | 1" | 26.44~27.08 | 30.51~31.14 | 32.80~33.40 | 165 | 30 |
| TSU3-005 | 1-1/4" | 35.05~35.81 | 39.12~39.58 | 41.40~42.20 | 200 | 30 |
| TSU3-006 | 1-1/2" | 40.01~40.64 | 44.17~44.96 | 47.40~48.30 | 280 | 20 |
| TSU3-007 | 2" | 51.31~51.94 | 55.37~56.26 | 59.40~60.30 | 355 | 10 |
| TSU3-008 | 2-1/2" | 62.99~63.63 | 67.04~67.93 | 72.10~73.00 | 374 | 10 |
| TSU3-009 | 3" | 77.98~78.74 | 83.69~84.71 | 87.90~88.90 | 444 | 5 |
| TSU3-010 | 4" | 101.60~102.62 | 107.18~108.71 | 113.30~114.30 | 609 | 5 |
Application:
For power cable protection especially in critical environment, such as nuclear power stand, petrochemical industry, mining and vessel…
Kaiphone Technology Co., Ltd. has been specializing in producing Flexible Metal Conduit and Flexible Metal Conduit Fitting for over 30 years in Taiwan, superior quality is guaranteed. In addition to Flexible Metal Conduit, we also supply associated OEM products, such as Armored Fiber Optic Cable, Kitchen/Shower Accessories, Payphone Accessories and various kinds of tube assembly products with durable quality and reasonable price. Our main products include UL Listed Conduit, Liquid Tight Flexible Conduit, Flexible Gooseneck Tube, Corrugated Tube, UL Listed Conduit Fitting, Armored Fiber Optic Cable, Shower Hose, Flexible Spout Tube and so on. If you are searching for high quality Flexible Metal Conduit and Wire/Cable Harness Assembly Manufacturer, Kaiphone will be your best choice. Please feel free to contact us.
Company Profile
Kaiphone Technology Co., Ltd. was established in 1979 in Taiwan. We are specialized in producing flexible metal conduits, armored fiber optic cables, metal conduit fittings, wire harnesses, cable harnesses and so on. We have two factories in Dongguan and Zhejiang respectively. Our company offers more competitive conditions to satisfy our customers' demands.
