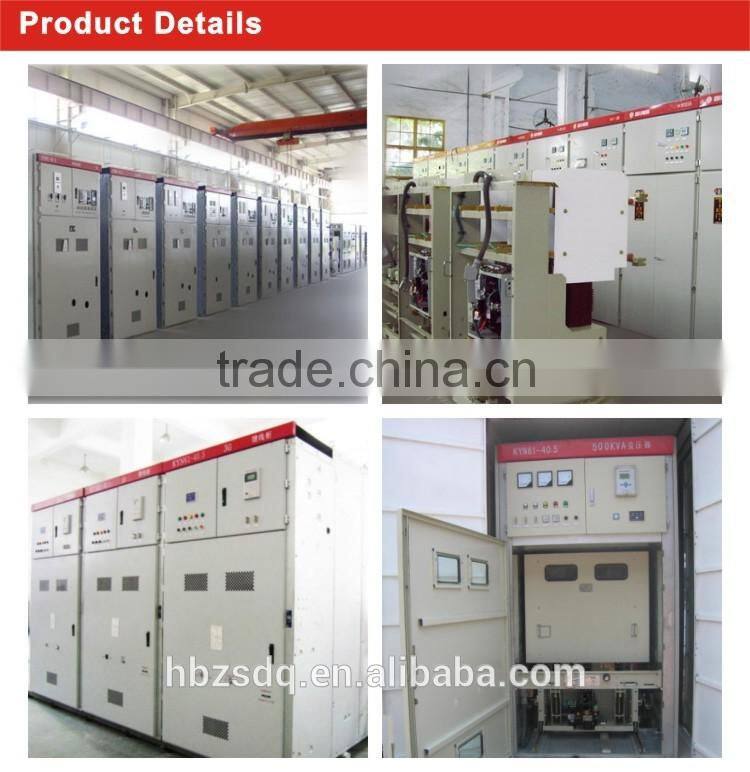

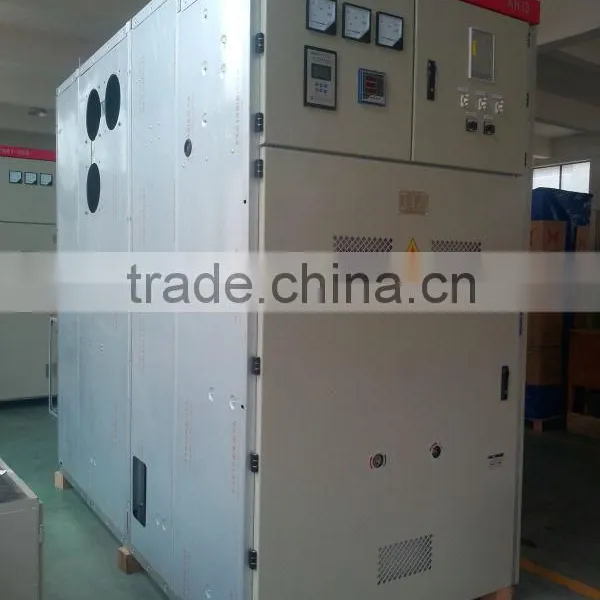

KYN61-40.5 High Voltage Electrical Switchboard Panel

Name: KYN61-40.5 High Voltage Electrical Switchboard Panel
Brand: zhongsheng
SKU: 123544133
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

zhongsheng

Model Number:

KYN61-40.5

Hubei Zhongsheng Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Wuhan Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name zhongsheng

Model Number KYN61-40.5

Product Description

Product name	KYN61-40.5 high voltage electrical switchboard panel
Rated voltages	Rated operating voltage	40.5KV	Lightning impulse withstand voltage	185KV
	Power frequency withstand voltage	95KV	Rated frequency	50Hz
Rated current	Rated normal current	up to 2500A	Rated peak withstand current	up to 80KA
	Short-circuit breaking current	up to 31.5KA	Rated short-time withstand current	up to 31.5KA
Features
1. KYN61-40.5 switchgear lineup is suitable for three phase AC 50Hz, 40.5KV power system, it's used to receive and distribute power.
2. With a series of interlocking device, and can prevent the occurence of dangerous situation and the serious consequences, which can effectively ensure the safety of the operator and the switchgear lineup itself.
3. Manufactured according to our strict quality and environment procedures. Our ISO 9001 and ISO 14001 certifications assure the quality and environmental excellence.
4. IEC standard: KYN61-40.5 is in compliance with IEC 60298.
5. Must be stored under cover in a dry and well ventilated area until it's installed and put into operation.
Environmental Conditions
1. Ambient temperature: -10℃ ~ +40℃.
2. Relative humidity: < 85%, no condensation.
3. Altitude: 1000m and below.
4. Installation location: Vertical inclination is not more than 5 degrees, no fire and explosive danger, no conductive dust, corrosive gas and violent vibration.
Applications
Widely used in power plant, airport, substation, petrochemical industry, metallurgical industry, etc.
