KYN High Voltage Electrical Switchgear Cubicle
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
zhongsheng
Model Number:
KYN
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan Guangzhou Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Switchgear PanelNegotiableMOQ: 1 Set -
Kyn28-12 Draw Out Type High Voltage Distribution SwitchgearNegotiableMOQ: 1 Set
-
Kyn28-12 12kv Medium Voltage Switchgear (distribution Box)NegotiableMOQ: 1 Set
-
KYN61-40.5 Indoor Electrical Switchgear/switchboardNegotiableMOQ: 1 Set
-
XGN2-12 High Voltage Electrical Switch Panel BoardNegotiableMOQ: 1 Set
Place of Origin
Hubei, China
Brand Name
zhongsheng
Model Number
KYN
Product Description
| Product name | KYN high voltage electrical switchgear cubicle | |||
| KYN28A-12 | ||||
| Rated voltages | Rated operating voltage | up to 12KV | Lightning impulse withstand voltage | up to 75KV |
| Power frequency withstand voltage | up to 42KV | Rated frequency | 50Hz | |
| Rated current | Rated normal current | up to 4000A | Rated peak withstand current | up to 125KA |
| Short-circuit breaking current | up to 50KA | Rated short-time withstand current | up to 50KA | |
| Size | Height | 2300mm | ||
| Width | 800, 1000mm | |||
| Depth | 1500mm | |||
| KYN28A-24 | ||||
| Rated voltages | Rated operating voltage | 24KV | Lightning impulse withstand voltage | 125KV |
| Power frequency withstand voltage | 65KV | Rated frequency | 50Hz | |
| Rated current | Rated normal current | up to 2500A | Rated peak withstand current | up to 80KA |
| Short-circuit breaking current | up to 31.5KA | Rated short-time withstand current | up to 31.5KA | |
| Size | 1000*1800*2450mm (W*D*H) | |||
| KYN61-40.5 | ||||
| Rated voltages | Rated operating voltage | 40.5KV | Lightning impulse withstand voltage | 185KV |
| Power frequency withstand voltage | 95KV | Rated frequency | 50Hz | |
| Rated current | Rated normal current | up to 2500A | Rated peak withstand current | up to 80KA |
| Short-circuit breaking current | up to 31.5KA | Rated short-time withstand current | up to 31.5KA | |
| Features | ||||
| 1. KYN series switchgear assemblies are are new generation switchgear equipments, they're widely used in three phase 50Hz AC power system, and they're stable performance, safe and reliable power distribution equipments. | ||||
| 2. KYN series switchgear assemblies are mainly combined with cabinet and removable component, and divided into several functional compartments, such as bus compartment, circuit breaker compartment, cable compartment, protective relaying device compartment, etc. | ||||
| 3. Manufactured according to our strict quality and environment procedures. Our ISO 9001 and ISO 14001 certifications assure the quality and environmental excellence. | ||||
| 4. IEC standard: KYN series are in compliance with IEC 62271 and IEC 60694. | ||||
| 5. Must be stored under cover in a dry and well ventilated area until it's installed and put into operation. | ||||
| Environmental Conditions | ||||
| 1. Ambient temperature: -10℃ ~ +40℃. | ||||
| 2. Relative humidity: < 85%, no condensation. | ||||
| 3. Altitude: 1000m and below. | ||||
| 4. Installation location: Vertical inclination is not more than 5 degrees, no fire and explosive danger, no conductive dust, corrosive gas and violent vibration. | ||||
| Applications | ||||
| Widely used in power plant, airport, substation, petrochemical industry, metallurgical industry, etc. | ||||

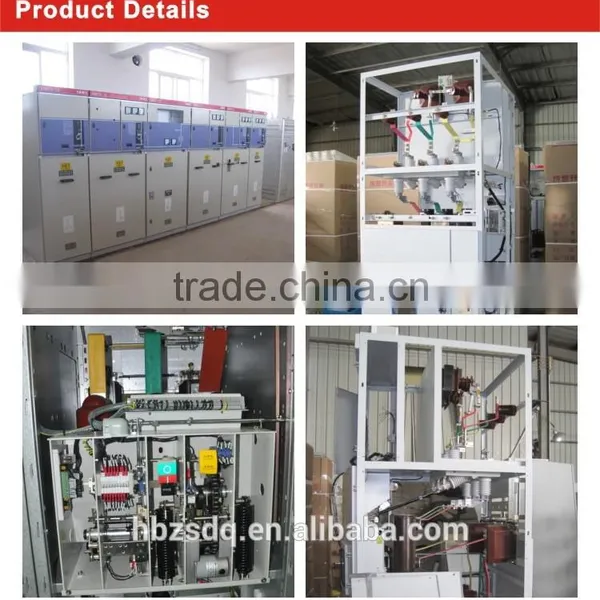

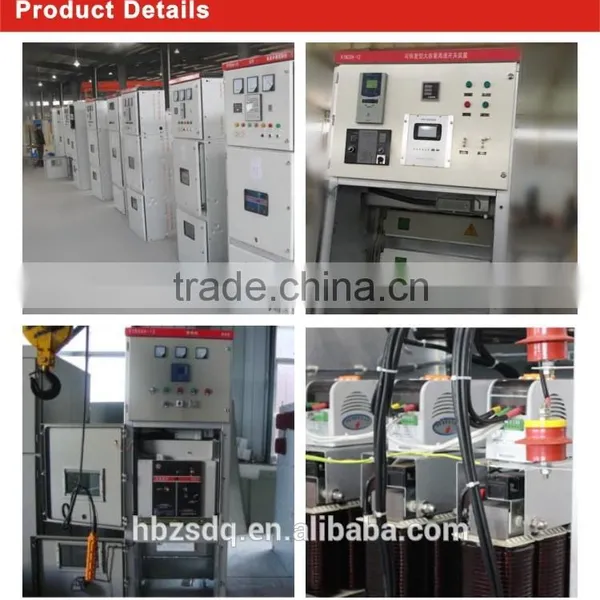

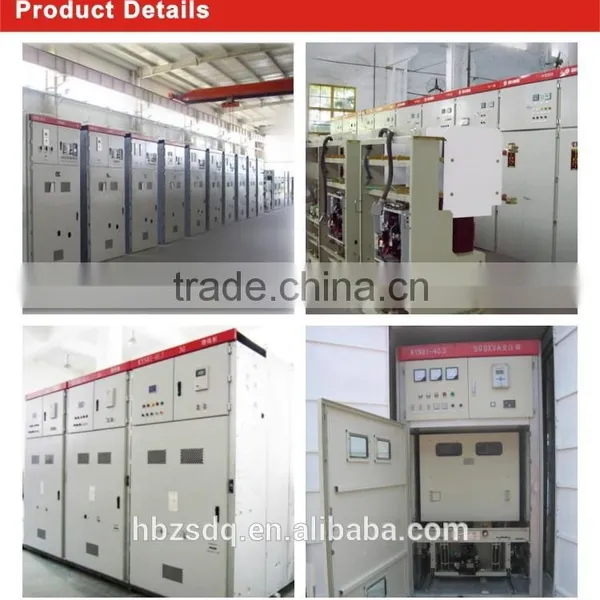

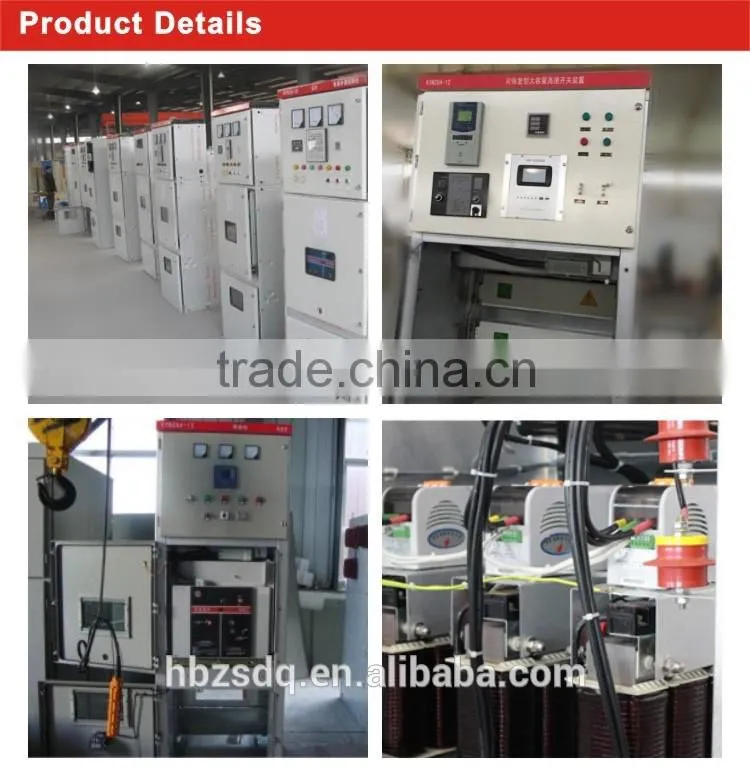

Picture of product
