GGD Indoor Type Low Voltage Panel Board
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
zhongsheng
Model Number:
GGD
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shanghai Wuhan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hebei, China
Brand Name
zhongsheng
Model Number
GGD
Product Description
| Product name | GGD indoor type low voltage panel board | |||
| Technical Data | ||||
| Rated voltage | Rated working voltage | 380V | Rated insulation voltage | 660V |
| Rated current | Rated current | up to 3150A | Rated short-time withstand current | up to 50KA |
| Rated peak withstand current | up to 105KA | Rated frequency | 50Hz, 60Hz | |
| Overall size | Width | 600, 800, 1000, 1200mm | ||
| Depth | 600, 800mm | |||
| Height | 2200mm | |||
| Features | ||||
| 1. In accordance with IEC 60439, IEC60529, GB7251. | ||||
| 2. Protection class: IP30. | ||||
| Environmental Conditions | ||||
| 1. Ambient temperature: -5℃ ~ +40℃, and the average in 24 hours is below +35℃. | ||||
| 2. Air conditions: clear, relative humidity can not exceed 50% at the maximum ambient temperature of +40℃, but higher relative humidity at the low temperature, for example, 90% at 20℃, occasionally, a few of dews is permitted while temperature changes. | ||||
| 3. Altitude: 2000m and below. | ||||
| 4. Installation location: Vertical inclination is not more than 5 degrees, no fire and explosive danger, no conductive dust, corrosive gas and violent vibration. | ||||
| Application | ||||
| Widely used in power plant, substation, industrial enterprises and other power users. | ||||

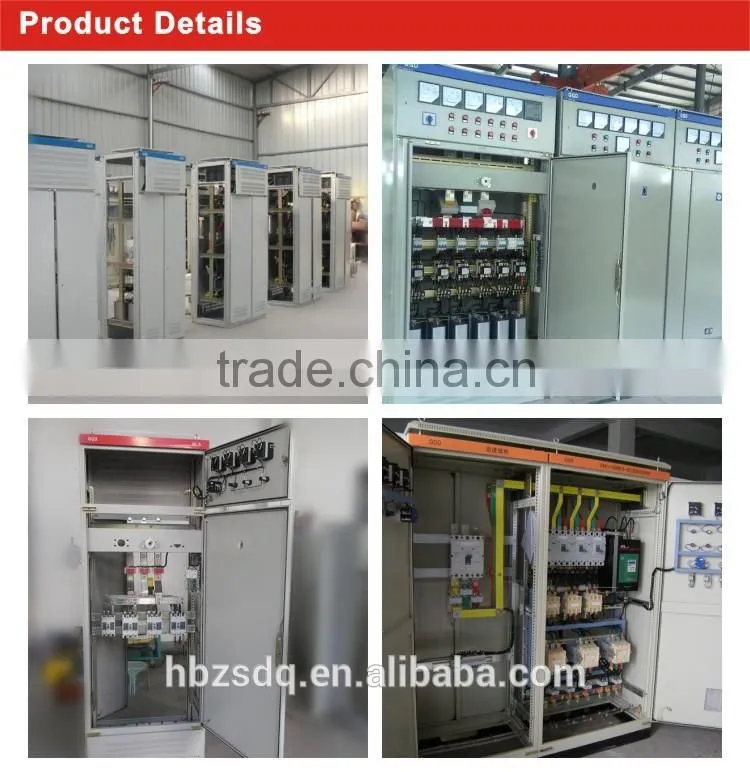

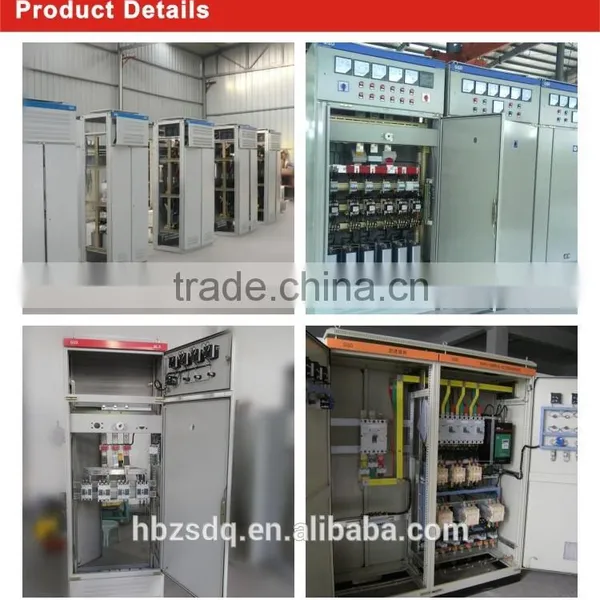

Picture of product
