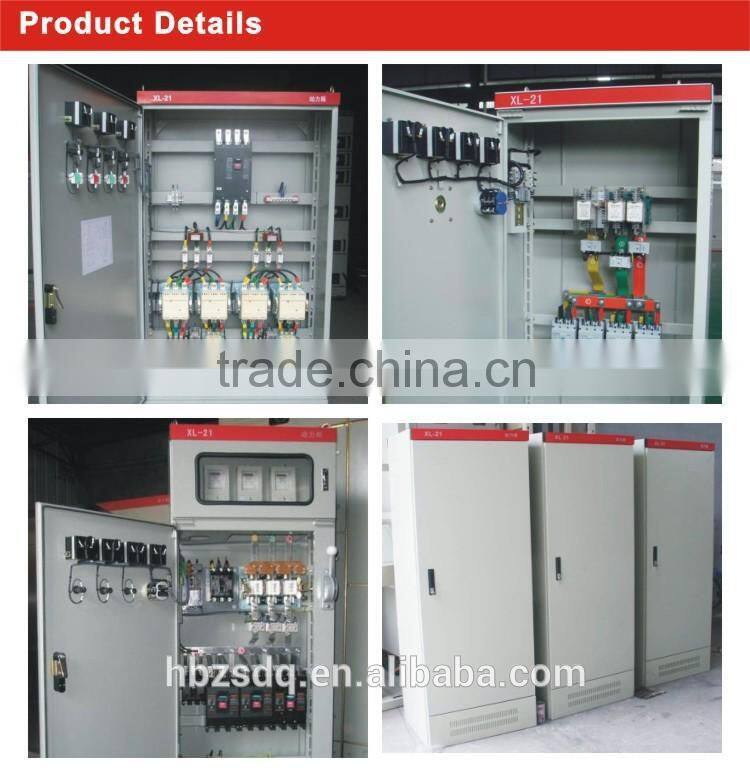

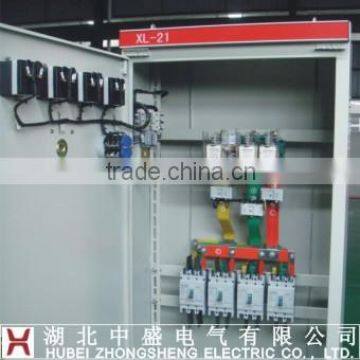

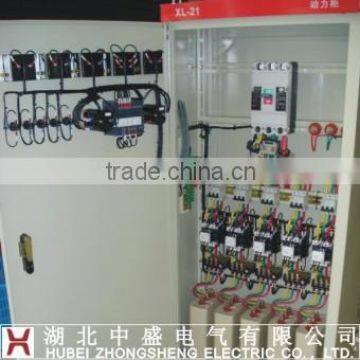

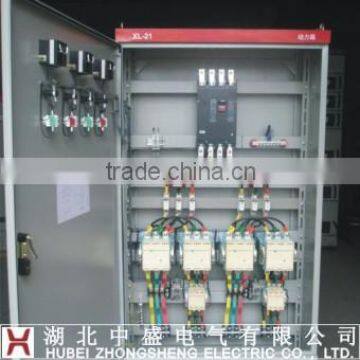

XL-21 Indoor Low Voltage Distribution Board

Name: XL-21 Indoor Low Voltage Distribution Board
Brand: Zhongsheng
SKU: 123542797
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

Zhongsheng

Model Number:

XL-21

Hubei Zhongsheng Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shanghai Wuhan

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name Zhongsheng

Model Number XL-21

Product Description

Product name	XL-21 indoor low voltage distribution board
Technical Data
Rated voltage	Rated operating voltage	400V	Rated frequency	50Hz / 60Hz
	Rated insulation voltage	660V	Protection class	IP30
Rated current	Rated current	up to 630A	Rated short-time withstand current	up to 20KA
Size	Height	1500, 1600, 1700, 1800, 1900mm
	Width	500, 600, 700, 800mm
	Depth	350, 370, 400, 450mm
Features
1. It's design is verified in accordance with IEC 439, GB7251, JB/T9661.
2. Completely designed by utilizing the finest grade of unfinished material and highly advance technology in accordance with quality standards.
3. It's a component of an electrical system, it separates the power supply into several circuits in an enclosure, and provides each circuit with its protection system by using a fuse or circuit breaker.
Environmental Coditions
1. Ambient temperature: -10℃ ~ +40℃.
2. Relative humidity: < 85%, no condensation.
3. Altitude: 2000m and below.
4. Installation location: Vertical inclination is not more than 5 degrees, no fire and explosive danger, no conductive dust, corrosive gas and violent vibration.
Applications
Widely used in low voltage distribution system of power plant, power station, petroleum, chemical industry, metallurgy, machinery and other industrial enterprises.
