Hot Selling Propene LPG Semi-trailer of 50-55 m3 With High Quality for Sale in South America

US$ 10,000 - 80,000 MOQ: 1 Set

Key Specifications

Condition:

New

Storage:

LPG

Drive Wheel:

Other

Hubei Changjie Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Storage LPG

Drive Wheel Other

Horsepower 351 - 450hp

Transmission Type Manual

Fuel Type Gasoline

Tank Volume 5001 - 10000L

Engine Capacity 55-50 cbm

Dimensions (L x W x H) (mm) 12740*2500*3950

Brand Name CLW

Place of Origin Hubei, China

Model Number CLW9401GYQ

Gross Vehicle Weight 40000

Welcome to Hubei Changjie Special Automobile Co, Ltd~

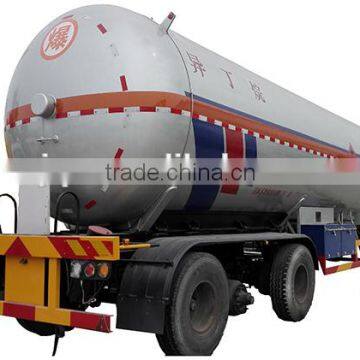

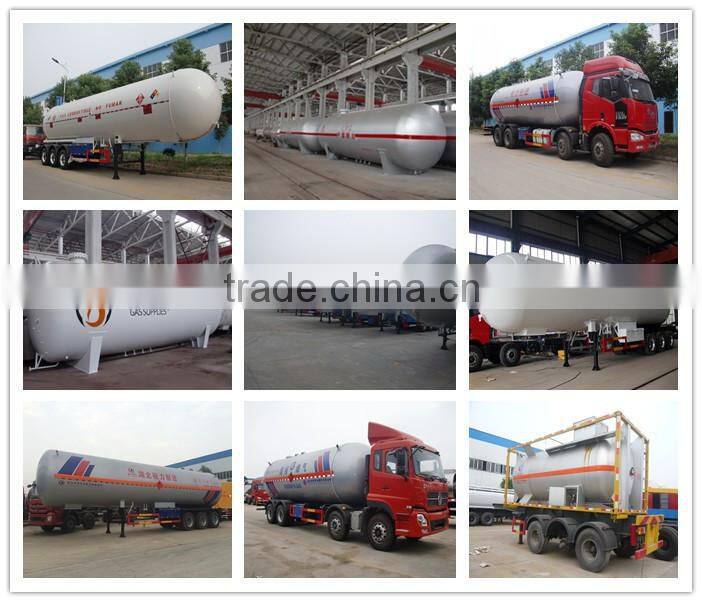

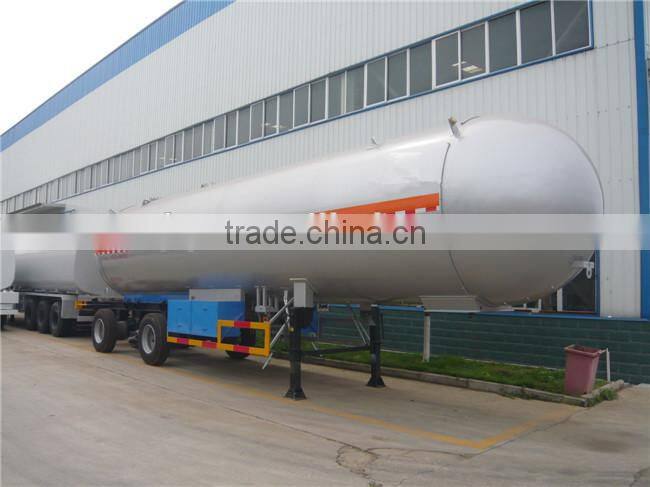

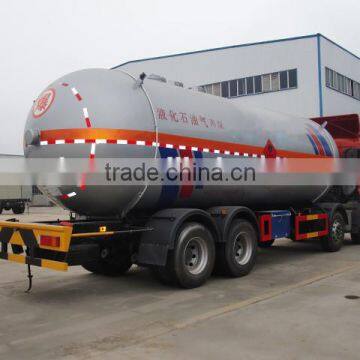

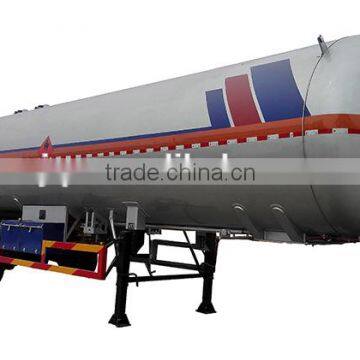

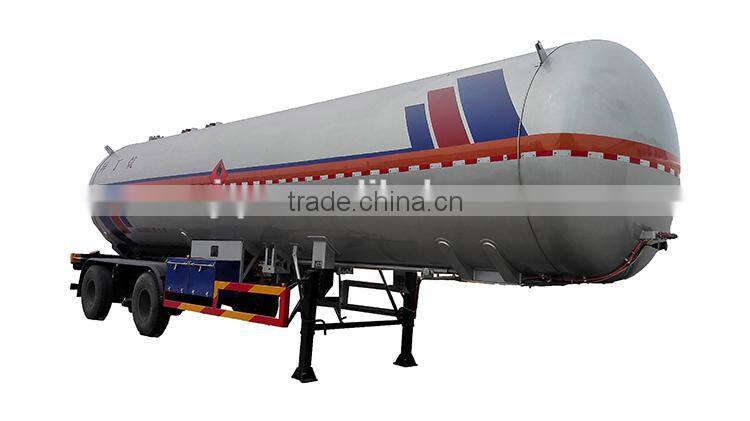

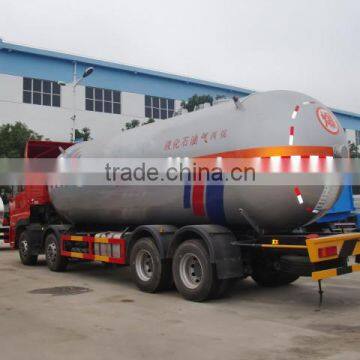

Product images

Product Features

(1).The LPG tank volume is from 5~120 m3 for above ground, 5~100 m3 for underground with two

axles or three axles.

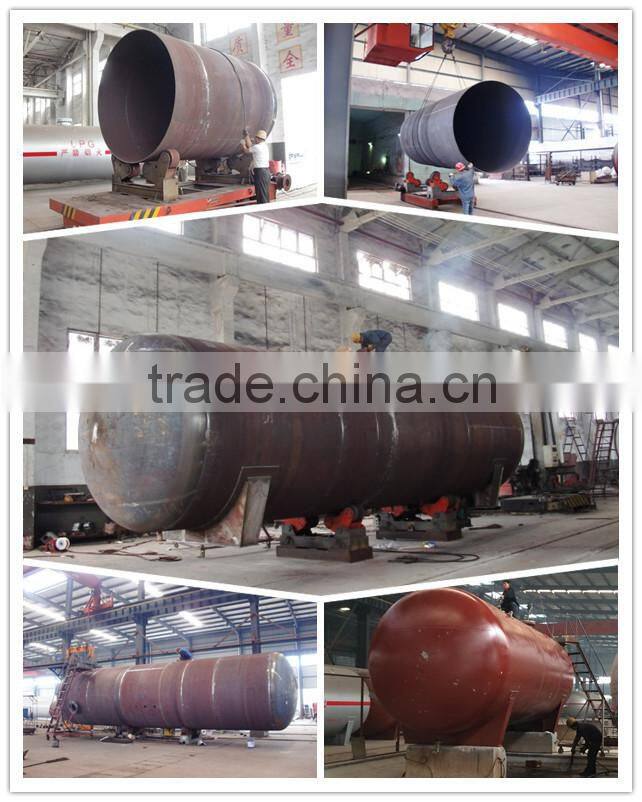

(2). conventional tank materials on physical and chemical tests such as: mechanical properties and

chemical composition. Their welded joints, weld, tank head, the pressure of the geometric location of

each component through rigorous X-ray non-destructive testing and magnetic particle testing inspection.

(3) , seal on the product, pressure, and those who can affect the operation of product safety testing

various technical indicators.

(4) , A,B Class 100% ray weld inspection, II level qualified, C, D Class welds 100% magnetic particle

inspection.

Technical Parameters

Basic information

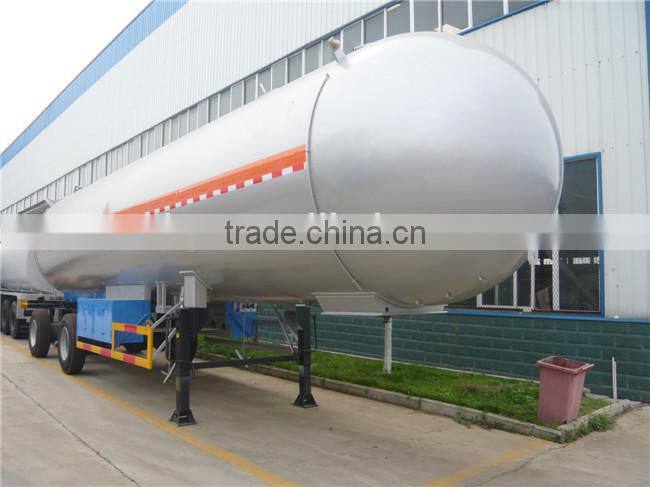

Product Name		LPG tank semi-trailer (propene)
Product Model		CLW9401GYQ
Actual capacity		52m3
Gross weight		40000kg
Kerb weight		17600kg
Rated load		22400kg
Overall size		12740x2500x3950mm
Number of axles		3
Wheelbase		6800+1310+1310mm
Rear trend		1840/1840/1840
Max. allowable bearing capacity of saddle		16000kg
Tyre specification		11.00R20 12PR
Special configuration
tank body material		Q345R

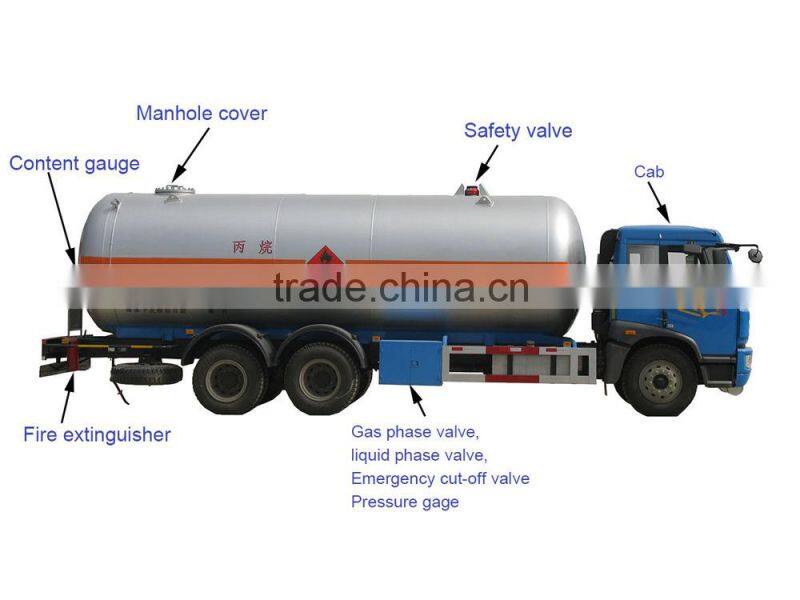

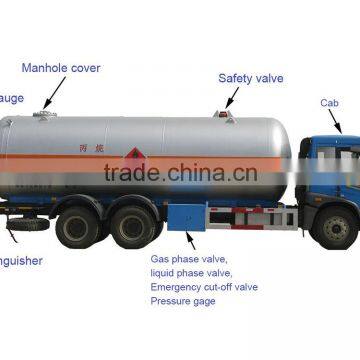

standard configuration		BPW axle 12tons,landing leg,tubeless tyre,safety enclosures,single-fluid two-valve boxes,traction pin,level gauge,pressure gauge,thermometer,emergency shut-off valves, fire extinguishers,fire-fighting stars cover,anti-static grounding tape,guard rail,tyre fender,1 spare tyre
instruction		Filling medium:liquefied petroleum gas(propene),design pressure:2.16Mpa,design temperature:50 °C,filling factor: 0.43t/m3,corrosion margin: 1mm,tank size:12360×2320mm
manufacture standard		GB713-2008 "Steel Pressure Vessels," Pressure Vessel Safety Technology to monitor the order and automotive liquefied gas tanker safety supervision order
