Blue color aluminum PET tape
- 200 Ton / Tons per Month
- Shanghai
-
Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
-
High Viscosity 3W/MK Thermally Conductive Putty For BGA Package
-
3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
-
Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
-
4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
-
Factory Price Bakelite Decorative HPL Press plates bakelite sheet
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Tianhong | Model Number: | AP0044 |
| Type: | Insulation Tape | Material: | Composite Polymer | Application: | High Temperature |
| Rated Voltage: | ≥1 Kv | Tensile Strength: | ≥50 Mpa |
Product Description
1.Application
1.For wire cables
2.For insulation materials
3.For telephone lines
4.For flexible duct,air conditioner
5.We are manufacturer
6.For champagne cap
7.Can supply SGS,Certificate of original,MSDS,Test report,ect
2. Specifications
Name | Aluminum PET tape for cables (AL+PET and AL+PET+AL) |
Thickness | 20u-150u |
Width | 5mm-1000mm |
Inner diameter | 38mm(1.5in) or 53.5mm(2.1in) or 76mm(3.0in) |
Outer diameter | 250mm-650mm |
Color | Silver,Blue,Golden |
Packaging | 1.Inner-plastic bag,Outside-carton,Then put on a plywood pallet 2.Inner-plastic bag,Outside plywood wooden box |
Name:AL+PET |
|
|
|
Structure | Thickness(mic) | Weight(g/m2) | Yield(m2/kg) |
AL9+ PET12 | 23mic | 43 | 23 |
AL9 +PET15 | 26mic | 48 | 21 |
AL9 +PET19 | 30mic | 54 | 19 |
AL9 +PET23 | 34mic | 60 | 17 |
AL12 +PET12 | 26mic | 52 | 19 |
AL12 +PET15 | 29mic | 56 | 18 |
AL12 +PET19 | 33mic | 32 | 16 |
AL12 +PET23 | 37mic | 67 | 15 |
AL12 +PET36 | 50mic | 87 | 12 |
3.Test report and test machine
| Width(mm) | Thickness (mm) | Tension (N) | Tensile strength (MPa) | Elongation at break (%) |
| 10.000 | 0.027 | 30.96 | 114.683 | 51.169 |
| 12.000 | 0.027 | 47.39 | 146.267 | 83.859 |
| 15.000 | 0.027 | 59.53 | 146.979 | 78.151 |

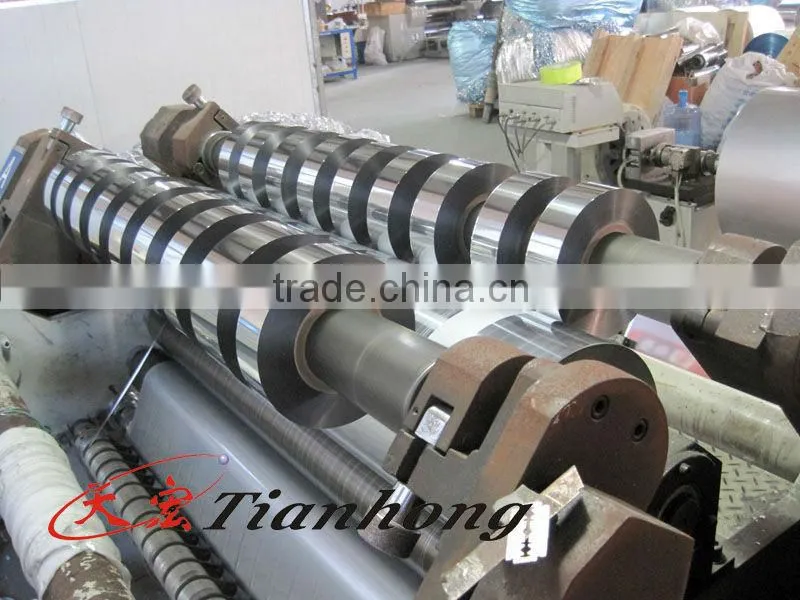

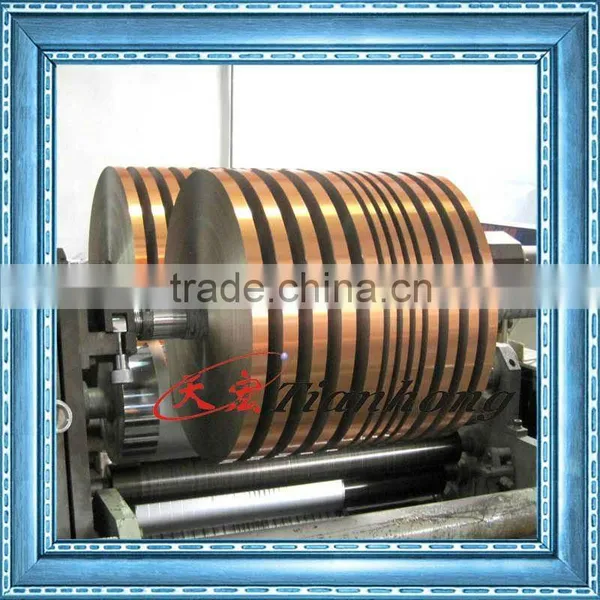

4.Production line: Lamination & Cutting
5..Product pictures

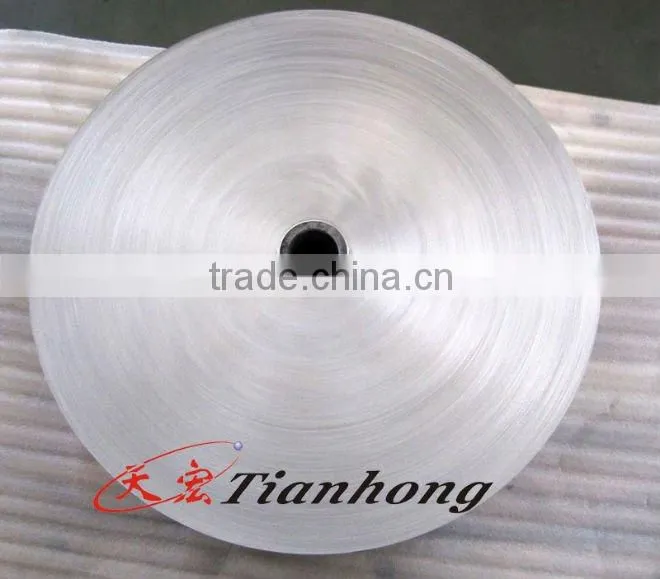

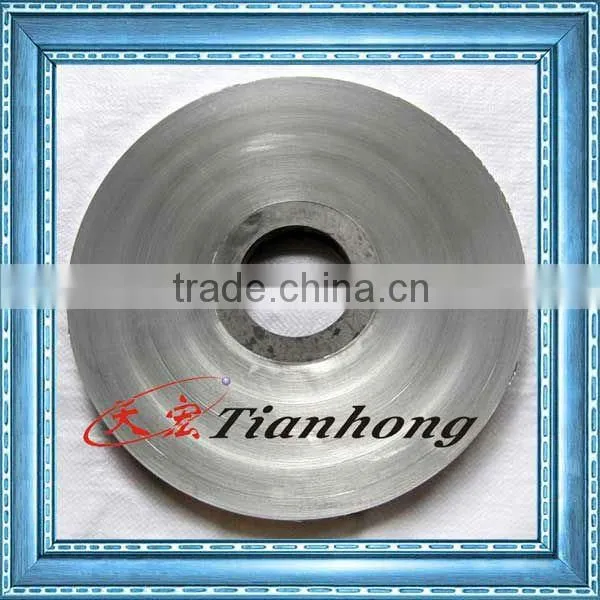

PAD packaging-Silver color

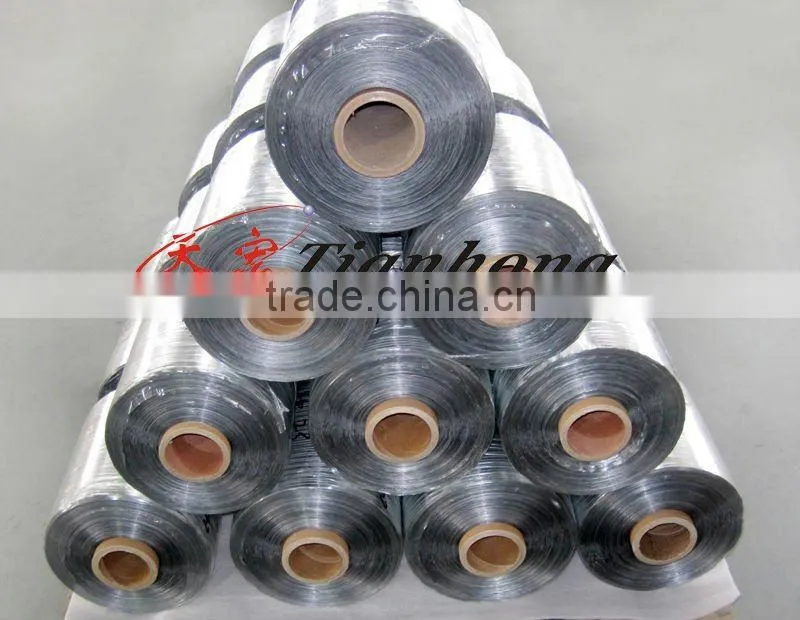

Spool packaging-Slitted-Silver color

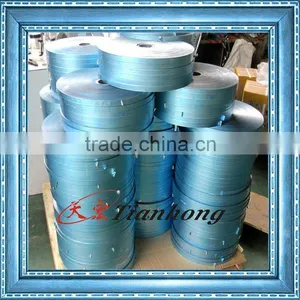

PAD packaging-Blue color

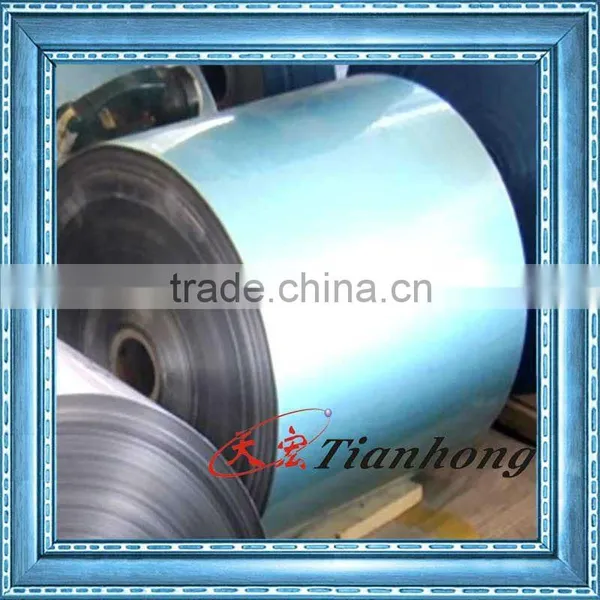

Big roll-Blue color

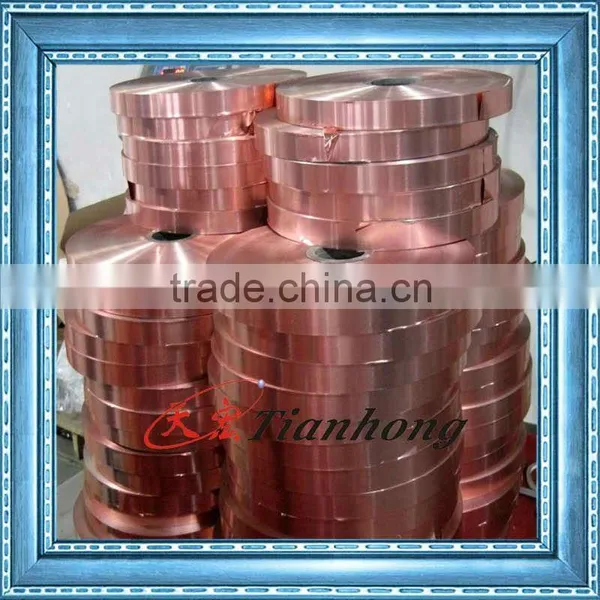

PAD Packaging-Copper color
Spool packaging-Slitted-Gold color
6.Packaging photos

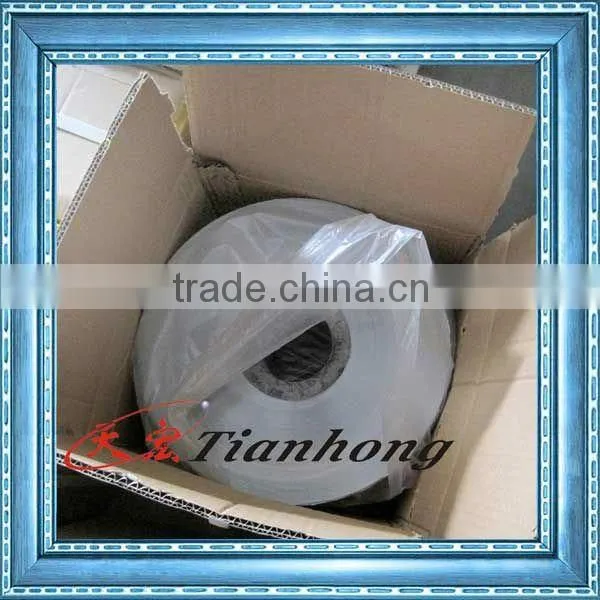

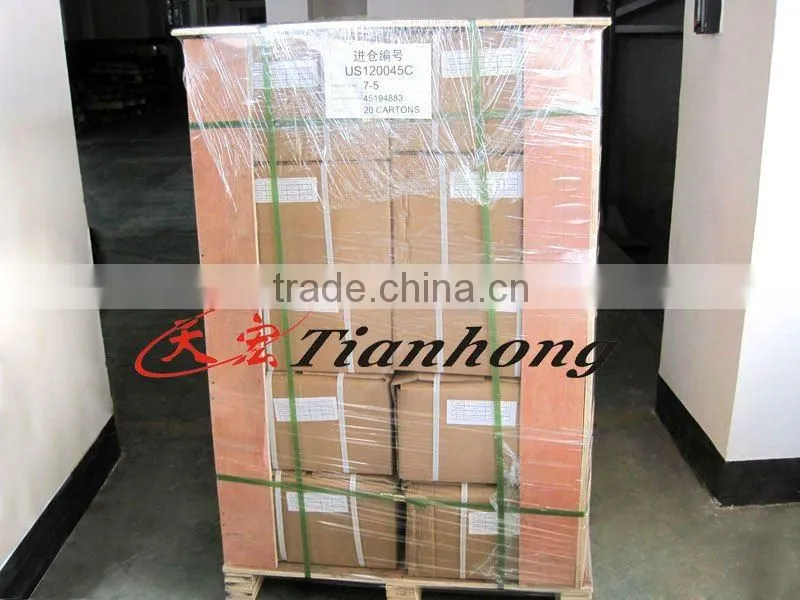

a.Inner-plastic bag,Outside-carton,Then put on a plywood pallet
b.Inner-plastic bag,Outside plywood wooden box
7.Warehouse
8.Application to cables
9.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect
10.Sample: We are manufacturer,We supply free sample,But please pay express fee.
11.Contact:Please feel free to contact with me.
Mobile:86-15168349992
