1. Large Weight Mild Steel Plate a36 with Cutting Processing
Standard |
Grade |
C max |
Mn max |
Si max |
P |
S |
Yield strength max |
Tensile strength |
Elongation% |
JISG3101 |
SS400 |
0.22 |
- |
0.30 |
0.045 |
0.030 |
245 |
400-500 |
26 |
ASTM |
A36 |
0.24 |
- |
0.40 |
0.045 |
0.030 |
250 |
400-52 |
26 |
EN10025 |
S235JR |
0.22 |
1.50 |
--- |
0.045 |
0.045 |
175Mpa |
340-510 Mpa |
17 |
Material |
a36, |
Thickness |
8mm-600mm |
Width |
1500mm-4200mm |
Length |
6000mm-18000mm |
Delivery condition |
Hot rolled, controlled rolled, or normalized |
Cutting service |
Large steel plate cut to flat plate sizes, or cut to any size by drawing |
Deep processing |
After cutting large plate into the general sizes by drawing, milling and grinding, and make angles, polishing, and make special parts |
|
|
2. Large Weight Mild Steel Plate a36 with Cutting Processing
Carbon steel plate |
A283GR.C/GR.D, ASTMA36, A573GR.58, A573GR.65, A573GR.70. SS400, SM400A, SM400B. SM400C, S235JR, S235J0, S235J2, S275JR, S275J0, S275J2, S275N, S275NL, S275M, S275ML, 250, 250L0, 250L15, Q235A/B/C/D, Q275A/B/C/D, |
Low Alloy steel plate |
A572GR.50, A572GR.60, SS490, SM490N/NL, S460N/NL, S355M/ML, S420M/ML, S460M/ML, S500Q/QL/QL1, S550Q/QL/QL1,S620Q/QL/QL1, S690Q/QL/QL1, S355G8+N, 350, 350L0, 350L15, Q345A, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C, Q390D, Q390E, Q420A, Q420B, Q420C, Q420D, Q420E, Q460C, Q460D, Q460E, Q500C, Q500D, Q500E, Q550C, Q550D, Q550E, Q20C, Q620D, Q620E, Q690C, Q690D, Q690E, 890D, Q890E,Q960D, Q960E, XGCFQ500D, XGCFQ500E. |
General Strength ship plate, high strength ship plate, ultra high strength ship plate |
A,B, C, D, E, A32,D32, E32, F32, A36, D36, E36, F36, A40,D40, E40, F40, A131A, A131B, A131D, A131E, AH32, DH32, EH32, AH36,DH36, EH36, AH40, DH40, EH40, NVA420, D420, E420, NVA460, NVD460, NVE460,NVA500, NVD500, NVE500, NVA550, NVD550, NVE550. |
Ship pressure vessel plate |
NV360, NV410, NV460, NV490, NV510, LR360, LR360FG, LR410, LR410FG, LR460FG, LR490FG, LR510FG, |
Bridge plate |
Q235QC/D/E, Q345QC/D/E, Q370QC/D/E, Q42QC/D/E, Q460QC/D/E, Q500QD/E, Q550QD/E, Q620QD/E, Q690QD/E, A709-50T-1/50T-2/50T-3/50F-1/50F-2/50F-3, A709-50W-A/B/C-F1/F2/F3-T1/T2/T3 |
Boiler pressure vessel plate |
Q245R,Q345R,Q370R,15CrMoR,18MnMoNbR,13MnNiMoR, 12Cr1MoVR,12Cr2Mo1R,14CrMoR,16MnDR,09MnNiDR,15MnNiDR, 07MnCrMoVR,07MnNiCrMoVDR/12MnNiVR, Q245R, Q345R, 16MNDR.P235GH,P265GH,P395GH,P355GH,16Mo3, P275NH/NL1/NL2, P355N/NH/NL1/NL2, P460NH/NL1/NL2, P355M/ML1/ML2, P420M/ML1/ML2,P460m/ml1/ml2, P355Q/QH/QL1/QL2, P460Q/QH/QL1/QL2, P500Q/QH/QL1/QL2,P690Q/QH/QL1/QL2, 10CrMo9-10, 11MnNi5-3, 13CrMo4-5, 13CrMoSi5-5, 13MnNi6-3, 18MnMo4-5, 20MnMoNi4-5. (S)A204Gr.A/Gr.B/Gr.C (S)A285Gr.A/Gr.B/Gr.C (S)A299Gr.A/Gr.B,A302Gr.A/Gr.B/Gr.C/Gr.D, A387Gr.2/Gr.11/Gr.22. ASTMA455 (S)A515Gr.60/65/70, (S)A516Gr.55/60/65/70, (S)A516Gr.60(HIC), (S) A516Gr.60(R-HIC) (S)A517Gr.B/Gr.H (S)A533Gr.A/Gr.B/Gr.C (S)A537CL.1/CL.2/CL.3, ASTMA612, (S)A662Gr.A/Gr.B/Gr.C (S)A737Gr.B/Gr.C A738Gr.A/Gr.B/Gr.C (S)A841Gr.A/Gr.B/Gr.C/Gr.D SB410,SB450,SB480, SB450M/480M, SEV245/295/345, SBV1A/1B, SBV2/3, SGV410/450/480,SPV235/315/355/410, SPV450/490, SQV1A/1B/2A/2B/3A/3B |
High-rise Building Plate |
Q235GJB/C/D/E. Q345GJB/C/D/E,Q390GJC/D/E, Q420GJC/D/E, SN400A/B/C, SN490B/C |
COMMODITY NAME |
GRADES |
Boiler and Pressure Vessel Steel Plates |
Q245R,Q345R,Q370R,15CrMoR,18MnMoNbR,13MnNiMoR, 12Cr1MoVR,12Cr2Mo1R,14CrMoR, |
16MnDR,09MnNiDR,15MnNiDR | |
07MnCrMoVR,07MnNiCrMoVDR/12MnNiVR | |
SB410,SB450,SB480 | |
SPV235,SPV315,SPV355,SPV410,SPV490 | |
SGV41O,SGV450,SGV480 | |
SBV1A,SBV1B,SBV2,SBV3 | |
SEV245,SEV295,SEV345 | |
HI,HII,10CrMo910,15Mo3,13CrMo44,19Mn6 | |
BHW35/13MnNiMo54 | |
1Cr0.5Mo,2.25Cr1Mo,1.25Cr0.5Mo,Q245R|Q345R(HIC)/(R-HIC) | |
|
(s)A229M, (s)A515M(Gr.A,B,C), (s)A387M(GR11,12,22), (s)A537M(GL1,GL2), (s)A662M(GrA,B,C), (s)A302M(GraA,B,C,D), (s)A737M(Gr.B,C), (s)A738M(Gr.A,B,C), (s)A533M(Ⅰ,Ⅱ), (s)A285Gr:A,B,C,D | |
P235GH,P265GH,P395GH,P355GH,16Mo3 | |
A42,A52,A48 | |
20MnHR,Q245HR,Q345HR,KP42,AISI4140,A48CPR,SA612M | |
161G430 | |
WDB620/Q500FC | |
Low Alloy High Strength Steel Plate |
12Mn,15MnVN,16Mn,15MnV,14MnNb |
|
Q295(A,B),Q345(A,B,C,D,E)Q390(A,B,C,D,E), Q420(A,B,C,D,E),Q460(C,D,E) | |
Q500(D,E),Q550(D,E),Q620(D,E),Q690(D,E) | |
SM490(A,B,C),SM490Y(A,B),SM520(B,C),SM570 | |
St44-3,St52-3,St50-2, St60-2,St70-2 | |
StE315,StE355,StE380,STe420,StE460,StE500 | |
A572M(Gr42.50,60,65),A633M9(A,B,C,D,E) | |
S275(JR,JO,J2G3,J2G4),S355(JR,JO,J2G3,J2G4,E395,E355,E360) | |
S275N,S275NL,S355N,S355NL,S420N,S420NL,S460N,S460NL | |
50(A,B,C,D,DD,EE,F),43(A,B,C,D,EE),55(C,EE,F) | |
Fe430(A,B,C,D),Fe510(B,C,D) | |
WH60,WH410LK(BB41BF),WH490LK(BB503),Q550CFC | |
WDB690,WDB780,WH70,WH80 IE0650,IE1006,SHT60 | |
Corrision Resistance Steel Plate |
08Cu,16MnCu,Q245R|Q345R(HIC)(R-HIC) |
St37-3Cu3 | |
A588M(A,B,C,K),A242MCL.2 | |
Cor-TenB,10CrMoAL | |
16CuCr,12MnCuCr,15MnCuCr-QT,09CuPCrNi | |
|
SMA400(AW,BW,CW),SMA400(AP,BP,CP),SMA490(AW,BW,CW) SMA490(AP,BP,CP),SMA570W,SMA570P | |
Fe235W,Fe355W,WR50B,WR50C | |
Bridge Steel Plate |
16q,16Mnq,16MnCuq/15MnVq,15MnVNq 14MnNbp/Q345q,Q370q,Q420q |
A709M(Gr36,50,50W,70W) | |
Construction, Structural Steel Plate |
Q235GJ,Q345GJC.D-Z35,Q390GJ,Q460GJC |
SN400(A,B,C),SN490(B,C) | |
275(D,E,EZ),355(D,E,EM),450(EM,EMZ) | |
Alloy Structure Steel Plate |
15CrMo,20CrMo,30CrMo,35CrMo,20Cr, 40Cr,20Mn2,40Mn2,20CrMnMo,12Cr1MoV,20MnSi 30CrMnSiA,12CrMoVNi(RQ65),50Mn2V,42CrMo |
25CrMo4,34CrMo4,42CrMo4 | |
Mold Wear Steel Plate |
P20,718,P80,WSM30A |
S45C-S55C | |
45-55,50Mn,SM45-SM55,SM3Cr2Mo,SM3Cr2Mo,SM3Cr2Ni1Mo | |
NM360,NM400 | |
Carbon Structure Steel Plate |
Q235-Q275 |
10-55,20Mn-50Mn | |
SS400/SM400(A,B) | |
S10C-S55C | |
St37-2,St37-3 | |
A36,A283(A,B,C,D),1010-1050 | |
40(A,B,C,D,E) | |
S235(JR ,JO ,J2G3,J2G4) | |
1C22,1C25,1C30,1C35,1C40,1C45,1C50,1C55 | |
Fe360(A,B,C,D) | |
Bridge Oil Flatform Steel Plate |
A,B,D,E(Z15,Z25,Z35) AH32-FH32(Z15,Z25,Z35) AH36-FH36(Z15,Z25,Z35) |
D40,E40 | |
AP1 SPEC 2H Gr42,Gr50 | |
Complex Steel Plate |
TU1/20g 0Cr13Ni5Mo/Q235A 0Cr13Ni5Mo/16Mn |
High Strength Yield Steel Plate |
GS80 28Cr2Mo(GY4) 26SiMnMo(GYS) 30CrMnMoRE(603) 30CrNi3MoV(675) |
Oil, Gas Line Steel Plate |
X42,X46,X52,X56 X60,X65,X70,X80 |
3. Large Weight Mild Steel Plate a36 with Cutting Processing
steel plates production equipments and production line
4. Large Weight Mild Steel Plate a36 with Cutting Processing
large plaes cut to flat plate or other sizes plate. cutting usually use laser cutting for thickness under 30mm, usually use flame cutting for plates thickness over 30mm, especially for thickness 100mm, 150mm, 200mm, 300mm large stock plates, cut to special sizes requried.
5. Large Weight Mild Steel Plate a36 with Cutting Processing
, cutting service, cutting to different shapes
Steel Plate, ms steel plate; mild steel plate; chequered steel plate; checkered steel plate; steel sheet; galvanized steel coils; ppgi steel plate; corrugated steel plate; steel angle bars, steel beam, h beams, steel channels; flanges; steel pipes; seamless steel pipes; welded steel pipes, steel tubes; stanless steel pipes; stainless steel plate. And can provide many different processing: steel welding, making holes; steel plates cutting, plates processing, laser cutting, steel plates processing, plate work processing; metal plate processing;;cutting plates; plates cutting; laser cutting steel plates; ms plate cutting; cutting steel plate; steel plate cuttings; laser cut metal plate; iron plate cutting; cut metal plate; metal plate lasr cutting; metal plates cutting; plates cutting flange; cutting scrap steel plate; cut edge plate; steel cutting disc; carbon steel cutting disc; cutting disc for steel; cnc steel cutting; plate processing.
6 Large Weight Mild Steel Plate a36 with Cutting Processing
we can cut the large steel plates by your requirements, but to the width and length your demand; we can make the surface of the cut steel plate to be bright by miling and grinding, also can make holes and make angle degrees,and can weld by your drawing.
For the thickness under 30mm, we mainly cut by laser cutting;for thickness over 30mm, mainly OXY-cut, flame cutting.
for the thickness 200mm steel plate, because during the flame cutting, the temperature is very high, so the cutting parts steel plate might be broken at the angle part, then our workers will repair the angles to be good condition.
7. Large Weight Mild Steel Plate a36 with Cutting Processing
transportation at truck and loading into containers pictures

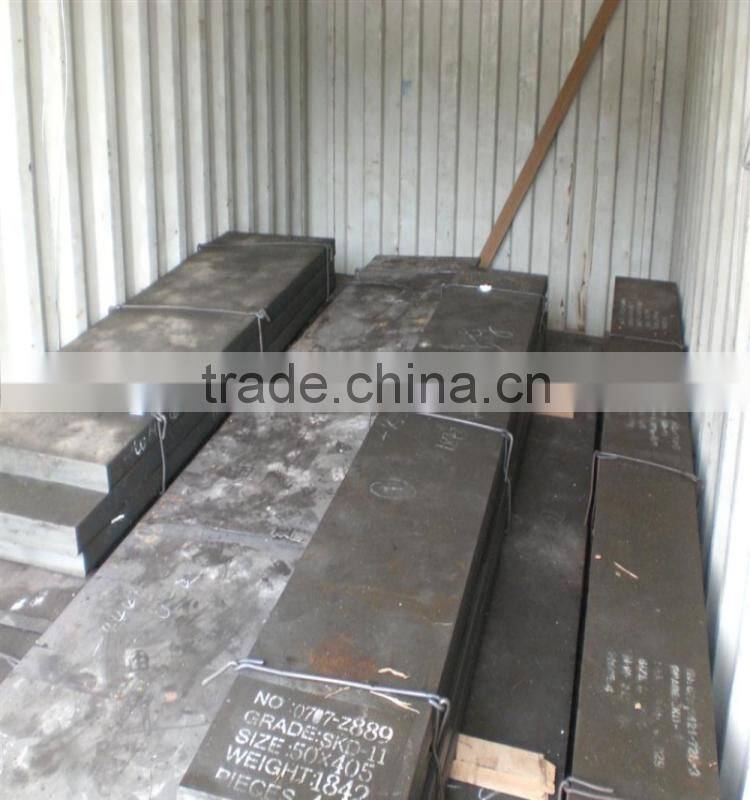

8. Large Weight Mild Steel Plate a36 with Cutting Processing
Packaging |
when each plate weight is under 1 ton, it will be in bundle with steel strips 2-4, when each plate weight is over 1ton, it will be piece by piece. |
20 feet container contains dimension |
Width under 2300mm, length under 6000mm |
40 feet container contains dimension |
Width under 2300mm, length under 12000mm |
By bulk vessel |
Freight charge is low by bulk cargo, and large heavy sizes can not be loaded into containers can shipping by bulk cargo |
