SINOTRUCK STEYR 12000-15000 L Fire Truck 12-15 T Water Tank Fire Truck
US$ 40,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Drive Wheel:
6x4
Type:
Tanker
Transmission Type:
Manual
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SINOTRUCK STEYR 12-15 m3 Water Tank Fire Truck SINOTRUCK STEYR 6*4 Fire TruckUS$ 40,000 - 80,000MOQ: 1 Set -
SINOTRUCK STEYR 4X2 Foam Tank Fire Truck for SaleUS$ 40,000 - 80,000MOQ: 1 Set
-
Sinotruck Howo Mini Water Tank Fire Truck for SaleUS$ 10,000 - 80,000MOQ: 1 Set
-
Mini Fire Truck Howo 8cbm Water Tank 6 SeatsUS$ 40,000 - 80,000MOQ: 1 Set
-
Sino Howo 15cbm Fire Fighting Truck 6*4US$ 40,000 - 80,000MOQ: 1 Set
Drive Wheel
6x4
Type
Tanker
Transmission Type
Manual
Condition
New
Horsepower
251 - 350hp
Tank Capacity
5001 - 7000L
Emission Standard
Euro 3
Fuel Type
Diesel
Max. Work Height
60
Size
8670*2500*3400mm
Place of Origin
Hubei, China
Brand Name
CLW, SINOTRUCK
Model Number
ZZ1257M4647C
Product Features
(1) Fire fighting truck:fire-extinguishing water tanker,fire-extinguishing foam tanker,water-foam fire fighting
truck, emergency rescue fire truck and ect.
(2) Equipped with fire pump,PTO,storage compartment,long-line lights and fire monitor.
(3) Basic composition:chassis,fire pump,PTO,storage compartment,long-line lights and fire monitor,fire
fighting tools and ect.
(4) Fire fighting truck is specially used for fire fighting vehicles or other emergency rescue purposes. It can
be devided into pump truck(water supple vehicle sprinkling water or fire), aerial(high save) and other special
vehicles according to their function.
(5) Fire Pump: Model: CB10/20 car fire pump, flow rate: 20L / s, and pressure: 1.0MPa
In the low-pressure pump: Model: the CB10.20/20 fire pump, low pressure flow: 40L/s/1.0MPa,
medium-pressure flow: 20L/S/2.0MPa
Fire Gun: Model: PP24-type dual-use fire monitor traffic: 48L/s/1.0MPa water range ≥ 50 m bubble range
of ≥ 45 m.The pitcher Fire gun: Model: SP40, water and a range of ≥ 55 m

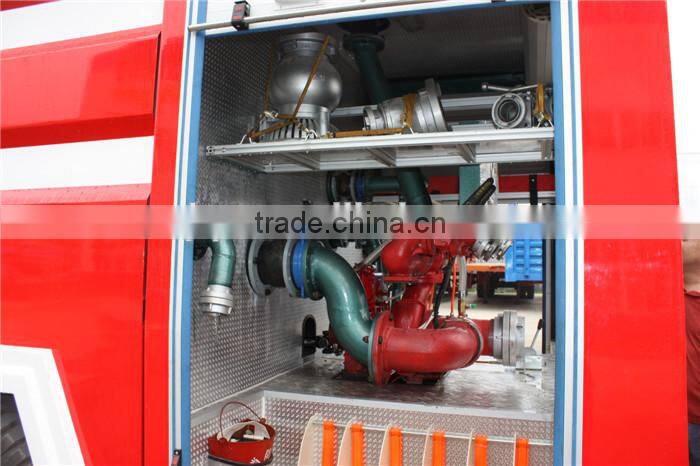

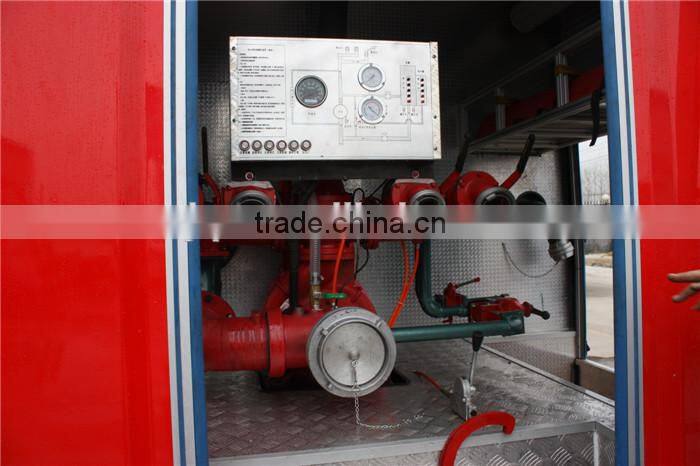

(6) working principle : the body as a whole square tube steel structure, stainless steel water of a tank. The
front section for the pumping station, the central part of the water of a tank, the rear of the equipment box,
made of aluminum alloy assembly framework, classification clamping equipment, good looks. Each of the
φ135mm the intake, through four suction pipe at the top of the body from the water absorbent on both sides
of the car. Four outlet of the pump is located on both sides of the pumping station is equipped with a φ80 the
demand valve to control water.
truck, emergency rescue fire truck and ect.
(2) Equipped with fire pump,PTO,storage compartment,long-line lights and fire monitor.
(3) Basic composition:chassis,fire pump,PTO,storage compartment,long-line lights and fire monitor,fire
fighting tools and ect.
(4) Fire fighting truck is specially used for fire fighting vehicles or other emergency rescue purposes. It can
be devided into pump truck(water supple vehicle sprinkling water or fire), aerial(high save) and other special
vehicles according to their function.
(5) Fire Pump: Model: CB10/20 car fire pump, flow rate: 20L / s, and pressure: 1.0MPa
In the low-pressure pump: Model: the CB10.20/20 fire pump, low pressure flow: 40L/s/1.0MPa,
medium-pressure flow: 20L/S/2.0MPa
Fire Gun: Model: PP24-type dual-use fire monitor traffic: 48L/s/1.0MPa water range ≥ 50 m bubble range
of ≥ 45 m.The pitcher Fire gun: Model: SP40, water and a range of ≥ 55 m
(6) working principle : the body as a whole square tube steel structure, stainless steel water of a tank. The
front section for the pumping station, the central part of the water of a tank, the rear of the equipment box,
made of aluminum alloy assembly framework, classification clamping equipment, good looks. Each of the
φ135mm the intake, through four suction pipe at the top of the body from the water absorbent on both sides
of the car. Four outlet of the pump is located on both sides of the pumping station is equipped with a φ80 the
demand valve to control water.
Technical Parameters
| Vehicle main technical information: | ||
| Product Name | SINOTRUCK STEYR water tank fire truck | |
| water tank volume | 12-15ton | |
| Dimension(L*W*H) | 10025×2500×3600mm | |
| Gross weight | 27600kgs | |
| Rated capacity | 12350kgs | |
| Curb weight | 14800kgs | |
| Approaching/Departure Angle | 16/13(°) | |
| Front/Rear suspension | 1500/2490mm | |
| Max.speed | 85km/h | |
| Chassis Parameters: | ||
| Chassis Brand | SINOTRUCK | |
| Chassis model | ZZ1257M4647C | |
| Drive type | 6X4 | |
| Fuel Type | Diesel | |
| Tire Specification | 11.00-20,12.00-20 | |
| Tire No. | 10 | |
| Wheelbase | 4600+1350,4575+1400mm | |
| Alex No. | 3 | |
| Leaf Spring No. | 10/12,4/12,10/- | |
| Front trend | 2022,2041/1830/1830mm | |
| Rear trend | 1830/1830mm | |
| Passengers in cab | 2+4 | |
| Engine Parameters: | ||
| Manufacturer | China Heavy Duty Automobile Group | |
| Model | WD615.93E | |
| Horse Power | 290HP | |
| Displacement/Power | 9726ml/213kw | |
| Emission standard | Euro 3 | |
| Special function | ||
| fire pump model | CB10/60 | |
| fire pump flow | 60L/s | |
| fire monitor | model | SP50 |
| range(m) | ≥60 | |

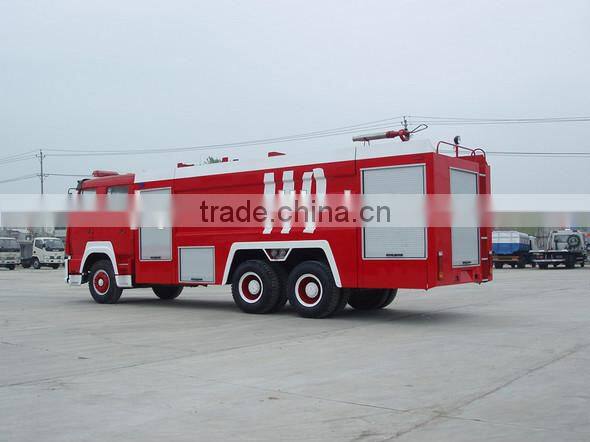

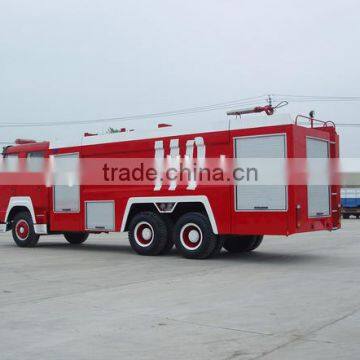

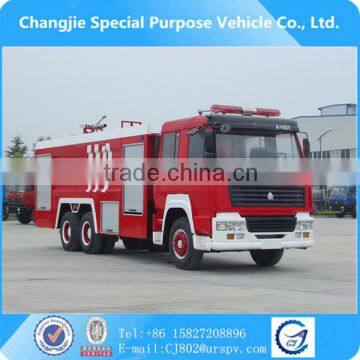

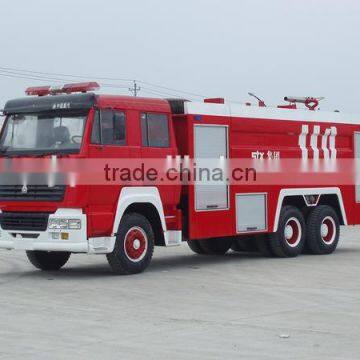

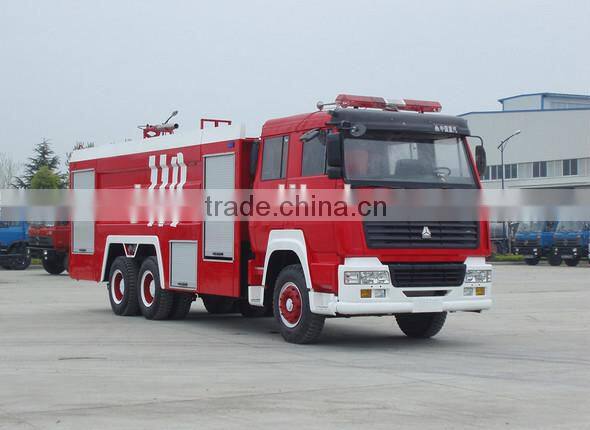

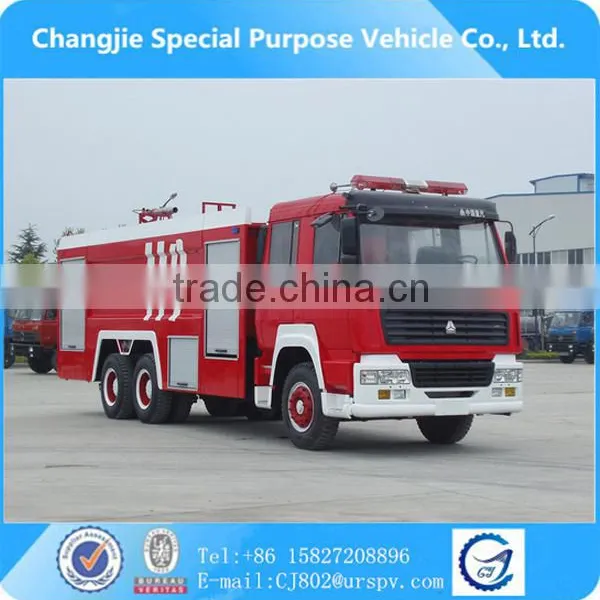

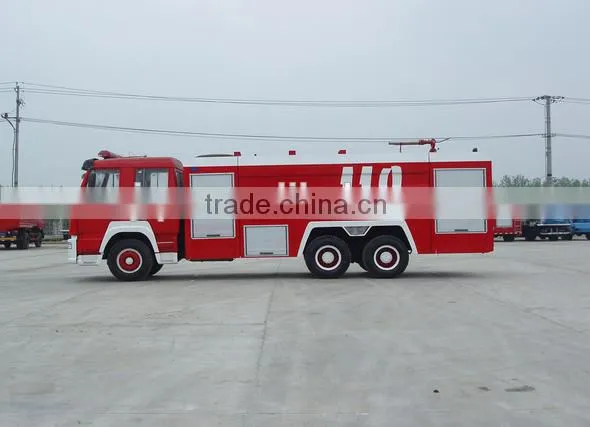

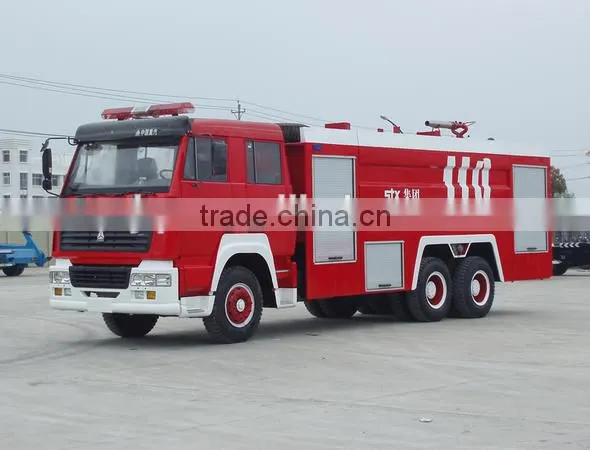

Product images
