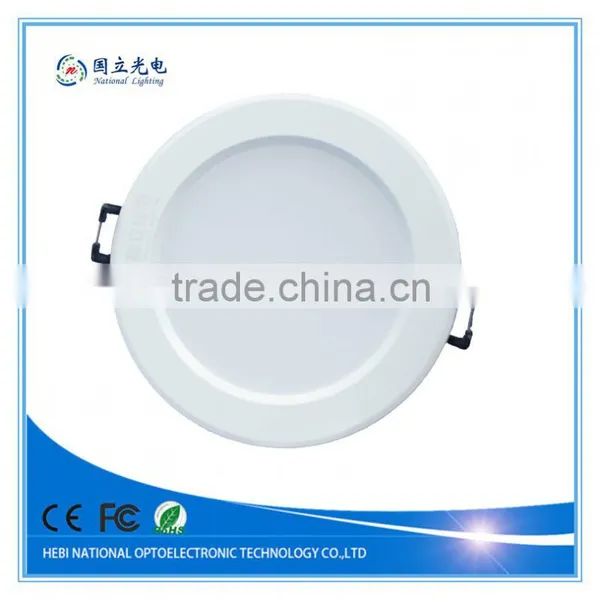

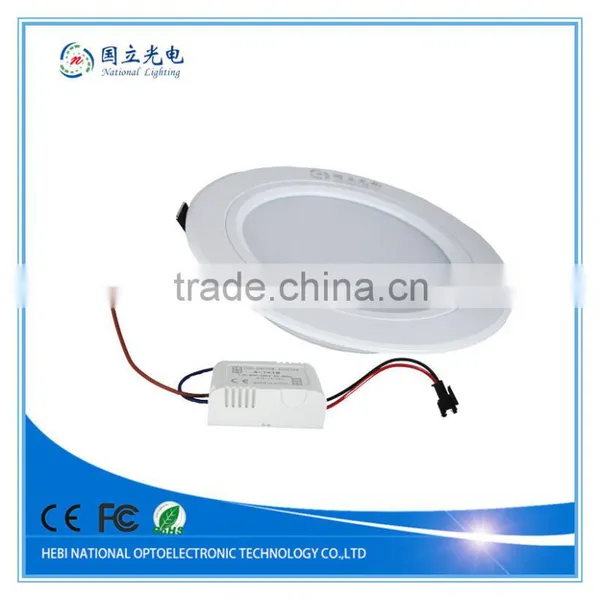

New Design 12W Round Led Panel Light /led Panel Downlight
US$ 1 - 7
MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar
Warranty(Years):
3
Input Voltage(V):
AC85-265V
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Led Panel Downlight With CE CertificationUS$ 1 - 7MOQ: 1 Piece -
Led Panel Ceiling Lighting Round Led Recessed Downlight 12WUS$ 1 - 7MOQ: 1 Piece
-
Led Panel Downlight 18W 8inch Round Led Ceiling Panel LightingUS$ 1 - 7MOQ: 1 Piece
-
CE ROHS Certified Cut Hole D110mm Led Al Panel Down Light 12w White Color FrameUS$ 1 - 7MOQ: 1 Piece
-
Led Ceiling Downlight Led Panel AC85-240V CE/Rohs 4inch 6inch 8inch 10inchUS$ 1 - 7MOQ: 1 Piece
LED Light Source
Epistar
Warranty(Years)
3
Input Voltage(V)
AC85-265V
Lamp Power(W)
12
Lamp Luminous Flux(lm)
800
Lamp Luminous Efficiency(lm/w)
70
Color Temperature(CCT)
Pure White
Working Temperature(℃)
-20, 50
Working Lifetime(Hour)
50000
Lamp Body Material
Aluminum Alloy
IP Rating
Other, IP40
Certification
CE, GOST, REACH, SAA
Model Number
NL-TD-02
Place of Origin
China
Brand Name
nled
New design 12W round led panel light /led panel downlight
Feature
• Super bright, SMD5730 LED chip; 6030 Aluminum+Acrylic(PMMA) diffuser, better heat dissipation
• Professional light guide plate, 95% light transmittance
•PMMA plate, no darkness, smooth light
• quick delivery and excellent after sale service!
Applications:
Landscape , Architectural ,Entertainment , Restaurants, hotels, Ambient , Art galleries ,household Living room,bedroom,kitchen,washroom
Conference,meeting room,show room, showcase
School,university,hospital,hotel
Supermarket,department store etc.
Specification:
| Item | Size | Power Consumption (W) | Chips | Operating Voltage Range (VAC) | Luminous Flux (lm) | CCT (K) | Beam Angle | CRI(Ra) | Material |
| 1 | Panel Dia. 90 mm Hole Dia. 70mm | 3W | Epistar SMD5730 | 100-265V | > 200lm | 2700-3000k(WW) 6000-6500k(CW) | ≥120° | ≥80 |
Aluminum+Acrylic (PMMA) diffuser |
| 2 | Panel Dia. 100 mm Hole Dia. 80mm | 3W | > 200lm | ||||||
| 3 | Panel Dia. 110 mm Hole Dia. 85mm | 5W | >350lm | ||||||
| 4 | Panel Dia. 118 mm Hole Dia. 95mm | 7W | > 500lm | ||||||
| 5 | Panel Dia. 145 mm Hole Dia. 110mm | 9W | > 650lm | ||||||
| 6 | Panel Dia. 145 mm Hole Dia. 110mm | 12W | >800lm | ||||||
| 7 | Panel Dia. 180 mm Hole Dia. 140mm | 15W | >1100lm | ||||||
| 8 | Panel Dia. 190 mm Hole Dia. 155mm | 18W | >1300lm | ||||||
| 9 | Panel Dia. 230MM Hole Dia. 200mm | 18W | >1300lm |
