CE ROHS certified Cut hole D110mm Led Al panel down light 12w White color frame
US$ 1 - 7
/ Piece
1 Piece(Min. Order)
- China port
- T/T D/P D/A Credit Card
You May Like
-
led ceiling downlight led panel AC85-240V CE/Rohs 4inch 6inch 8inch 10inch
-
New design China Factory LED Ceiling Downlight LED light panel
-
New design Al shell LED Ceiling Downlight LED light panel PMMA COVER
-
Top Quality High Lumen CE ROHS 3W 5W 7W 9W 12W led downlight
-
18W LED Downlight high lumen indoor SMD LED Downlight
-
CE approved cut out 95mm 12w round led downlight
Product Details
| LED Light Source | Epistar | Warranty(Years) | 3 | |
| Input Voltage(V) | AC85-265V | Lamp Power(W) | 12 | |
| Lamp Luminous Flux(lm) | 800 | Lamp Luminous Efficiency(lm/w) | 70 | |
| Color Temperature(CCT) | Pure White | Working Temperature(℃) | -20, 50 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
| IP Rating | Other, IP40 | Certification | CE, GOST, REACH, SAA | |
| Model Number | NL-TD-02 | Place of Origin | China | |
| Brand Name | nled |
Product Description
CE ROHS certified Cut hole D110mm Led Al panel down light 12w White color frame
Feature
• Super bright, SMD5730 LED chip; 6030 Aluminum+Acrylic(PMMA) diffuser, better heat dissipation
• Professional light guide plate, 95% light transmittance
•PMMA plate, no darkness, smooth light
• quick delivery and excellent after sale service!
Applications:
Landscape , Architectural ,Entertainment , Restaurants, hotels, Ambient , Art galleries ,household Living room,bedroom,kitchen,washroom
Conference,meeting room,show room, showcase
School,university,hospital,hotel
Supermarket,department store etc.
Specification:
| Item | Size | Power Consumption (W) | Chips | Operating Voltage Range (VAC) | Luminous Flux (lm) | CCT (K) | Beam Angle | CRI(Ra) | Material |
| 1 | Panel Dia. 90 mm Hole Dia. 70mm | 3W | Epistar SMD5730 | 100-265V | > 200lm | 2700-3000k(WW) 6000-6500k(CW) | ≥120° | ≥80 | Aluminum+Acrylic (PMMA) diffuser |
| 2 | Panel Dia. 100 mm Hole Dia. 80mm | 3W | > 200lm | ||||||
| 3 | Panel Dia. 110 mm Hole Dia. 85mm | 5W | >350lm | ||||||
| 4 | Panel Dia. 118 mm Hole Dia. 95mm | 7W | > 500lm | ||||||
| 5 | Panel Dia. 145 mm Hole Dia. 110mm | 9W | > 650lm | ||||||
| 6 | Panel Dia. 145 mm Hole Dia. 110mm | 12W | >800lm | ||||||
| 7 | Panel Dia. 180 mm Hole Dia. 140mm | 15W | >1100lm | ||||||
| 8 | Panel Dia. 190 mm Hole Dia. 155mm | 18W | >1300lm | ||||||
| 9 | Panel Dia. 230MM Hole Dia. 200mm | 18W | >1300lm |

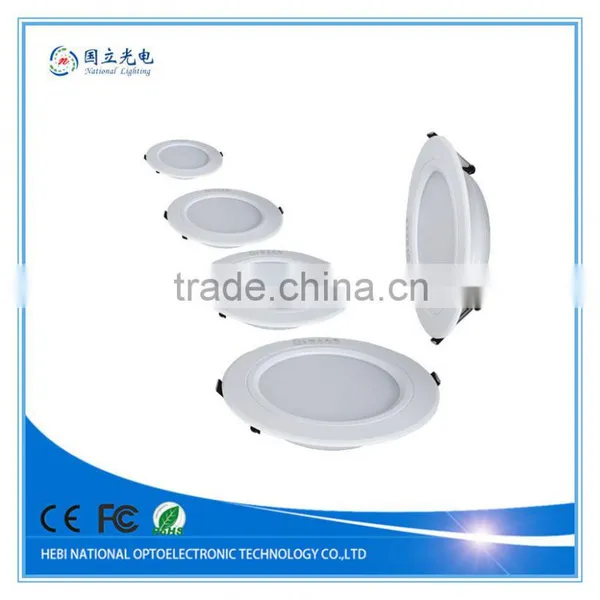

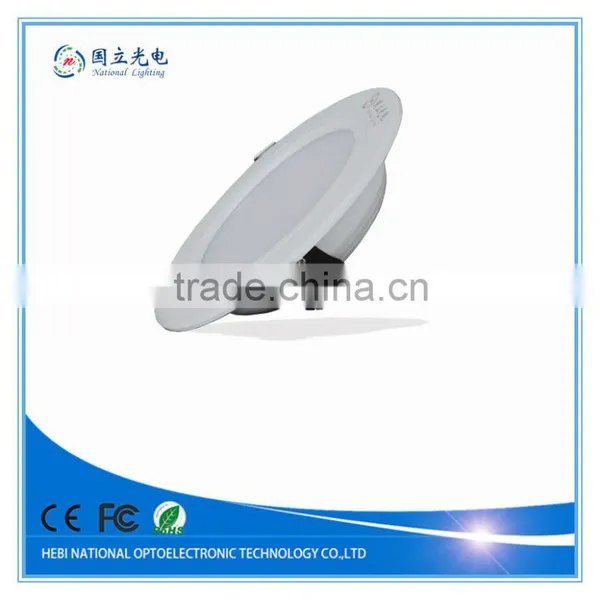

Product Picture
