4x2 dongfeng 9000L chemical liquid tank truck dimensions
Our company is a professional CHEMICAL LIQUID VEHICLE manufacturer for 10 years
Any questions,contact me without hesitation on 135-9782-6887
Product features
1. Media for carrying:widely used in loading and unloading of acid, alkali, salt and othercorrosive
and dangerous media.Including hydrochloric acid,sulphuric acid,acetic acid,hydrogen peroxide,ortho-phosphoric acid,ammonia,sodium hydrate,potassium hydroxide,sodium hypochlorite,formaldehyde,
ethanol,dimethylbenzene,isopropyl alcohol,dimethylamine,naphtha,and others.
2. Tank material:carbon steel,stainless steel,steel lined with plastic,full plastic,aluminumand aluminum
alloy,etc.
3. Tank shape:round square,oval,round
4. Pump:high quality special chemical pump
5. Compartment:maybe divided into different spaces for carrying different chemical products and liquid food.
6. the internal is provided with a plurality of plastic swash bulkhead,through a comprehensive high-pressure airtight test,the tank body of high strength, stable gravity center,stable safe vehicle transportation.
7. High efficiency:maximum loading capacity and lightweight technology
Product description
| Product Name | Dongfeng 4x2 chemical liquid tank truck | |
| Product model | Dongfeng duolika | |
| Tank volume | 9000 liters | |
| Tank Size | 4500*1910*1300mm (length*long axis*minor axis) | |
| Main parameters | Overall size(L*W*H) | 6900*2300*2680mm |
| Gross weight | 9400kgs | |
| Rated capacity | 4400kgs | |
| Curb weight | 4805kgs | |
| Approaching/Departure Angle | 18/10(°) | |
| Front/Rear suspension | 1180/1920mm | |
| Axle loading | 3460/5940 | |
| Max.speed | 80km/h | |
| Chassis | Chassis Brand | Dongfeng |
| Chassis model | EQ1090T9ADJ3AC | |
| Drive type | 4*2 | |
| Fuel Type | Diesel | |
| Tire Specification | 8.25-16,7.50-16,8.25R16,7.50R16 | |
| Tire No. | 6 | |
| Wheelbase | 3800mm | |
| Alex No. | 2 | |
| Leaf Spring No. | 11/9+7,8/10+7 | |
| Front trend | 1831,1750mm | |
| Rear trend | 1847/1847mm | |
| Engine | Manufacturer | Chaoyang power Co.,Ltd. |
| Model | CY4102-E3C | |
| Horse Power | 124HP | |
| Displacement/Power | 3856ml/91kw | |
| Emission standard | Euro 3 | |

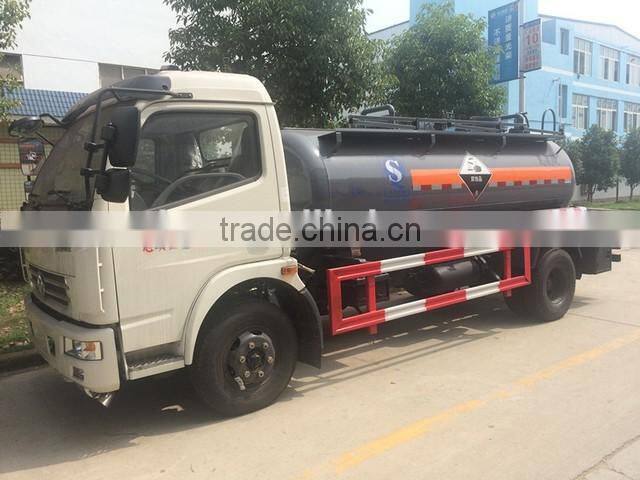

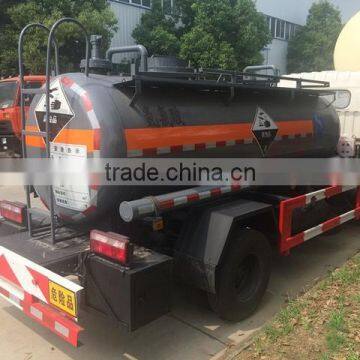

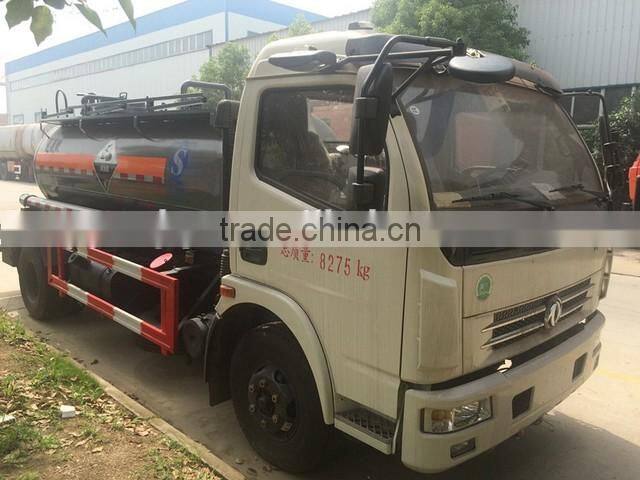

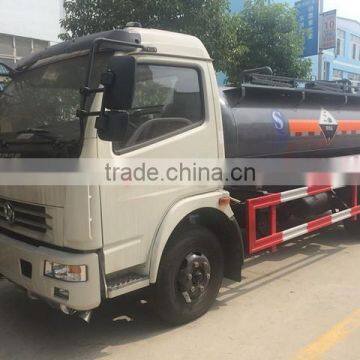

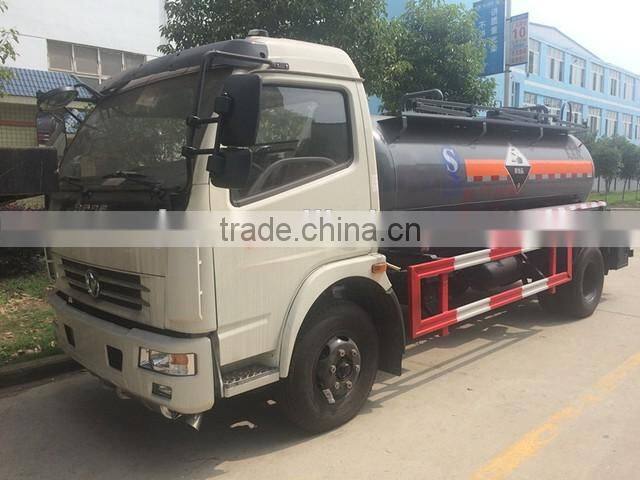

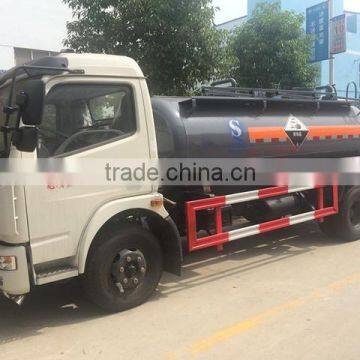

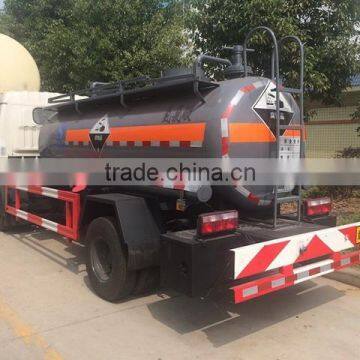

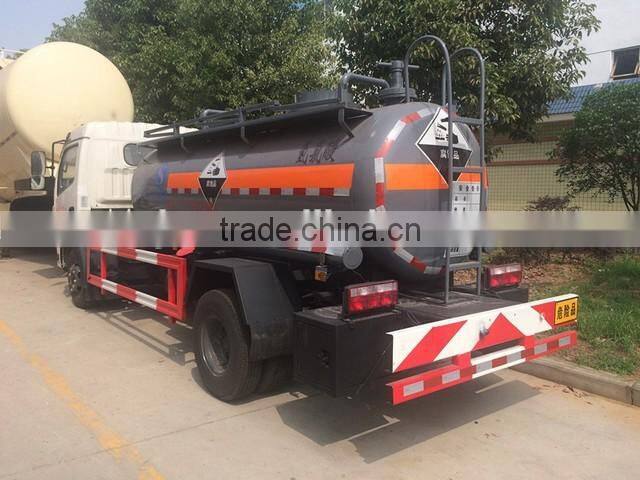

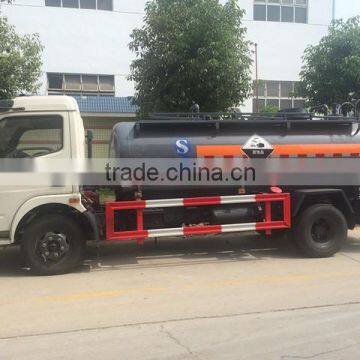

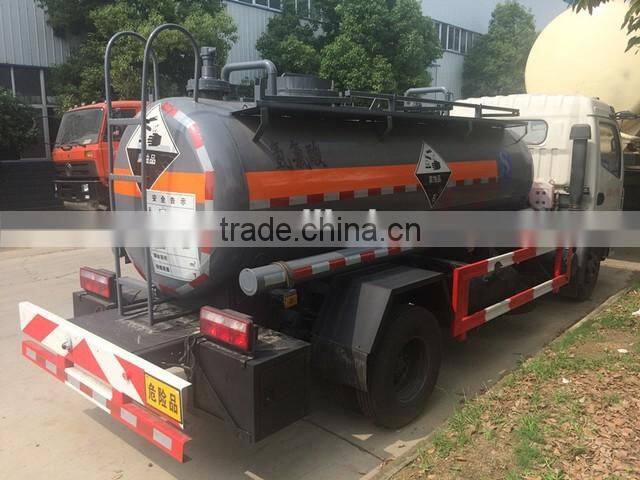

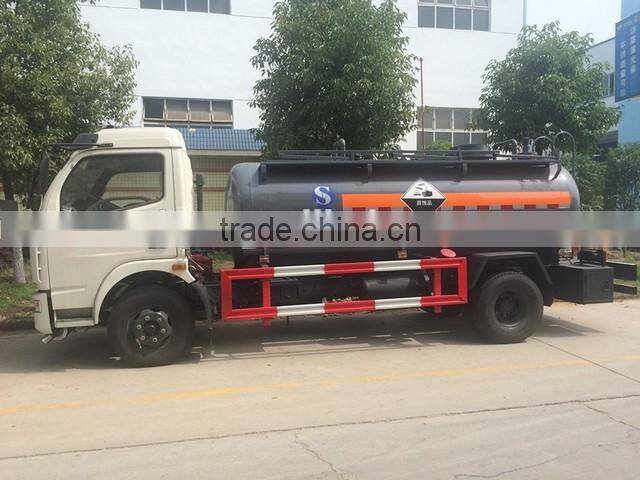

Product pictures

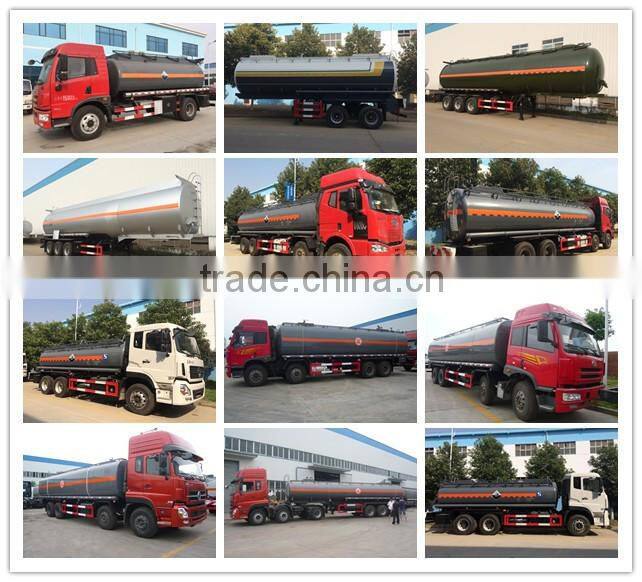

Similar Products:

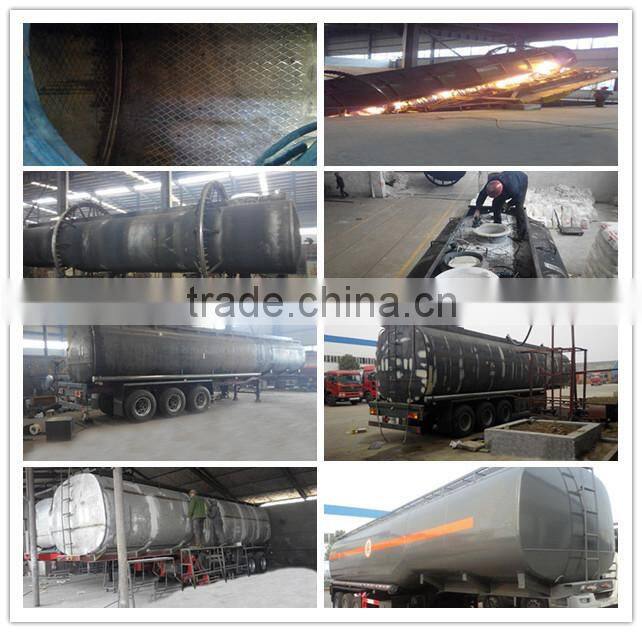

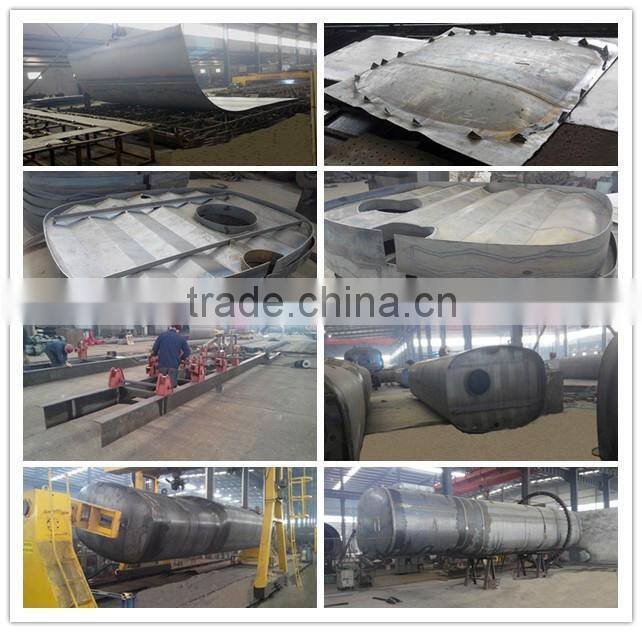

Production workshop
Production equipment
WHY CHOOSE US?
- Experience
- 10 years experience of production,sales,research and development in the field of special trucks.
- Specialization
- OEM&ODM is available,we can produce according to your demand, the material,the size, the color and the logo is optional for you.
- Good Quality
- has solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system and passed the ISO9001-2008 and the 3C (China Compulsory Certification),with SGS,BV certifcate as well.
- Chassis supply
- we have a very good long term cooperation relationship with chassis manufacturer,such as DONGFENG,FOTON,SINOTRUCK,SHACMAN,IVECO,FAW,HINO,CAMC,NORTH-BENZ,ect.
- Production supply capacity
- Company Scale: More than 3000 employees with 1000 acres factory, total asset 2 billion.
- We manufacture the truck as soon as possible once your order confirmed. And for the stock, we can delivery it immediately.
- Our services
- 1. we can send our technician to arrive the customer's country to provide the service and also we can train customer‘s workers for free.
-
2. free consultation forever. When you meet small problems, professional advices can help you to solve them soon.
3. One year free cost warranty.
4. Spare parts forever. When you need spare parts, we can send them to you immediately.
Hubei Changjie Special Automobile Co., Ltd. , is a professional manufacturer of special automobiles for 10 years. Our company has independent export authority, and has a lot of overseas clients.
Our leading products include more than 8 series and 100 types of trucks such as water trucks, tank trucks, garbage trucks, fecal suction trucks, sewage suction trucks, dump trucks, van trucks, semi-trailers, wrecker trucks, trucks with cranes, high-altitude operation trucks, training trucks, bulk cement trucks, chemical liquid trucks, fire engines, truck fittings, cement mixers and tractors. At the same time, we deal with wholesale chassis.
Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, we have obtained ISO9001 and CCC certificates (China Compulsory Certification).
Our survival is based on the quality.Credit standing is the guarantee of our success. We will endeavor to treat customers honestly, managing flexibly, guaranteeing high quality but low price, and keeping high efficiency. We promise that all the products that are adapted and sold by us can get one-year services and maintenance for the life.
