Welcome to Hubei Changjie Special automobile co,ltd~
Product Features
1. Touch screen operation, visual in image, easy to master.
2. Nozzle control alone, The sprinkle cloth width can be adjusted.
3. Double distributing pipe, to ensure every spray nozzle have uniform spraying pressure and spray evenly.
4 Asphalt distribution combination valve controlled by electric cyclone twist, reliable and simple operation.
5. Equipped with two sets of control systems (cab and after operation platform), to ensure the reliability and convenience of the asphalt spraying.
6. Automatic heat conduction oil heating system, all-round heating asphalt pump, distributing pipe, nozzle and tanks
7. The unique low speed and large displacement asphalt pump, it ensure the sprinkle effective of all kinds of asphalt.
8. Self-priming device, can be loaded to external asphalt, hand device can be processing to the marginal area.
9. Diesel fuel and air cleaning system, can be clean the asphalt pump, valve, pipe and nozzle more convenient and more thoroughly .

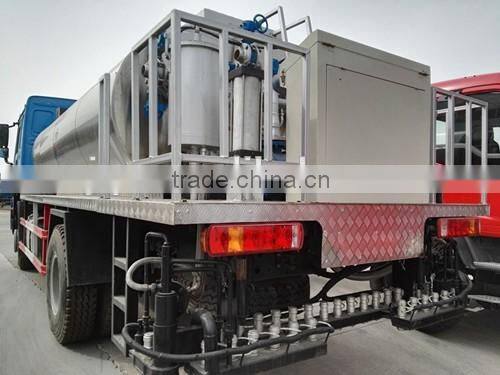

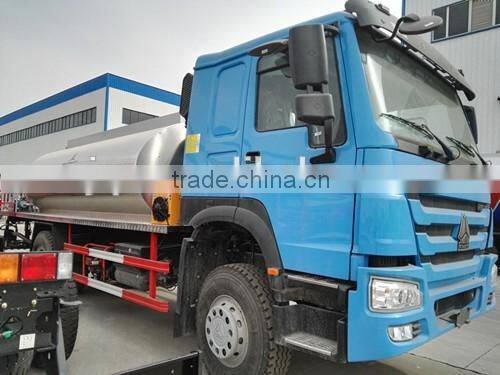

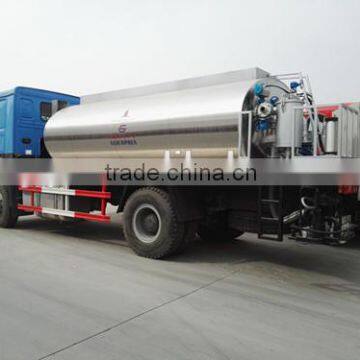

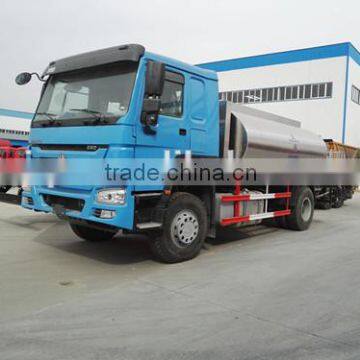

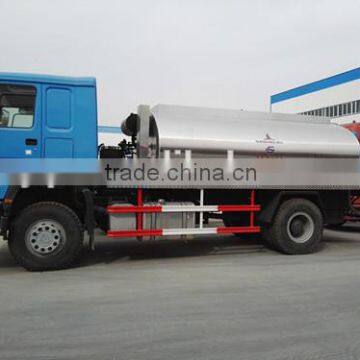

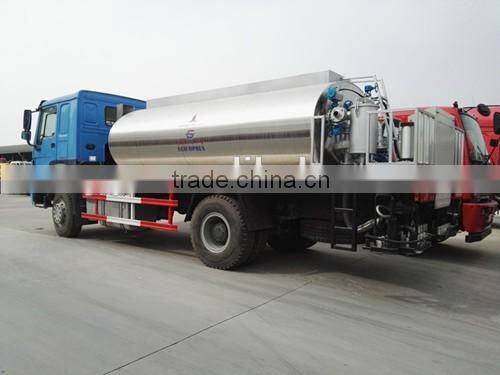

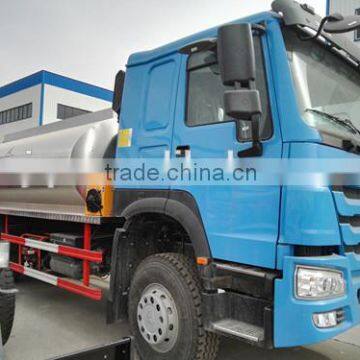

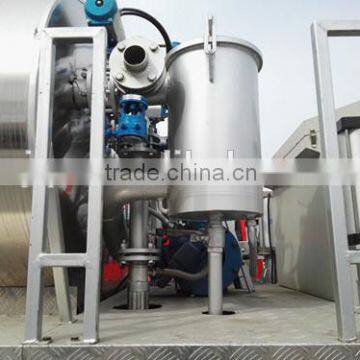

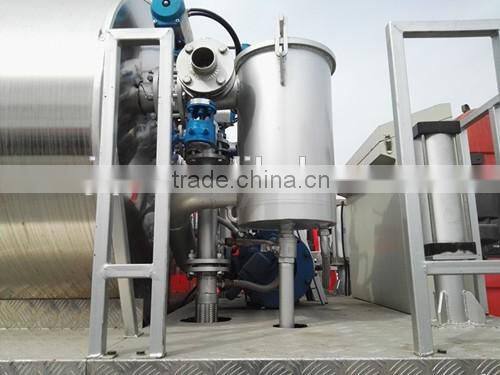

Product images
Technical Parameters
| Item | Parameters |
| Product name | howo 4*2 asphalttruck |
| Vehicle model | CLW5250GLQZ |
| Chassis model | ZZ1257M4647C |
| Dimension(L*W*H)(mm) | 10100X2500X3563 |
| Gross weight(kg) | 25000 |
| Rated weight(kg) | 9000 |
| Kerb weight(kg) | 15870 |
| Wheelbase(mm) | 4575+1400 |
| Tyre size | 11.00-20,11.00R |
| Horse power(hp) | 267-300 |
| No. of Bitumen Nozzle | 48 |
| Spraying width | 4.5-6m |
| Asphalt spraying volume | 0.2-4.0kg/m2 |
| Working speed(Km/h) | 1.2~6.5 |
| Spray volume(L/m2) | 0.2-3.5 |
| Asphalt tank volume(m3) | 10 |
| Hydraulic system | made in china or made in Germany |
| Control system | made in Germany |
| Burner | made in Italy |
| Heat preservation mode | heat transfer oil heat preservation |
| Spaying medium | hot asphalt,hot modified asphalt,diluted asphalt |

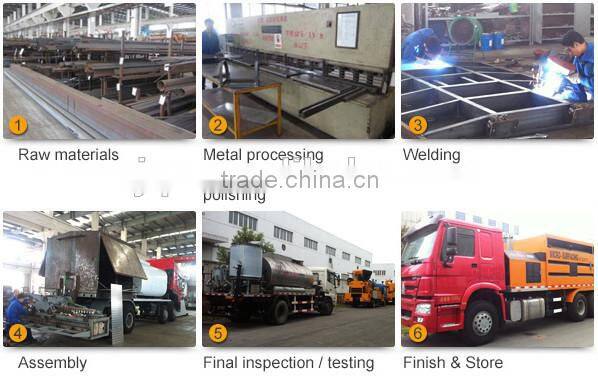

Production process
Our main products
Our factory
Our customer
