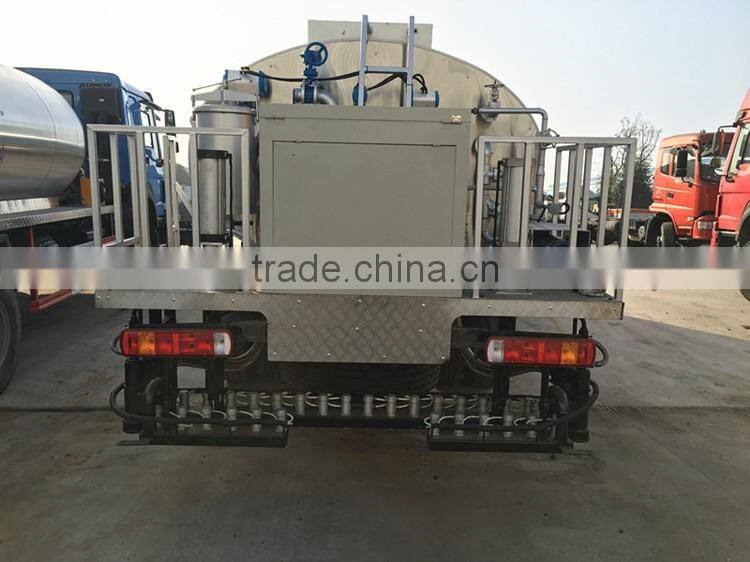

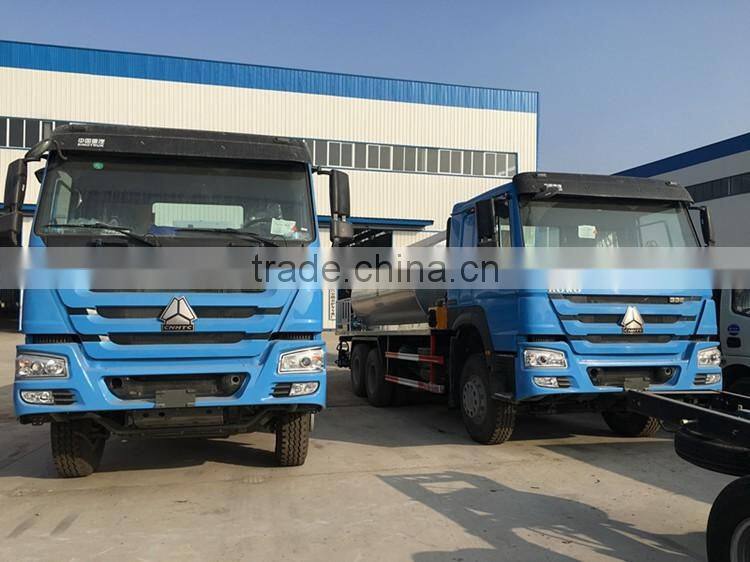

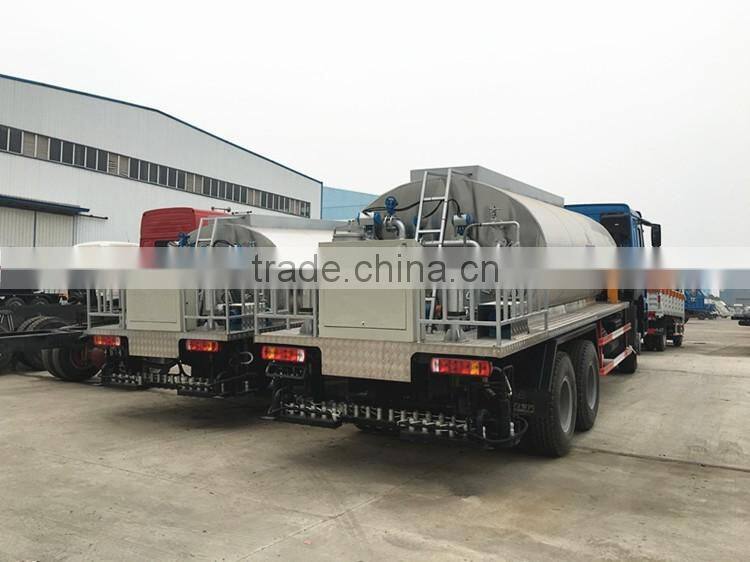

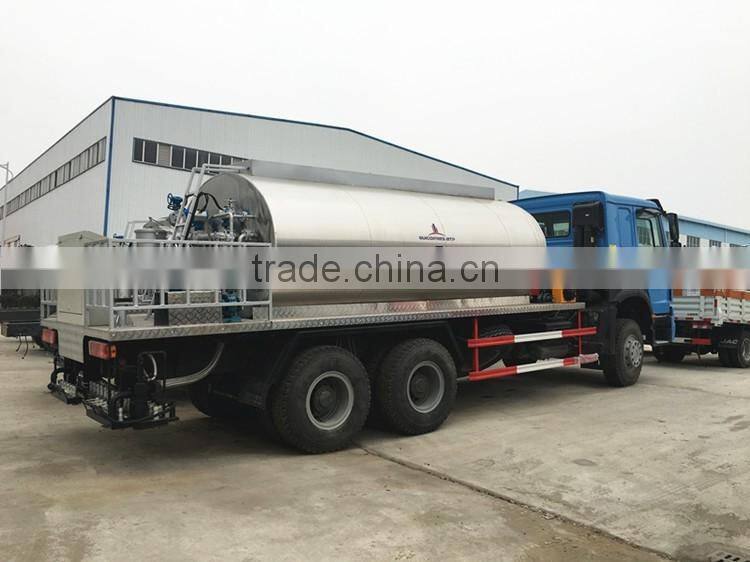

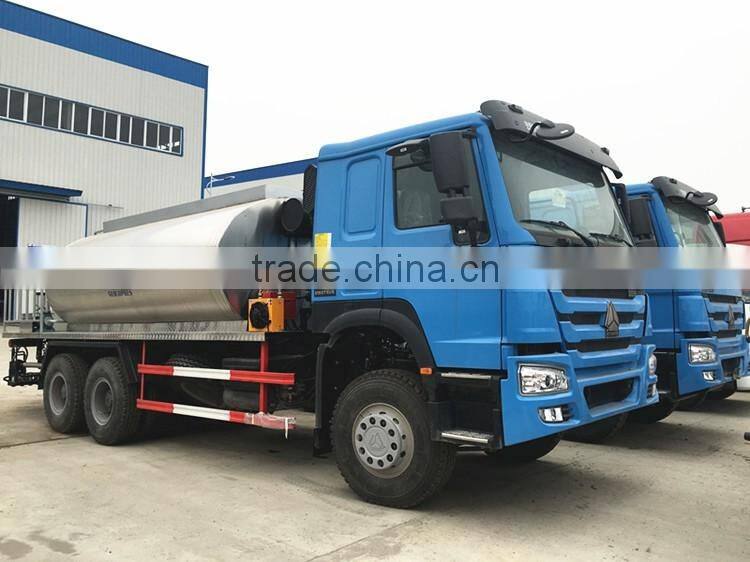

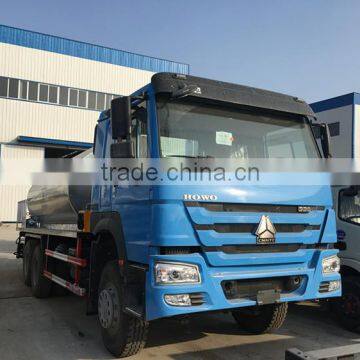

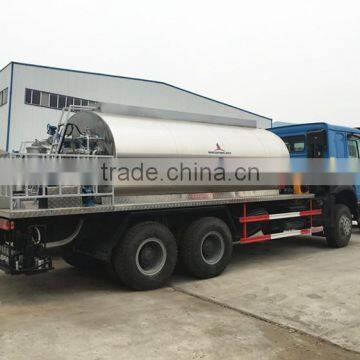

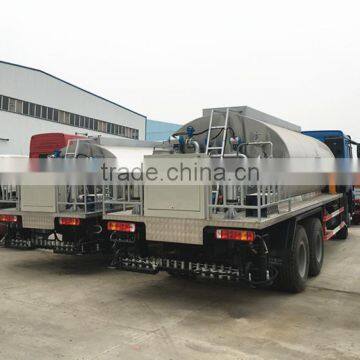

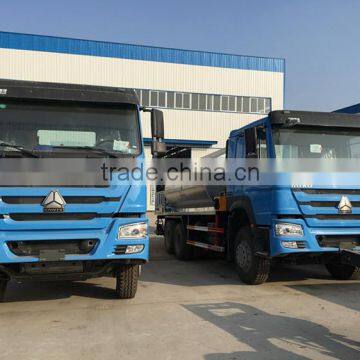

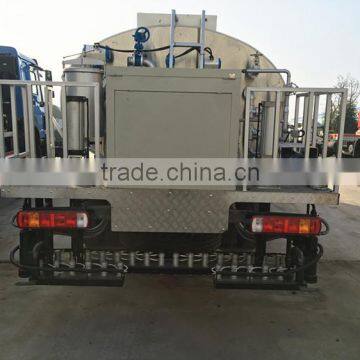

| 12000L asphalt/bitumen tank truck,bitumen transportation tank |
Product features:
1. Touch screen operation, visual in image, easy to master.
2. Nozzle control alone, The sprinkle cloth width can be adjusted.
3. Double distributing pipe, to ensure every spray nozzle have uniform spraying pressure and spray evenly.
4 Asphalt distribution combination valve controlled by electric cyclone twist, reliable and simple operation.
5. Equipped with two sets of control systems (cab and after operation platform),to ensure the reliability and
convenience of the asphalt spraying.
6. Automatic heat conduction oil heating system,all-round heating asphalt pump,distributing pipe,nozzle and
tanks.
7. The unique low speed and large displacement asphalt pump, it ensure the sprinkle effective of all kinds of
asphalt.
8. Self-priming device,can be loaded to external asphalt, hand device can be processing to the marginal area.
9. Diesel fuel and air cleaning system, can be clean the asphalt pump, valve, pipe and nozzle more convenient
and more thoroughly.
| Item | Parameters |
| Product name | howo 6x4 asphalt distributor truck |
| Vehicle model | sinotruk |
| Chassis model | ZZ1257M4647C |
| Overall size | 10100*2500*3420mm |
| Gross weight | 25000kgs |
| Rated weight | 9000kgs |
| Kerb weight | 15870kgs |
| Wheelbase | 4600+1350,4575+1400mm |
| Tyre size/no. | 11.00R20/11pieces |
| Engine | WD615.97E/300hp by China heavy duty automobile group |
| Asphalt tank volume | 12000-14000L |
| Hydraulic pump | made in Germany |
| Proportional valve | EFBG-03-160-HF |
| Overflow valve | made in China |
| Directional valve | made in China |
| Burner | made in Italy |
| Generator | 5.5kw gasoline type by Honda |
| Heat preservation mode | heat transfer oil heat preservation |
| Spraying width | 4.5-6m |
| Asphalt spraying volume | 0.2-3L/m2 |
| Spaying medium | hot asphalt,hot modified asphalt,diluted asphalt |
