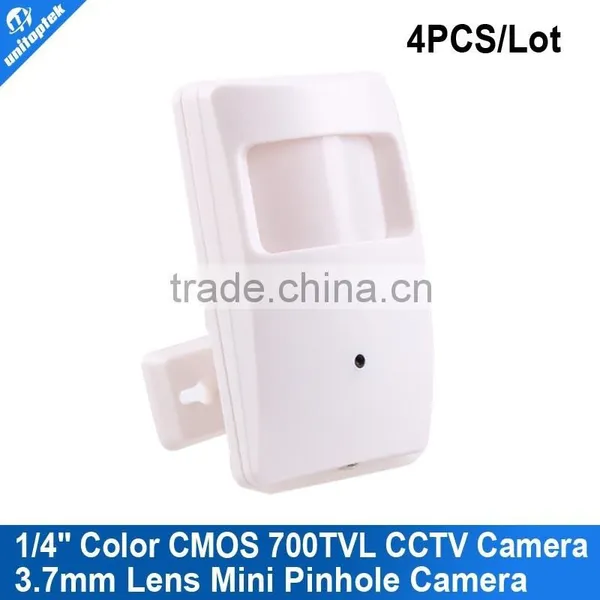

700TVL 1/4" Color CMOS 3.7mm Lens Mini Indoor/Outdoor Security CCTV Camera 4pcs/lot
Features Of the Camera:
Image Sensor:1/4" Color CMOS
DSP: 139+8510
Horizontal Resolution :700TVL
Effective Pixel:NTSC:720(H) 487(V) PAL:720 (H) 576(V)
Min. Illumination :0.001 Lux (F1.2)/ 0 Lux IR On
Signal System: NTSC/PAL
Lens: 3.7mm
Camera Type: Indoor/Outdoor
Power Supply: DC12V/65MA
Specification Of the Camera:
Model |
MC30170 |
Image Sensor |
1/4" Color CMOS |
DSP |
139+8510 |
Horizontal Resolution |
700TVL |
Effective Pixel |
NTSC:720(H) 487(V) PAL:720 (H) 576(V) |
Min. Illumination |
1 Lux (F1.2)/ 0 Lux IR On |
Signal System |
NTSC/PAL |
Electronic Shutter |
1s~1/1,000 |
S/N Ratio |
More than 50dB |
Gamma |
0.45 |
Exposure |
Auto |
White Balance |
Auto |
Backlight |
Auto |
ATR |
Auto |
IR CUT |
Support |
Day/Nigh |
True Day and Night (Auto/ Day / Night / Ext. D&N) |
Sync. System |
Internal |
Audio Output |
Optional |
Video Output |
1 Vp-p / 75 Ohms |
Working Conditions |
-20~60Degree/0-93% Humidity |
Power Supply |
DC12V/65MA |
Note: 3.7mm lens, PAL SYSTEM,white housing color default for this camera. If the buyer want other size
lens,other system,other color, please Leave Message to notify us when bidding.

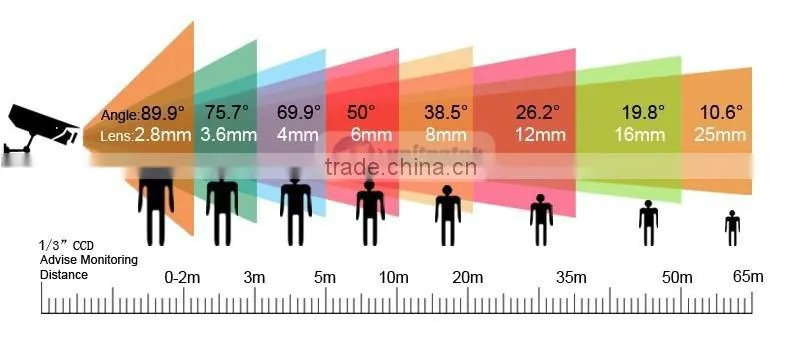

LENS |
2.8mm |
3.6mm |
4mm |
6mm |
8mm |
12mm |
16mm |
25mm |
60mm |
ANGLE |
89.9° |
75.7° |
69.9° |
50.0° |
38.5° |
26.2° |
19.8° |
10.6° |
--- |
DISTANCE |
0-4M |
0-5M |
0-6M |
5-10M |
10-20M |
20-35M |
35-50M |
50-80M |
--- |

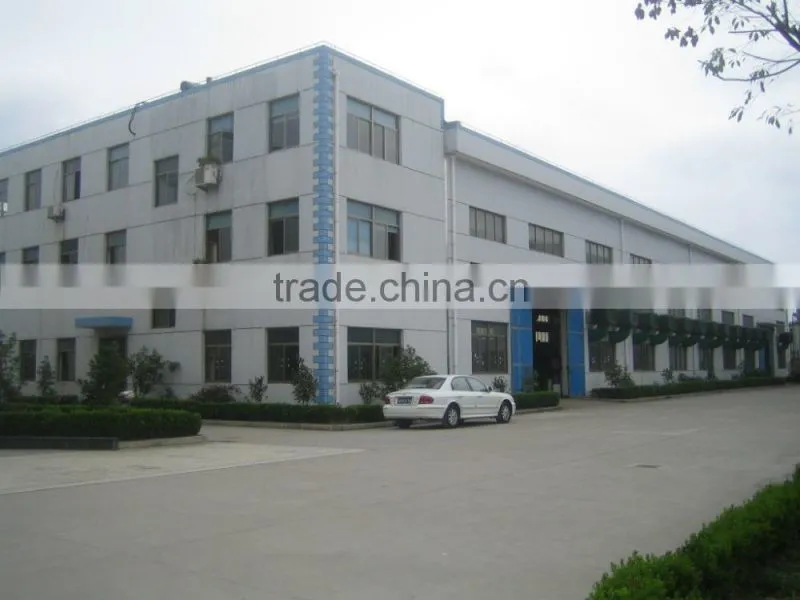

ShenZhen Unitoptek Eletronics CO ,.Ltd.is a manufacture of surverlliance and security products with well-equipped testing equipment and strong technical force.with a wide range.good quality.resonable price.and style designs.our products are extensively used in mercial business and other industries.

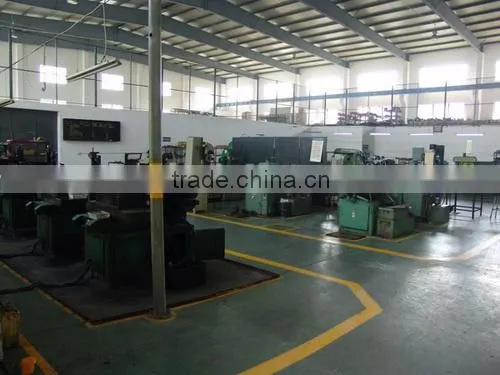

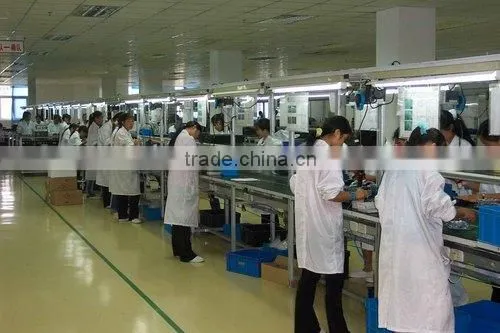

Production Equipment
unitoptek devoted to eas security related products desigin and manufacturing.our products with best design and qualiy.
Quality Control
QA/QC Introduction
Shenzhen Unitoptek electronics co.,ltd have been paid much more attention to product quality control and strictly executed quality management system standard of ISO9001: 2008 to serve our customers at the highest quality requirements. All the unitoptek products pass domestic and overseas CCC, CE, FCC and RoHS approvals.
Packaging Details
