4Pcs 2.0MP Fisheye lens 360 Degrees View 2MP IR Indoor Dome Camera 4CH Surveillance Security CCTV System

HD-CVI

HD-SDI

CVBS

IP CAMERA

Resolution Pixel

1MP/1.3MP

(720P/960P)

1MP/2MP

(720P/1080P)

Max 552,960pixel

Unlimited

Image Quality

HD,Real-time,Lossless Compression

HD,Real-time,

Lossless Compression

Standard,Real-time,Lossless Compression

HD,lossy Compression

Coaxial Control

Support

Extra Device

Extra Device

Support

Coaxial Audio

Support

  Support

Not Support

Support

Transmission Delay

No delay

No delay

No delay

Network latency

Transmission Medium

SYV75-3 Coaxial Line

More than SYV75-5 Coaxial Line

SYV75-3 Coaxial Line

Cat5 Ethernet Cable

Transmission Distance

1-500M

1-100M

1-500M

1-100M

Construction Deployment

Easy Operate

Easy Operate

Easy Operate

Complex

Anti-interference

Strong

Weak

Strong

Stronger

Transmission Reliability

High

Low

High

Low

Total Cost

Cheap

Expensive

Cheap

Reasonable

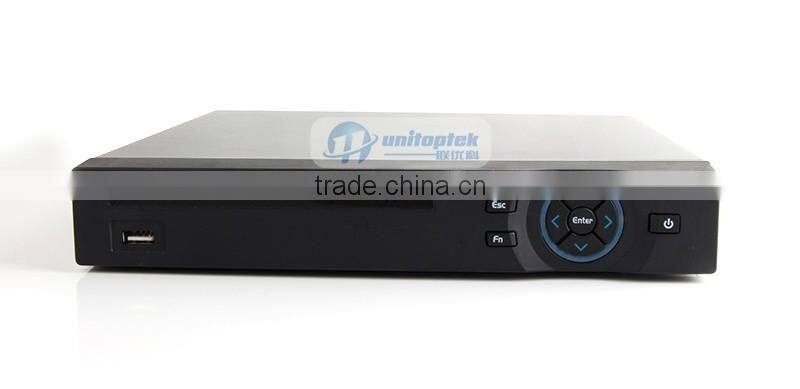

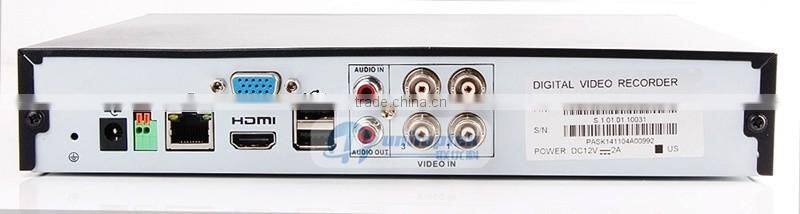

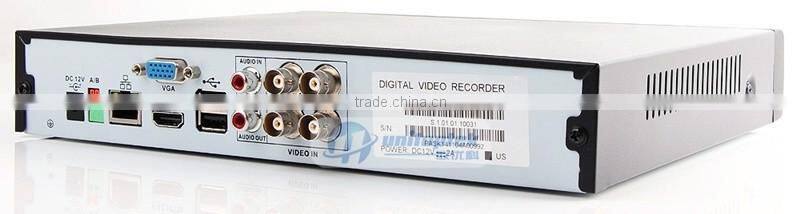

Model

SCVR5104

System

Main Processor

Embedded processor

Operating System

Embedded LINUX

Video

Input

4 channel,

Audio

Input

1 channel, RCA

Output

1 channel, RCA

Two-way Talk

NO

Display

Interface

1 HDMI, 1 VGA

Resolution

1920× 1080, 1280× 960, 1280× 720,

Display Split

1/4

Privacy Masking

4 rectangular zones (each camera)

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Video/Audio

Compression

H.264

Resolution

1080P/720P/960H /D1/HD1/2CIF/CIF/QCIF

Extra Stream

CIF/QCIF(1~25/30fps)

Bit Rate

1536Kbps-8192Kbps,customized,up to 6144Kbps

Record Mode

Manual, Schedule(Regular(Continuous), MD), Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300sec

Video Detection & Alarm

Trigger Events

Recording, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones: 396(22× 18), Video Loss & Camera Blank

Alarm Input

NO

Alarm Output

NO

Playback & Backup

Sync Playback

1/4

Search Mode

Time/Date, MD & Exact search (accurate to second)

Backup Mode

USB Device / Network

Network

Ethernet

RJ-45 port (10/100/1000M)

Network Functions

HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter

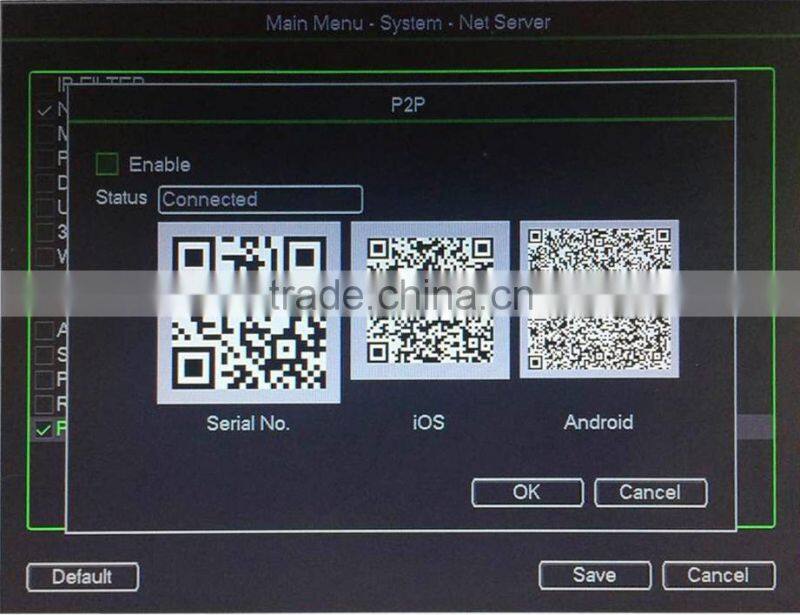

Smart Phone

Android, Windows Phone ,IOS

Storage

Internal HDD

1 SATA port, up to 4TB

Auxiliary Interface

USB Interface

2 ports(1 Rear), USB2.0

General

Power Supply

DC12V/2A

Power Consumption

≤15W(without HDD)

Working Environment

-10 ~+55 / 10~90%RH / 86~106kpa

Dimension

 Packing:30*29*11.5cm , only dvr:25.8*23.5*4.3cm

Weight

Packing:1.35kg(without HDD) , only dvr:0.85kg

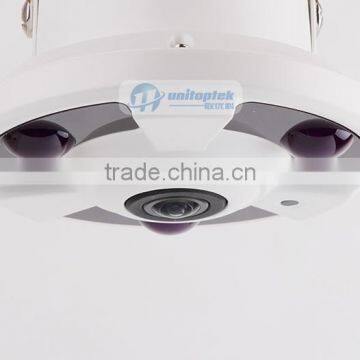

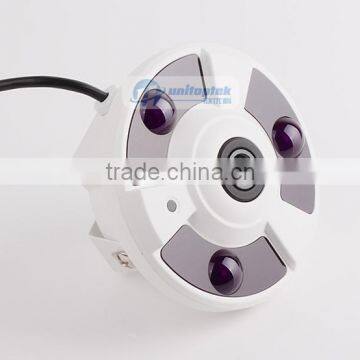

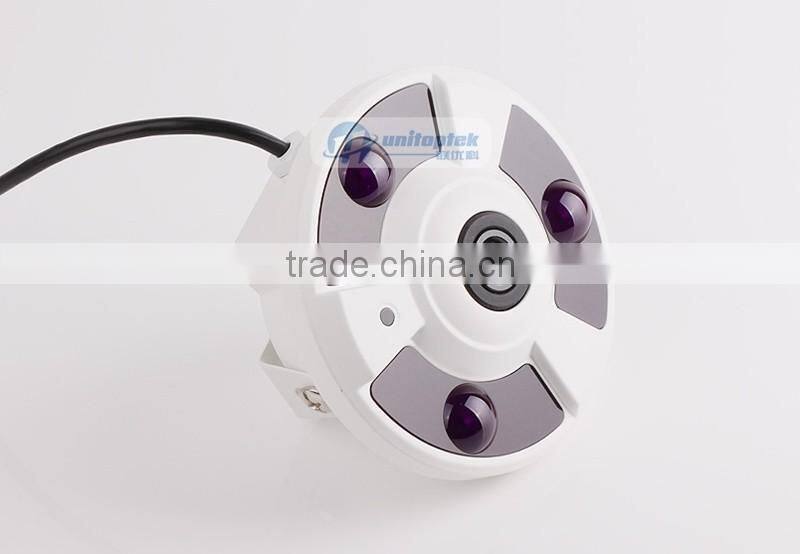

Spec Sheet

Model ( MPN )

CVI-PC29041080

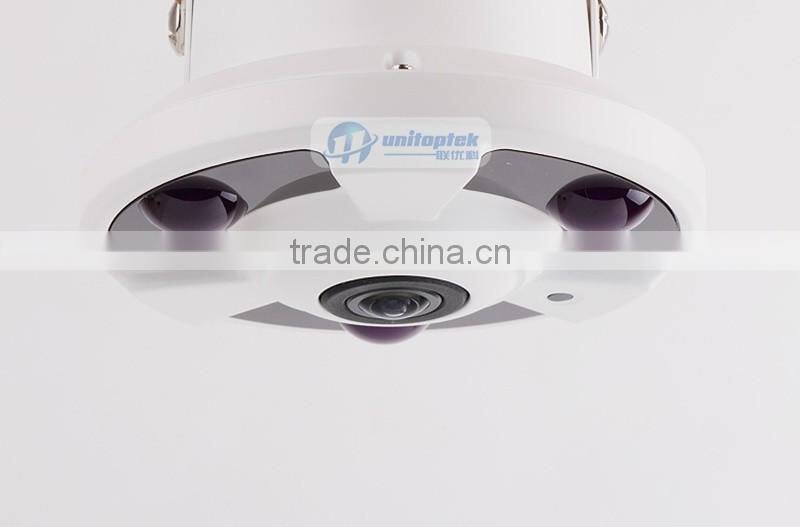

Lens

1.7mm Lens Fisheye 180 degree/360 degree

Operating Temperature

-10 ~ +50 RH95Max

System Control

PAL/NTSC

Effective Pixels

2.0MP, 1920x1080

Scanning Area

Progressive Scan

IR LED

3PCS Array , Range Upto 33FT(10m) CDS Auto Control

Sync. System

Internal

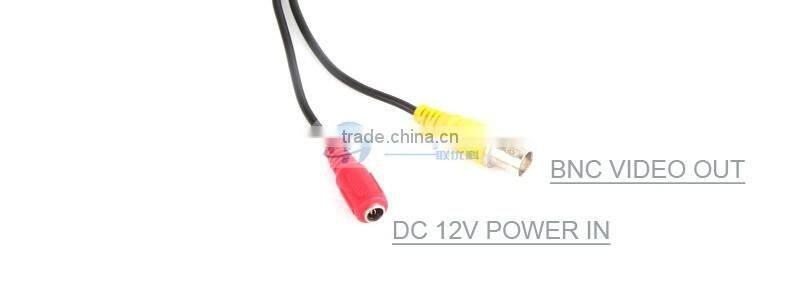

Video Output

HD CVI ( BNC )

Min. Illumination

0.01Lux

Resolutions

1920*1080

Electronic Shutter Speed

1/30s`1/60,000s

White Balance

Auto

Gain Control

Auto

Day & Night

Auto ( ICR ) / Color / B&W

S/N Ratio

>50dB

Power

DC12V±10%, 700mA

Storage Temperature / Humidity

-20 ~ +60 RH95 Max

Housing Material

Metal

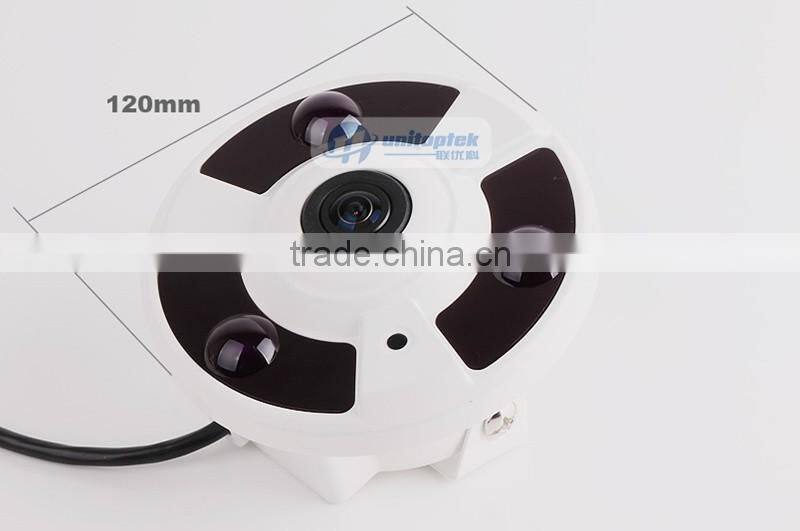

Model Size(diameter*high)

120*65mm

weight

0.35kg
