4pcs 720P IP Camera CCTV NVR 4 Channel POE 4CH IP CCTV System

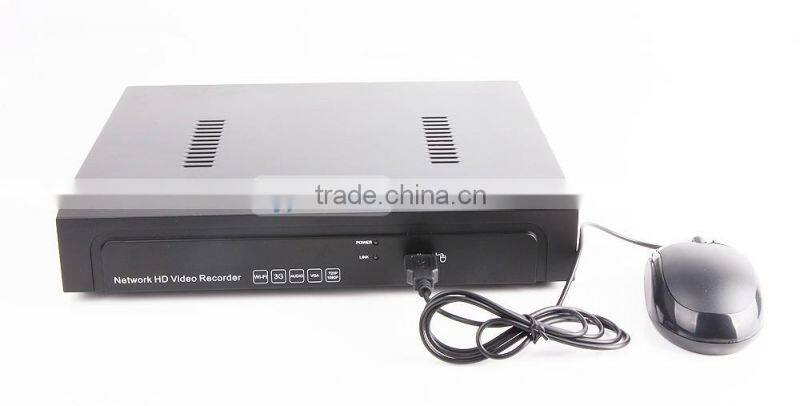

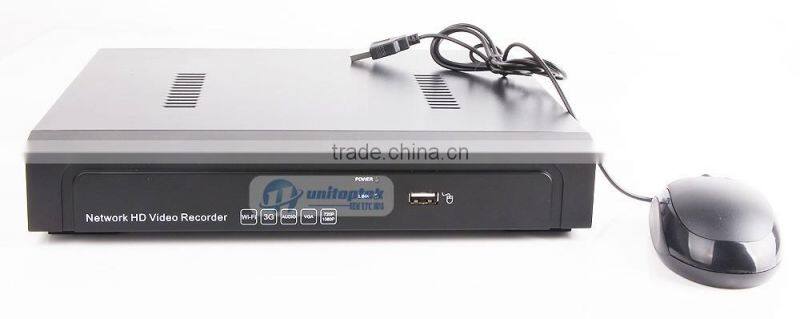

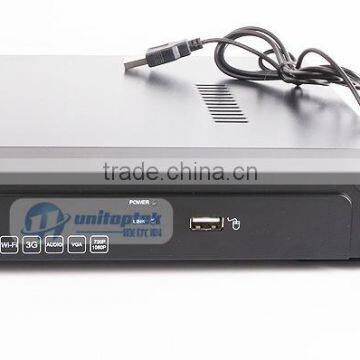

4CH POE NVR system :
P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place with: .
(1)Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif, RTSP standard;
(2)Support megapixel HD network video preview, storage and playback;
(3)Support search, playback and backup by event;
(4)Support all channel image display on one screen at same time, support 4 channels image display by mainstream, and 4 channels playback;
(5)Support monitor PTZ on preview mode Offer CMS for free;
(6)support 1 SATA up to 4TB;
(7)Support Motion Detection Video recording can Save hard drive space.
4CH POE NVR Features:
(1) 4 Channel POE NVR, DC48V POE Power, supports 4pcs 80-100meters RJ45 Cable, Plug&Play,
(2) Preview: 4ch 1080P/ 4ch 960P/ 4ch 720P ;
Playback: 1ch 1080P/ 4ch 720P
(3) Support IE browser to view on internet, support iphone, Androd phone to view on mobile phone.
(4) Standard Onvif compliant, working with third-party IP cameras.
H.264HP High efficiency Video Compression, lower stream, higher quality, longer recording time.
(5) Support 1x 4TB HDD, 3x USB2.0 interface, 1x HDMI (1920x1080).
(6) Function: Motion Detection Recording(Save hard drive space), Email Notification , support search video, playback and backup by event
(7) Support multi language: English, Russian, Dutch, French, German, Italian, Polish, Arabic, Portuguese, Spanish, Thai.
(8) Support P2P Cloud :
Parameters:
Model |
4EP |
|
System |
Operating system |
Linux |
Screen display |
1ch/ 4ch display |
|
Video |
Code capacity |
1080P/ 960P/ 720P/ 960H/ D1/ HD1/ CIF/ QCIF |
Preview capability |
4ch 1080P or 4ch 960P or 4ch 720P |
|
Motion Detect |
Each screen can be set to 192 (16×12) of detection regions; support multi-level sensitivity |
|
Video playback |
Recording |
Manual> Alarm> Motion Detection> Schedule |
Playback |
1ch 1080P/ 4ch 720P / 4ch 960P |
|
Video search |
Time search, calendar search, event search, channel retrieval |
|
Storage |
Space |
720P:40G/day/channel; 1080P:80G/day/channel |
Storage |
Local HDD, Network |
|
Backup |
Support Flash Drive, USB mobile HDD, USB DVD-RW. network storage and backup |
|

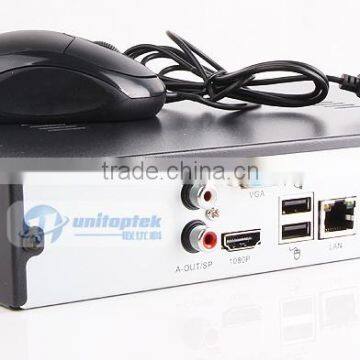

Interface |
Video in |
4x 1080P(2.0MP) IP Camera |
Video out |
1ch VGA, 1ch HDMI(1920x1080) |
|
Audio in |
1x RCA |
|
Audio out |
1x RCA |
|
Alarm in |
NO |
|
Alarm out |
NO |
|
Ethernet |

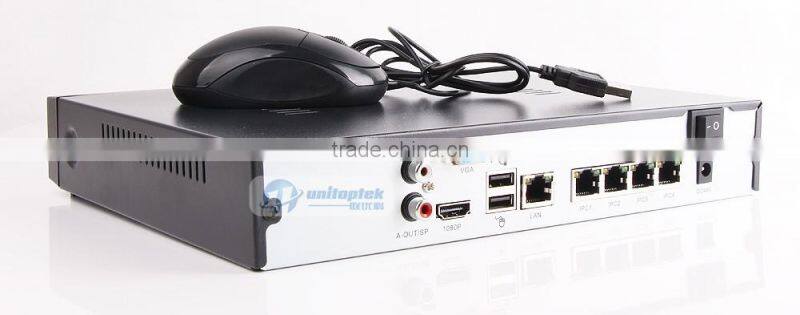

4x RJ-45 interface, for POE(Power over ethernet) 1x RJ-45 interface, for internet (10M/100M/1000M) |
|
PTZ |
Not support |
|
USB |
3x USB 2.0 |
|
HDD |
Support 1x SATA Hard Disk (max to 4TB) |
|
Other |
Power supply |
DC48V2A (support 4pcs 80-100meters RJ45Cable) |
Power Consumption |
<115W (without HDD) |
|
Size |
Equipment:260mmx220mmx43mm, Packing:355mmx255mmx88.5mm |
|
Weight |
Net:1.6kg, Include package:2.5kg (not include HDD) 10 pcs/carton. 525mmx455mmx365mm; Weight:27 Kg |
|

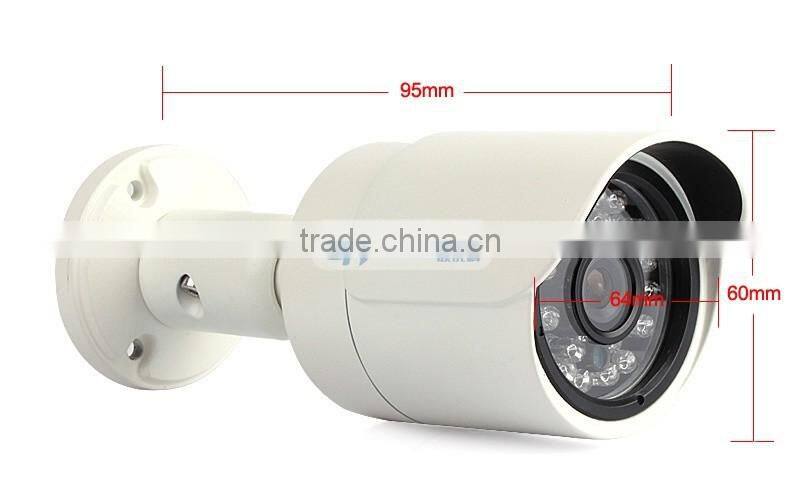

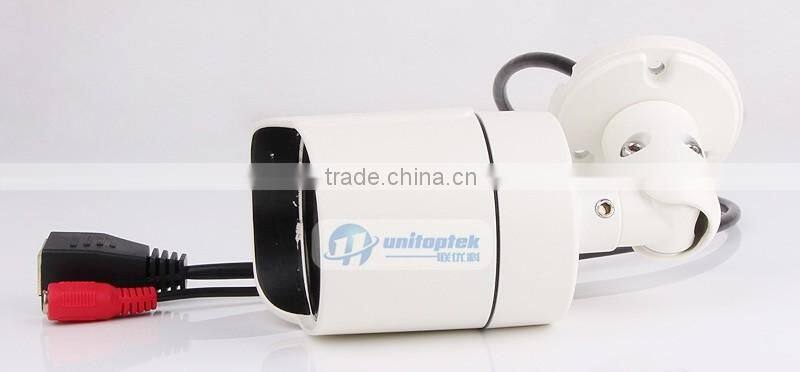

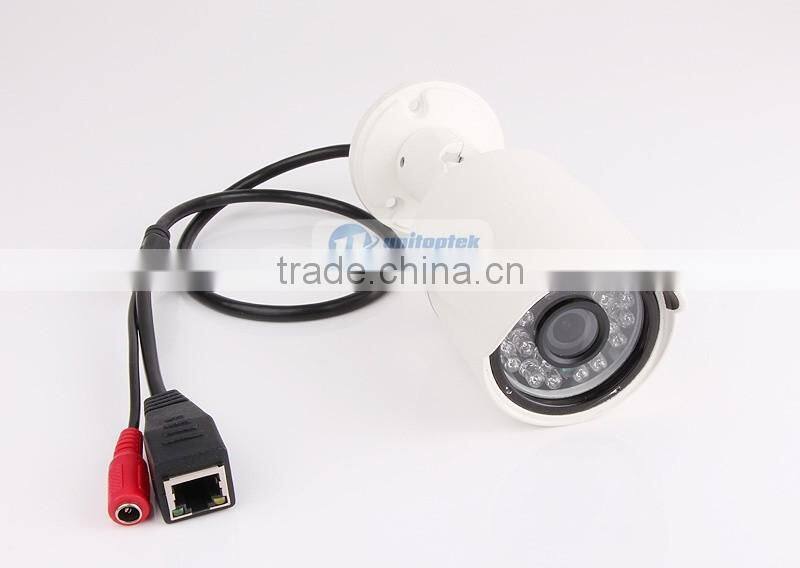

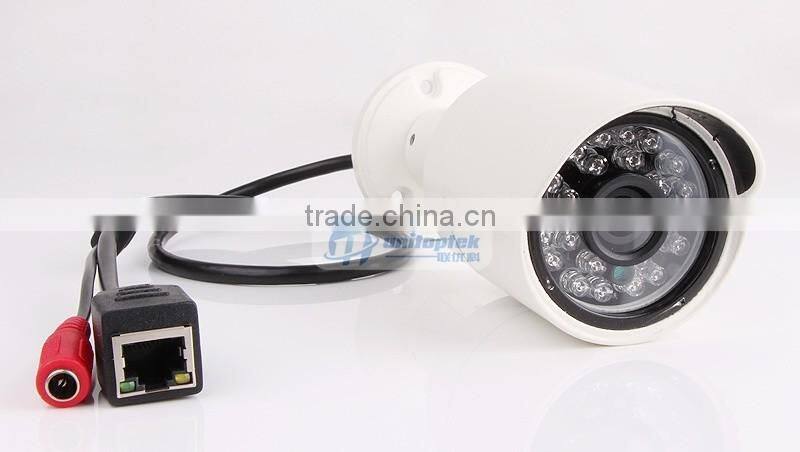

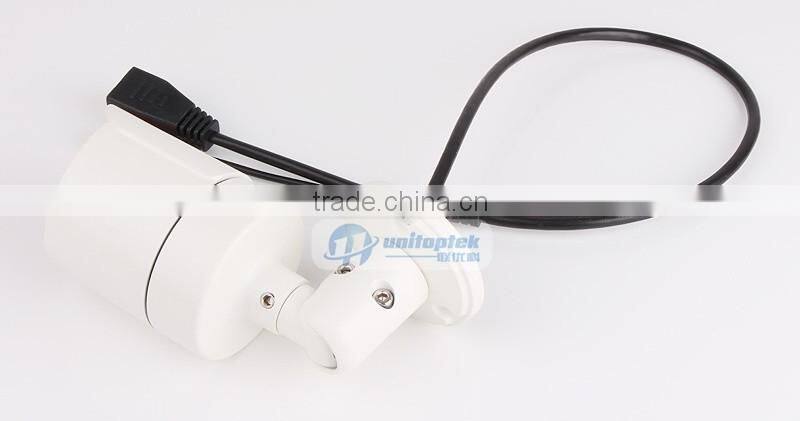

Bullet ip camera Main Features :
(1)HI3518E+OV9712P Processing chip
(2)high sensitivity micron 1.3 megapixel coms
(3)Up to 720P(1280*720) resolutions
(4)Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on
(5)IR LED : 24 PCS
(6)Lens : 3.6mm
(7)POE Port : YES
(8)Support iPhone,Android view
Model |
IPCM-HC43672-P |
System |
Embedded RTOS design,dual core DSP(Hi3518E+OV9712P),pure hardware compression,watchdog, |
Sensor |
1/4" OV 9712P CMOS sensor,support Day/Night(IR cut optional), photoresistor signal linkage;support CS lens and DC drive auto iris lens;color 0.6ux F1.2, B/W 0.08 LuxF1.2 |
Video |
H.264 compression,support dual stream,AVI format, stream:0.1M~6Mpbs; frame:1~30fps |
Resolution |
Main stream:1280*720;Sub stream:704*576(720P) |
Network |
1 x RJ45, 10/100M, support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP |
Other interface |
1 x external signal port, 1 x IR CUT,support photoresistor input signal linked with image,IR-CUT and IR LED |
Function |
Support WEB configuration, OSD, realtime video transmitting, support motion detect and IO alarm activated to remotely recording,screen pop up,message,playback and download,support JPEG capture, support CMS&MYEYE, SDK available |
ONVIF |
Support |
Mobile Monitor |
Support iPhone,Windows Mobile,BlackBerry,Symbian,Android |
other |
DC 12V power |
IR LED |
24 PCS |
POE Port |
YES |
Size |
105*65*65mm |
Case |
Metal+plastic Waterproof,Outdoor Use |
P2P Cloud |
Support |
Lens |
3.6mm (2.8mm/6mm optional) |
Support nvr |
Yes |

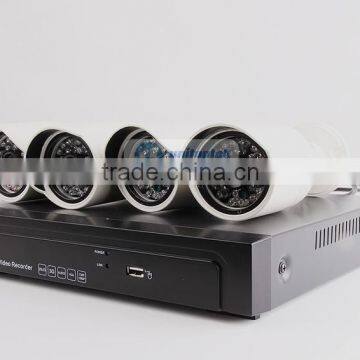

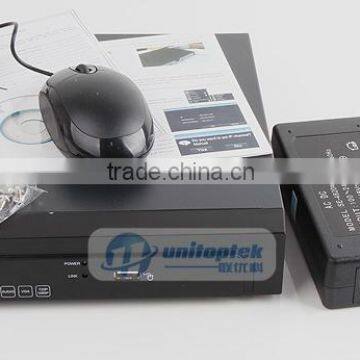

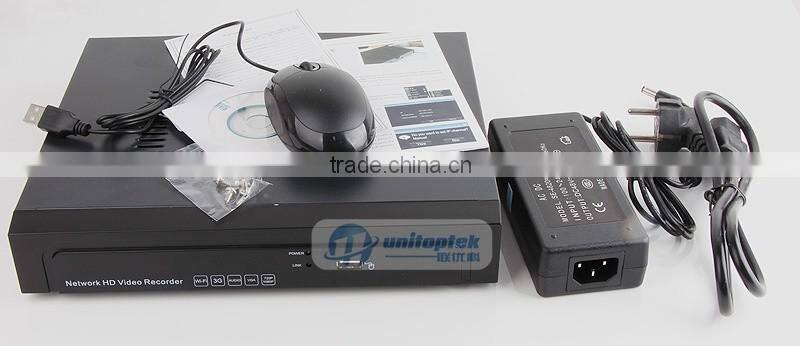

1x4CH 1080P PoE NVR
1x 48V 2A Power Adapter
1xMouse
1xNVR User Manual
1xSoftware CD for NVR

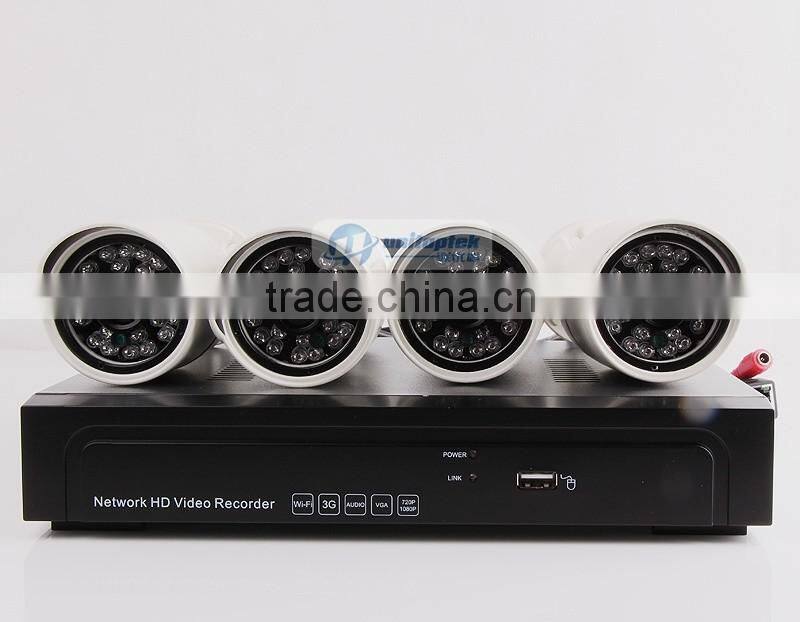

4 x 720P Mini poe Bullet poe IP Camera
4 x Screws
2 X 10m Network Cable

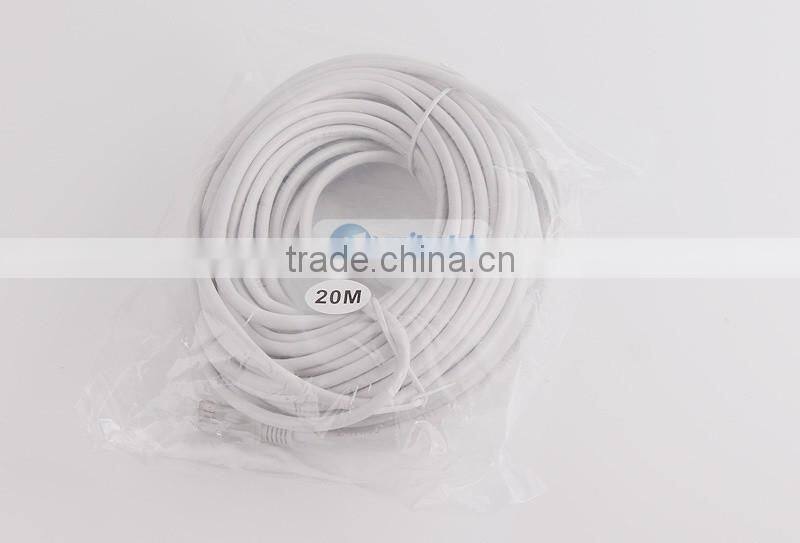

2 X 20m Network Cable
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
