Quiet-Running Counterflow Jet Pump

Specifications

P 55 protection
inbuilt counterflow system
easy installation
single-stage centrifugal pump with complete drainage device

 Quiet-Running Counterflow Jet Pump

Inbuilt counterflow system:

This jet stream is ready for easy installation. It is possible to regulate the jet strength and air suction on the nozzle of 40 mm in diameter, which is directionaly adjustable. The nozzle, suction and pneumatic switch are positioned in the front cover panel of the equipment.

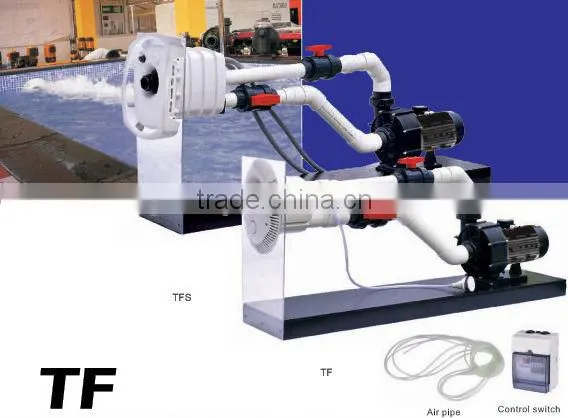

Complete counter flow system includes:

unter flow nozzle 40mm (regulation water-air)

2.front cover panel-attactive design

3.pool wall lead-through

4.pump

5.electropneumatic switch with safety element

6.pvc fitting



Motor:

1.asynchronous, two poles

2.IP 55 protection

3.class F insulation

ntinuous operation



Materials:

1.suction and discharge mountings in polypropilen

2.motor shaft in stainless steel AISI-304

3.impeller in Noryl

chanical seal in graphite and steatite

5.motor housing in aluminium L-2521

dings impregnated with epoxy resin



Technical Data:



Dimensions:

Remark:

• Payment: 70% T/T prepaid,Western Union.
• Terms of payment:All payment are before shipment .
• Price will be adjusted if USD:RMB rate varies by +/- 2%. Freight not included .
• Offer validity: one month
