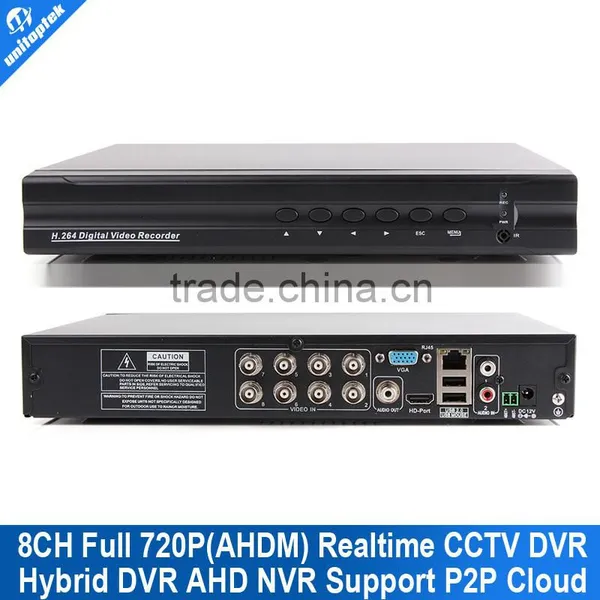

CCTV DVR 8 Channel With Hi3531 AHD DVR 720P Real Time 8Ch Playback DVR Recorder Max to 4TB
Features:
1) Step on the Internet:Support p2p cloud(),no need to router mapping,just 1 step go to the Internet with MHK cloud technology.
2) Compression algorithm ideal:H.264 High Profile.
3 ) Playback quality:Support 8ch AHDM/AHDL, realtime record,multiple channel realtime playback synchronous.
4 ) Main and Sub Stream: Dual Stream, Main stream is for local record , sub stream is for network transmission.
5 ) Mobile monitor:Support iPhone, Windows Mobile, BlackBerry, Symbian,Android mobile monitor
6) Display:Support TV, VGA ,HDMI output at the same time.
7) Operation interface:Similar with WINDOWS, easy and convenient to operate it.
8) Network:Powerful Network service(Support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP right, IP search, ALARM CENTER etc...), WEB, mobile CMS, SDK...
9) Browsers:Support IE, Chrome,Firefox and Safari.
10) Remote Access:Built-in DDNS(ARSP),dyndns,oray, myq-see, no-ip etc....
11 ) Device port:Support 1 SATA,can connect 1 maximum 4TB HDD,support 2 USB 2.0 port,can do the USB mouse,backup,burn,upgrade etc operation stably.
12 ) Differentiation: twenty multinational language , easy to achieve product differentiation.
13) Others: With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up. With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs.
Specification
|
Model |
A6508N |
System |
|
Hi3521 |
Operation System |
Embedded LINUX |
|
System Resource |
Multiple channels realtime recording,playback,network operation and USB backup |
|
Screen |
User Interface |
GUI,on-screen menu tips |
Screen Display |
1/4/8 screen |
|
Video |
Standard |
PAL(625 line,50f/s); NTSC ( 525 line,60f/s) |
Compression |
H.264(High Profile) |
|
Display Quality |
TV: D1 VGA: High definition,HDMI |
|
Playback Quality |
8ch AHDM/AHDL |
|
Encode Capacity |
200/240fps AHDM/AHDL |
|
Only Analog(DVR) |
8ch AHDM(720P) or 8ch AHDL(960H) |
|
Hybrid dvr nvr |
4ch AHDM(720P) + 4ch 720P |
|
Only nvr |
4ch 1080p or 8ch 720p |
|
Audio |
Compression |
G.711A |
Talk back |
Support |
|
Record& |
Record Mode |
Manual>Alarm>Video Detection>Timing |
Playback |
Local Playback |
1 ~ 4 channels |
|
Record Search |
Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
Storage& |
HDD Occupation |
Video:AHDL(960H): 30G / day / channel AHDM(720P): 40G / day /channel 1080P: 80 G/ day/channel |
Backup |
Audio: 691.2M/day/channel |
|
|
Record Storage |
Local HDD,Network |
|
Backup Mode |
Network/USB movable HDD |

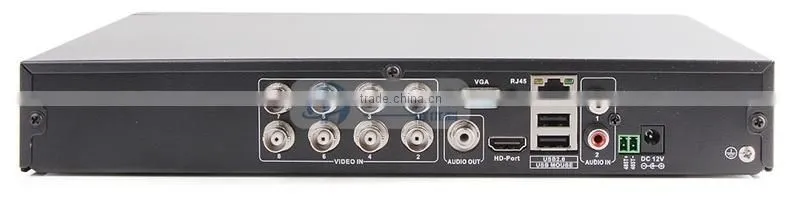

Interface |
Video Input |
8ch BNC ( 1.0Vp-p,75 ) |
Video Output |
1ch VGA , 1ch HDMI |
|
Loop put |
Non-support |
|
Audio Input |
2chRCA |
|
Audio Output |
1ch RCA(200-3000mV,5K) |
|
Alarm Input |
Not have |
|
Alarm Output |
Not have |
|
Network |
RJ45 10M/100M |
|
PTZ |
Yes |
|
USB |
2 USB2.0 |
|
HDD |
1 SATA ( maximum support 1 x 4TB ) |
|
Others |
Power Supply |
12V/2A |
Power Consumption |
<5W ( not include HDD) |
|
Working Temperature |
0- + 55 |
|
Working Humidity |
10% - 90% |
|
Atmosphere Pressure |
86kpa - 106kpa |
|
Dimension |
Packing:39.5*27*9cm , only dvr:30*22.5*5cm |
|
Weight |
Packing:1.55kg, only dvr:1.15kg |
1 x 8CH ADM/AHDL DVR
1 x Remote Controller
1 x USB Mouse
1 x Installation CD Rom
1 x User Maunal
1 x Power supply DC 12V
