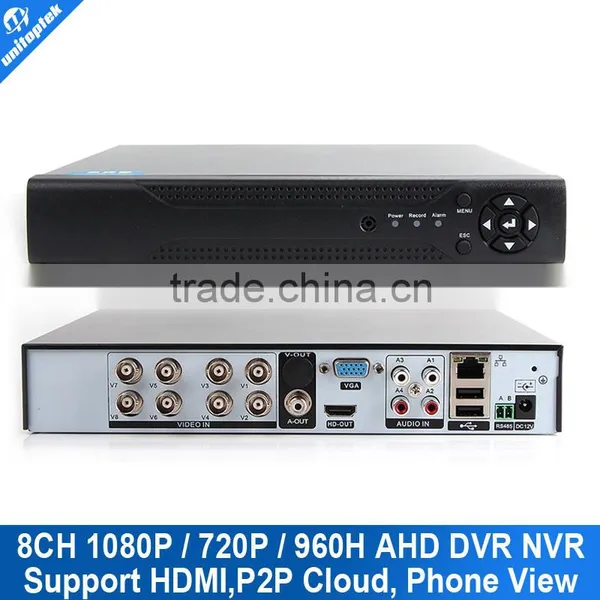

Video Recorder AHDH/AHDM Network Monitor Max To 4tb P2P /CMS View 1080P 8 Channel DVR
|
Model |
6008T-MH |
Main processor |
HI3531 |
|
Menu display |
1/4/8/9 screen |
|
Video |
Video Standards |
PAL(625 line,50 f/s);NTSC(525 line,60 f/s) |
Surveillance quality |
PAL,D1(704×576),NTSC,D1(704X480) |
|

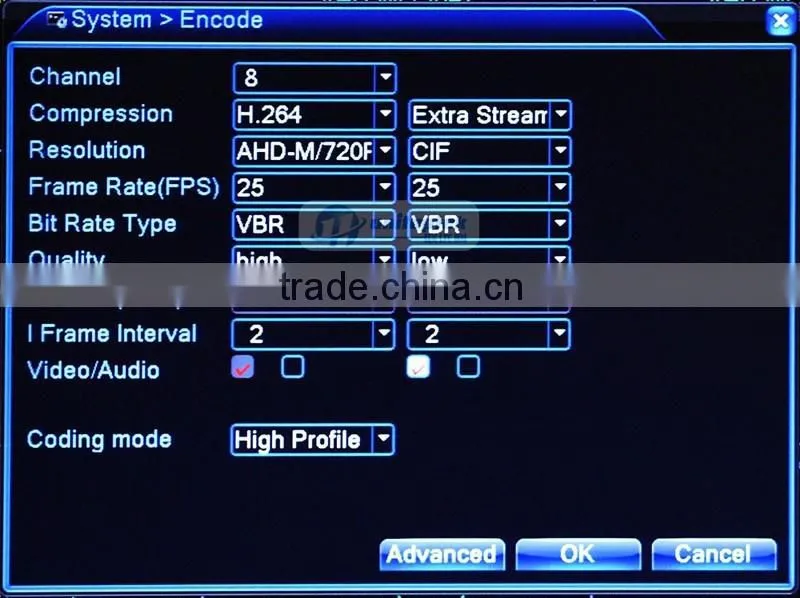

Code ability |
8CH AHDH(1080P)/15fps OR 8CH AHDM(720P)@25fps,4ch AHDL(960H)@25fps |
|
Motion Detection |
Zones:396(22*18)detection zones,many levels of Sensitivity setting |
|
Record & |
Recording Mode |
Manual-Alarm Dynamic Detection Timing |
Playback | ||
Playback |
One channel or multi-channel playback (4 channel max synchronized playback) |
4CH AHDH(1080P)/15fps;AHDM(720P)/25fps palyback |
Search Mode |
Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
|
Storage |
Space Occupation |
Video:960H(AHDL):30G/DAY/CH , AHDM(720P):40G/DAY/CH, 1080P:80G/DAY/CH Audio:691.2MB/DAY/CH |
Backup | ||
Video storage |
Hard disk,and net |
|
Backup Mode |
Network burn, mobile Hard disk and USB burn |
|
Interface |
Video Input |
8channel, BNC, 1.0Vp-p.75 |
Video Output |
1channe VGA, HDMI |
|
Audio Input |
4channe RCA |
|
Audio Output |
1channe RCA |
|
Hybrid Mode |
2*AHDH+2*1080P or 8*AHDM+8*720P |
|
Only dvr |
8ch AHD(1080P)/AHDM(720P) / AHDL(960h) |
|
Only nvr |
1ch1080p+8ch 720p or 4ch 1080p |
|
Alarm output |
NO |
|
Net Interface |
RJ-45 (10M/100M) |
|
PTZ Control |
RS485 |
|
USB Interface |
2*USB |
|
Hard Disk |
1 SATA ports (max 4TB) |
|
Other |
Power Supply |
12V/2A |

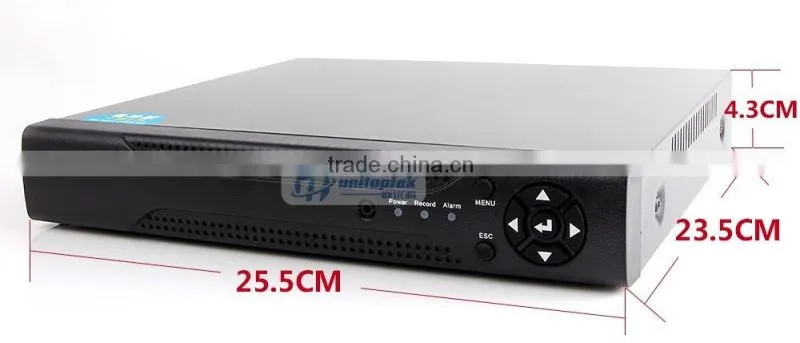

Dimension |
Packing:345X285X75mm(W*D*H) |
Only dvr:255*235*43mm(W*D*H) |
Weight |
Packing:1.35kg(NOT WITH HDD) |
Only dvr:0.95kg |
1 x 8CH 1080p AHDH/AHDM DVR
1 x Remote Controller
1 x USB Mouse
1 x Installation CD Rom
1 x User Maunal
1 x Power supply DC 12V
Note:This AHD DVR Support 1080p/720p ahd camera
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
