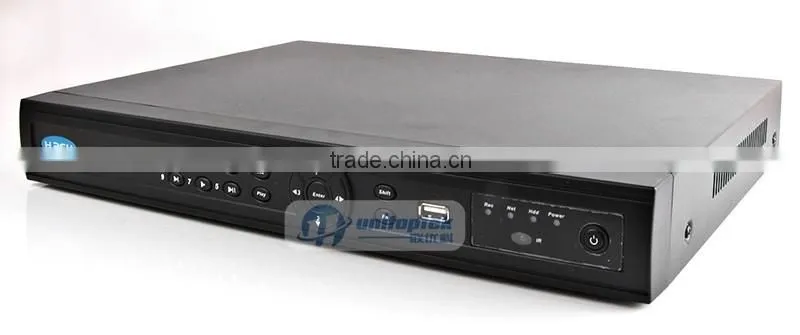

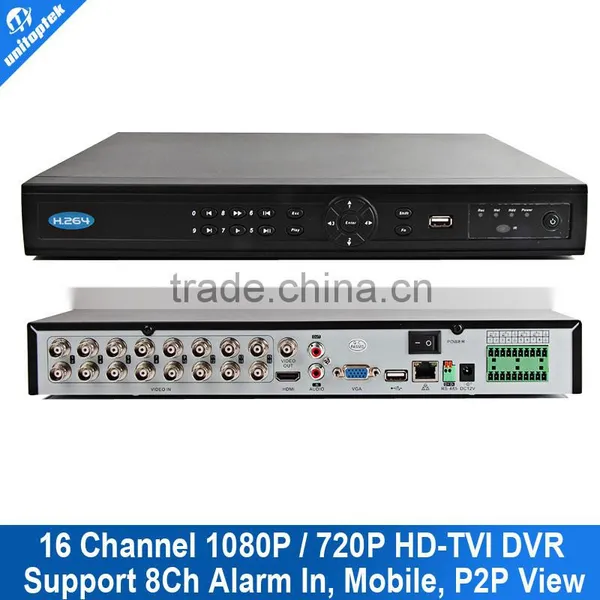

High Definition 16CH 1080P TVI DVR For 2.0MP TVI Camera Remote Mobile P2P View
Features:
16 Channel 720P/1080P HD-TVI DVR
Preview 720P 25/30fps; 1080P 25/30fps
Recording&Palyback 720P 25/30fps; 1080P 15fps
2× HDD(max 4TB)
1ch audio input;1ch audio output
1ch VGA output, 1ch HDMI output
Alarm:8ch Alarm in, 4ch Alarm output
Support RS485
Support free ddns: ;plug-play, P2P
Support smart CMS;smart mobile phone view (android, iphone,etc ,)
Support up to 500M over-coaxial -cable tansmission distance; easily installation with old connection system, and save cost.

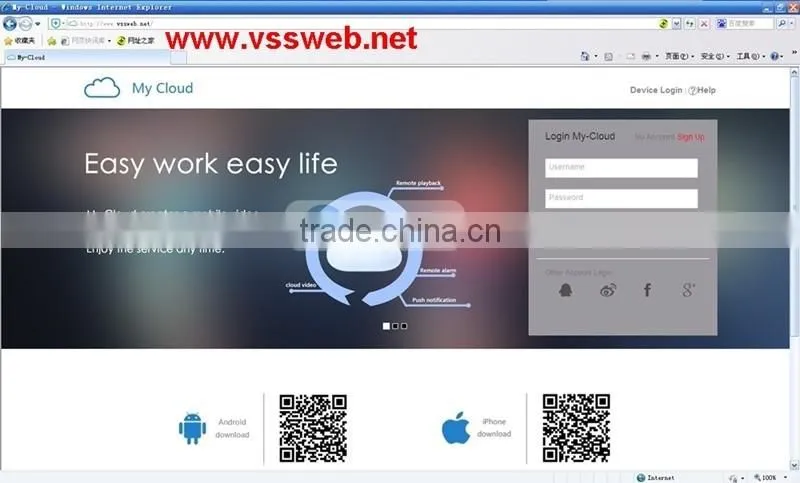

Support mobile view app: Vss Mobile
Are Compatible with TVI products.
Specification:
Model |
TVR7116L-A |
|
Operating system |
Embedded Linux |
|

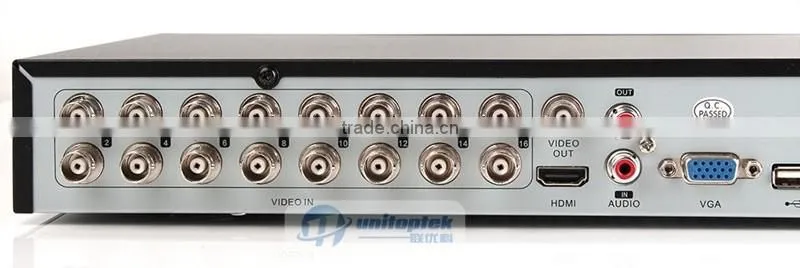

Video and audio input |
CVBS / TVI input |
16 |
CVBS signal, TVI signal adaptive compatible | ||
BNC connector (1.0Vp-p, 75ohms), TVI signal highest 1080P | ||
Reverse camera support TVI control (Coaxitron) | ||
Audio input |
1 channel, RCA Interface (2Vpp, 1Kohms) |
|
Voice intercom |
The first way voice intercom reuse |
|
Video and audio output |
CVBS output |
1 channel, BNC interfaces (1.0Vp-p, 75ohms) |
VGA |
1 channel, 1920 × 1080,1280 × 1024,1366 × 768,1280 × 720,1024 × 768 resolution optional |
|
HDMI |
1.3a standard |
|
1920 × 1080,1280 × 1024,1366 × 768,1280 × 720,1024 × 768 resolution optional | ||
Audio output |
1 channel, RCA Interface (Line out, 2Vpp, 300ohms) |
|
Video and audio encoding |
Real-time monitoring Resolution |
1080P, 720P, WD1, D1 |
Video coding standard |
H.264 High ProfileLevel5.0 |
|
Encoding resolution |
Main stream: 1080P, 720P, WD1, D1 optional |
|
Highest coding ability |
16 1080P 15FPS; 16 road 720P 30FPS; 16 road WD1 30FPS |
|
Video frame rate |
1 to 30 |
|
Coding control |
Limited bit rate, variable bit rate optional |
|
Video bit rate |
32Kbps ~ 8192Kbps |
|
Stream type |
Composite stream / video stream |
|
Audio coding standard |
G.711A |
|
Audio bit rate |
64Kbps |
|
Dual-stream |
It supports up to CIF 6FPS |
|
Video and audio decoding |
Multi-channel playback |
4CH 1080P15FPS OR 4CH 720P 25/30FPS playback |
Other |
Voice intercom |
Two-way voice intercom function |
Motion detection |
Each screen can be set to 396 (22 × 18) a detection area; you can set multi-level sensitivity |
|
Regional block |
Each supports four regional block block |
|
Grab function |
Support JPEG capture |
|
Hard Drive |
SATA interface |
2 |
Hard disk drive capacity |
Hard disk capacity unlimited |
|

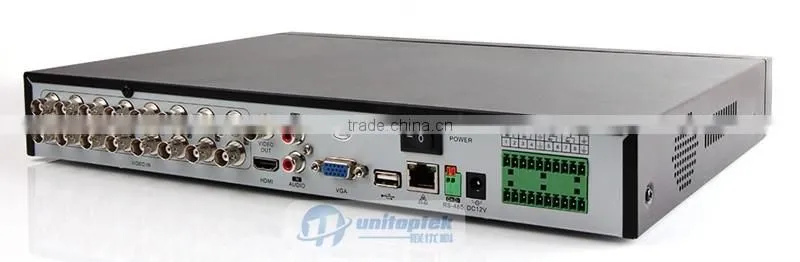

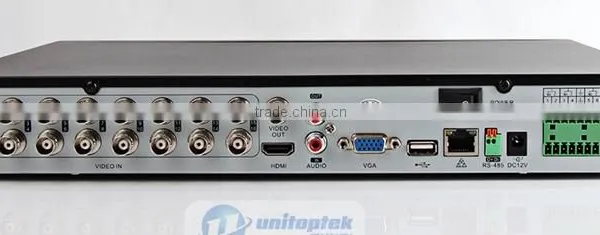

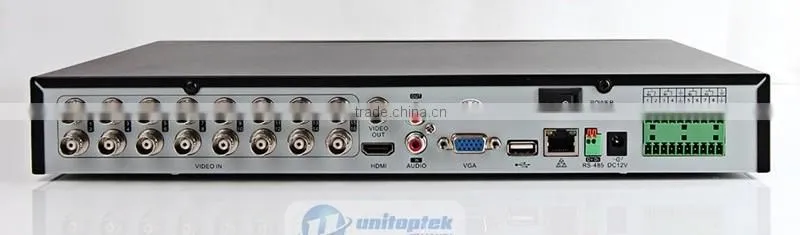

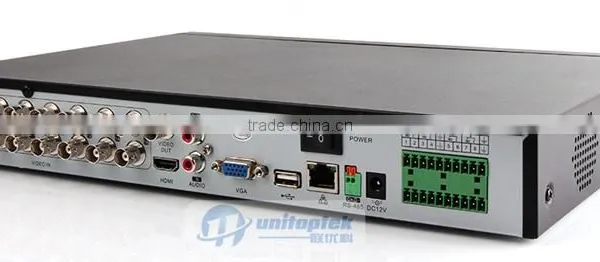

The external interface |

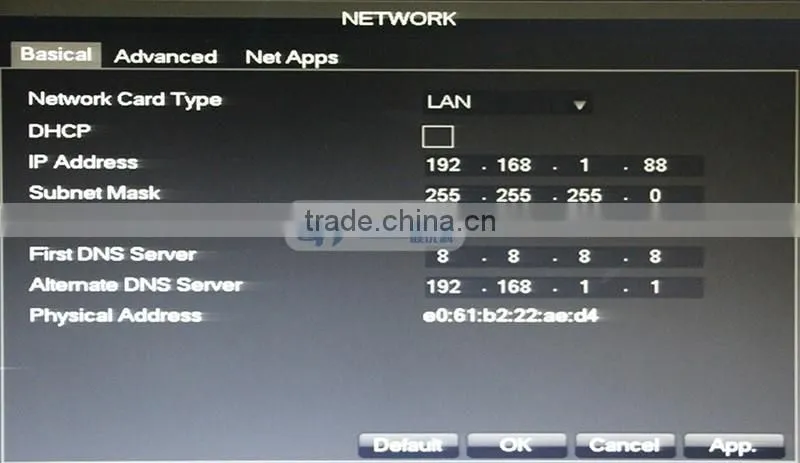

Network Interface |
An RJ45; 10M / 100M / 1000M adaptive Ethernet port |
USB Interface |
2 USB2.0, front and back panel a |
|
Alarm Input |
8 |
|
Alarm output |
4 |
|
RS-485 |
1-way, half-duplex |
|
Structure |
Packaging |
|

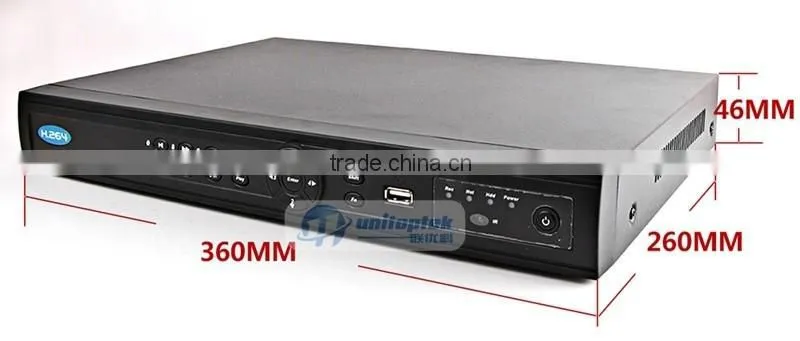

Size |
360x260x48mm |
|
Installation |
Desktop installation, rack-mount |
|
Electrical performance |
Power |
DC + 12V 4A |
Operating temperature |
0 - + 55 |
|
Humidity |
10% - 90% |
|
Power |
15W (without hard drive) |
|

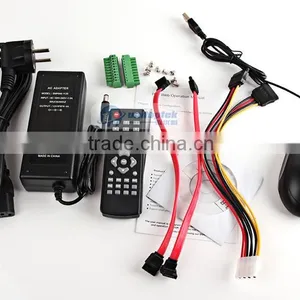

Packing List:
1 x 16ch 720p/1080p tvi dvr
1 X USB Mouse
1 X Remote Controller
1 X Power Adapter
1 X User manual
1 x 16ch 720p/1080p tvi dvr
1 X USB Mouse
1 X Remote Controller
1 X Power Adapter
1 X User manual
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
