Hybrid ahd DVR/1080P NVR 4in1 Video Recorder 16CH AHD DVR
|
Model |
AVR-7616LM |
Menu display |
1/4/9/16 screen |
|
Video |
Video Standards |
PAL(625 line,50 f/s); NTSC(525 line,60 f/s) |
Surveillance quality |
PAL,D1(704×576),NTSC,D1(704X480) |
|
Code ability |
400/480 16CH AHDM@25fps,16ch 960H(AHDL)@25fps |
|
Motion Detection |
Zones:396(22*18)detection zones,many levels of Sensitivity setting |
|
Record & |
Recording Mode |
Manual-Alarm Dynamic Detection Timing |
Playback | ||
Playback |
One channel or multi-channel playback (4 channel max synchronized playback) |
12fps palyback |
Search Mode |
Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
|
Storage |
Space Occupation |
Video:960H(AHDL):30G/DAY/CH , AHDM(720P):40G/DAY/CH, 1080P:80G/DAY/CH Audio:691.2MB/DAY/CH |
Backup | ||
Video storage |
Hard disk,and net |
|
Backup Mode |
Network burn, mobile Hard disk and USB burn |
|
Interface |
Video Input |
16channel, BNC, 1.0Vp-p.75 |
Video Output |
1channe VGA, HDMI |
|
Audio Input |
2channe RCA |
|
Audio Output |
1channe RCA |
|

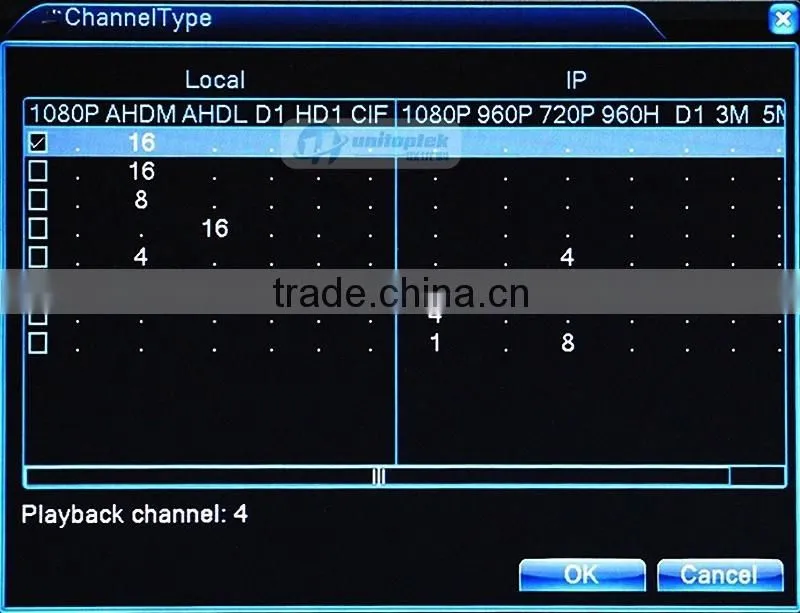

Hybrid Mode |
4*AHDM+4*720P(NVR) |
|
Only AHD DVR |
16*AHDM OR 16*AHDL(960H) |
|
Only NVR |
1*1080P+8*720P OR 4*1080P OR 4*720P |
|
Alarm output |
NO |
|
Net Interface |
RJ-45 (10M/100M) |
|
PTZ Control |
RS485 |
|
USB Interface |
2*USB |
|
Hard Disk |
1 SATA ports (max 3TB) |
|
Other |
Power Supply |
12V/2A |
Dimension |
Packing:330X310X75mm(W*D*H) |
Only dvr:260*200*43mm(W*D*H) |
Weight |
Packing:1.45kg(NOT WITH HDD) |
only dvr:0.9kg |

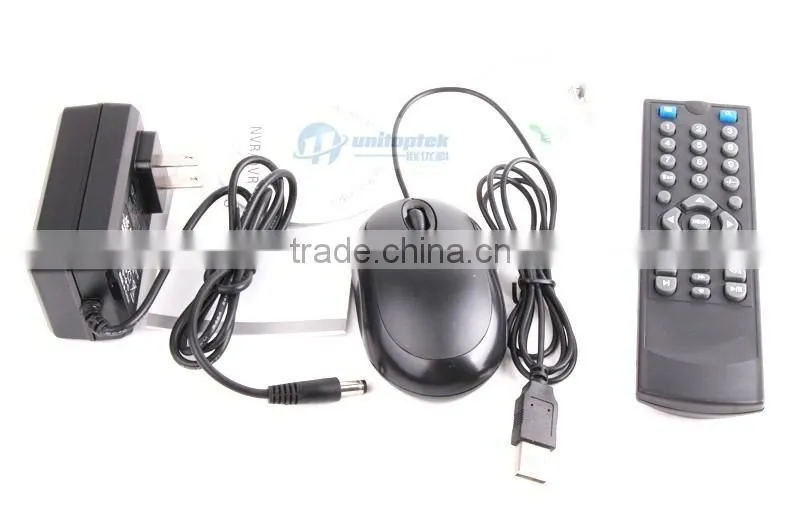

Packing list:
1 x 16ch AHDH/AHDM DVR
1 x Remote Controller
1 x USB Mouse
1 x Installation CD Rom
1 x User Maunal
1 x Power supply DC 12V
Note:This AHD DVR Support 1080p/720p ahd camera
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
