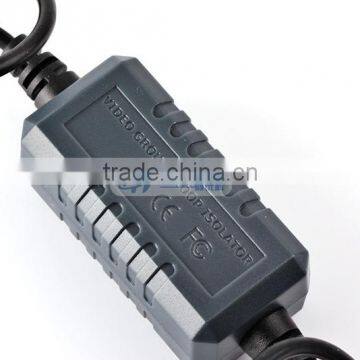

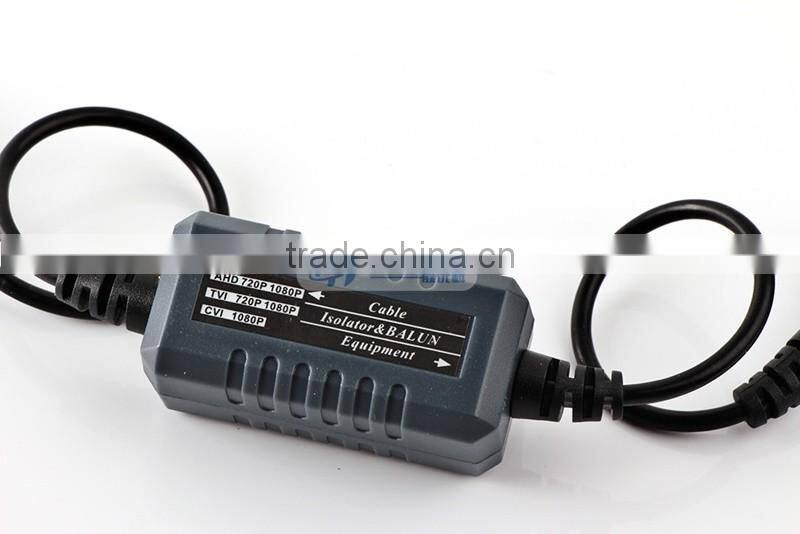

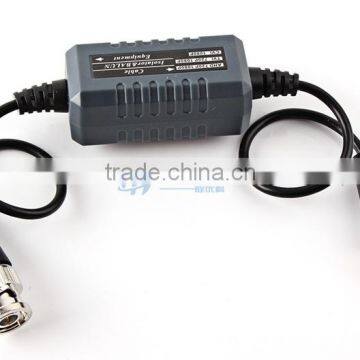

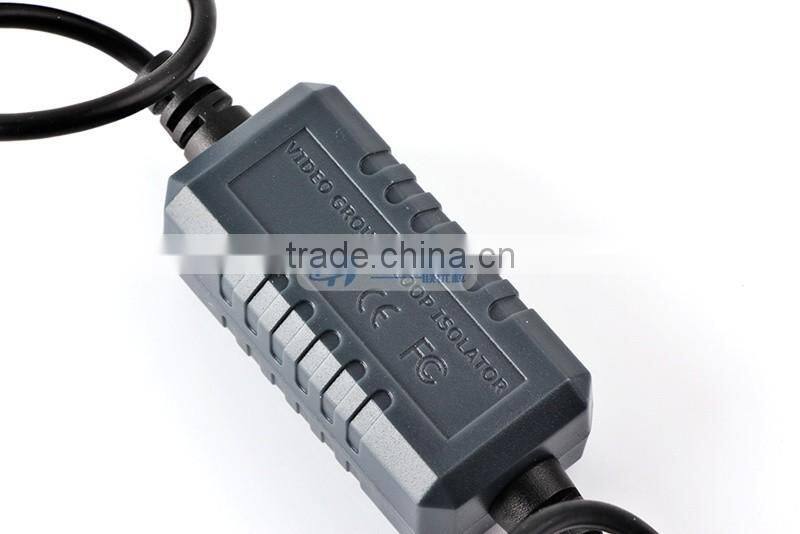

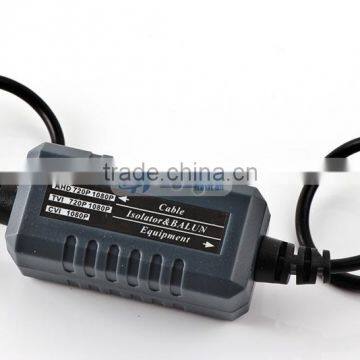

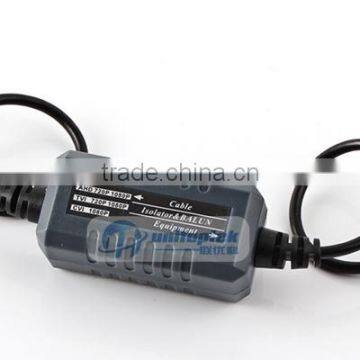

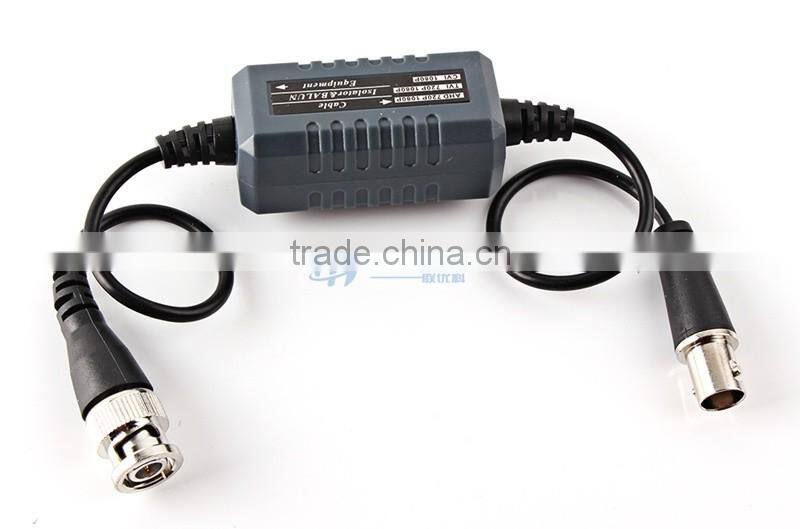

HD Coaxial Ground Loop Isolator HD CVI/AHD/TVI Video Balun BNC Male to Female Anti-jamming
hd coaxial video ground loop Isolator built in video balun
Features:
(1)Compatible with CVI 1080P,TVI 720P/1080P,AHD 720P/1080P,it's not suitable for CVI 720P;
(2)BNC male to BNC female with mini cable 18cm on both sides;
(3)Passive,no power required;
(4)Prevents video-signal distortion caused by viseo ground loops;
(5)Eliminates picture tearing,cross talk and rolling;
(6)Prevents power cables laid bu others interfering with the cctv system;
(7)Built in video filter,perfect to work with dvr to immunity dvr interference,for exterference rejection;
(8)Built in TVS(Transient Voltage supporessors) for surge protection.

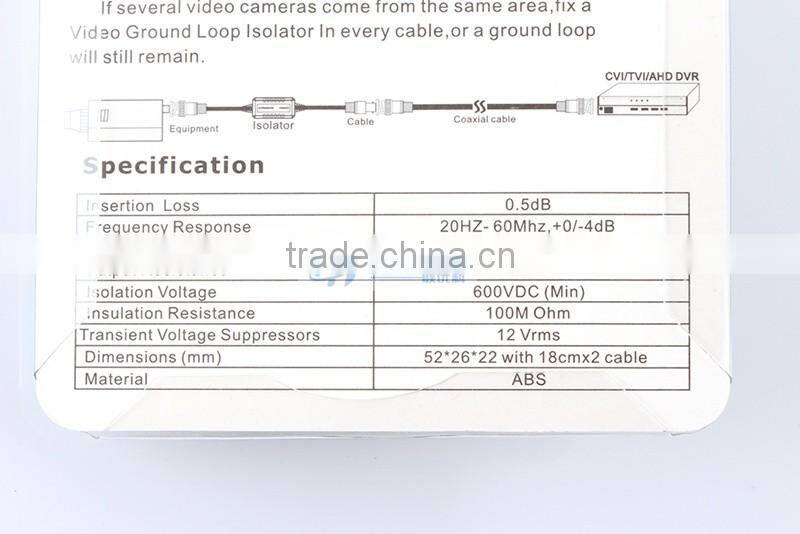

Installation View:
The video ground loop lsolator should be installed where runs of video cable are known to have ground loops. It must be installed in the video cable that has connected to anything else.
If several video cameras come from the same area,fix a video ground loop in every cable,or a grouned loop will still remain.
Insertion Loss |
0.5dB |
Frequency Response |
20HZ-60Mhz,+0/-4dB |
Input Resistance |
75 ohm |
Output Resistance |
75 ohm |
Isolation Voltage |
600VDC(mini) |
Transient Voltage Suppressors |
12 Vrms |
Dimensions(mm) |
52*26*22 with 18cm*2 cable |
Material |
ABS |

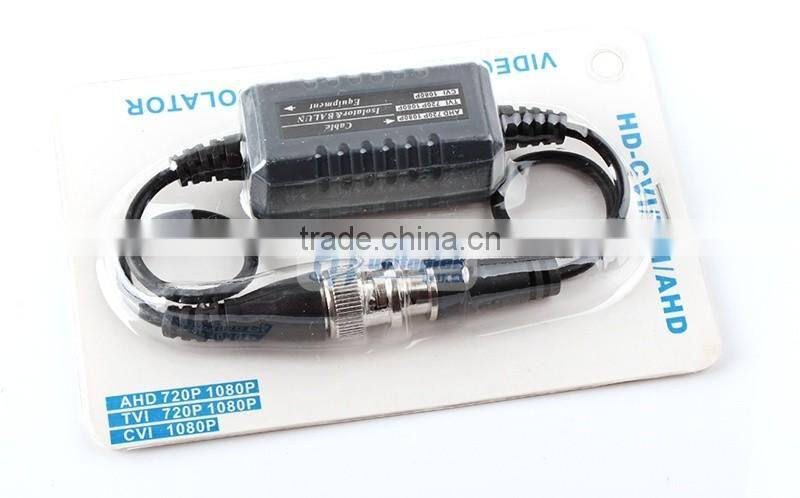

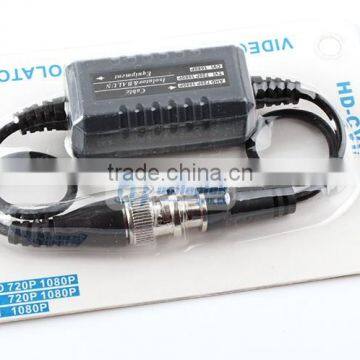

Packing List:
1x video ground loop lsolator
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
