FX sun stone coated metal roof tile roll forming machine factory
1.Processing flow diagram FX sun stone coated metal roof tile roll forming machine factory
Flattening-Slitting-Cutting→Trimming→Pressing→Automatic bottom glue spraying equipment→Automatic Sandblasting Room→First drying room→Automatic surface glue spraying equipment→Second drying room equipment component
2.Technical parameters
Leveling-Slitting-Cutting Machine
1.Flattening-Slitting-Cutting Machine |
1.5t manual decoiler 2.aa: 45# steel, outer diameter 85mm 3.Number of shaft: feeding step: 1 piece 4.Leveling: up: 5 pieces, down: 6 pieces 5.Blade material: Cr12 steel with quenched treated 60-62°C |

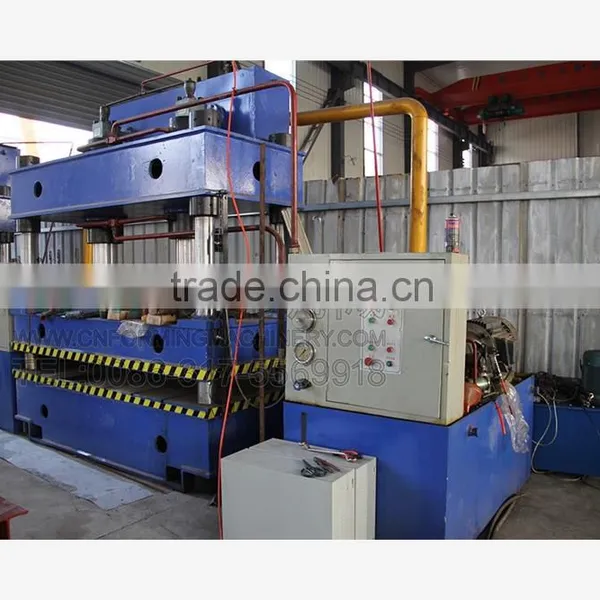

Hydraulic Moulding Machine
Shearing Machine Forming Mould
1.Pressure 315T
2.Normal working pressure: 25MPA
3.Max distance from block to working table: 600MM
4.Stock distance: 600MM
5.Working table size: 1800x1200MM
6.Down motion max speed: 120
7.Back motion max speed: 88
8.Working speed: 17
9.Motor: 22KW
Finished Tile Sample

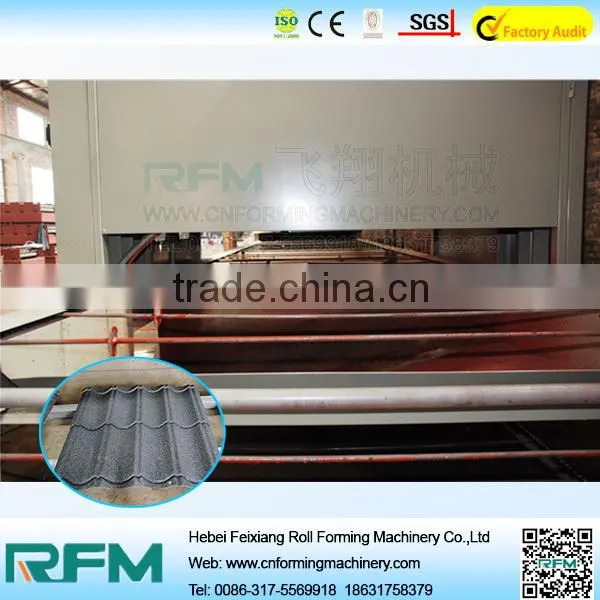

Stone coated metal roof tile machine Sand Blast Part
Automatic Bottom Glue Spraying Equipment
1.Closed automatic spraying glue system |
2.Outside Dimension:4000*1350*850mm(L*W*H) |
3.Structure:Channel steel ,welded |
4.Conveying device:Reciprocating chain conveys |
5.Adsorption of dust removal equipment:1 set |
6.Air compressor: 1 set, 7.5kw, air output is 1m³/min |
7.D46 high-pressure airless spraying system 1 set (German technology) |
8.Automatic high-pressure airless spraying gun: 1 set (Japanese technology) |
9.High-pressure airless manual spraying gun:1 set(Japanese technology) |
10.Standard 15M German import high-pressure airless feed tube and it can support the maximum pressure is 20Mpa |
100L stainless charging basket 1 piece |
Automatic Sandblasting Room
1.Outside Dimension :3000*1850*700mm(L*W*H) |
2.Structure:Channel steel ,angle steel ,welded |
3.Transmission:With glue spraying equipment compound chain transmit |
4.Conveying device:Compound chain transmit |
5.Air compressor: 1 set, 18.5kw, air output is 3m³/min |
6.High-pressure sand suction system: 1 set, sand suction is 1T/hour |
7.Sand hopper: 1 set, dimension:550*600*500 |
8.Automatic shaking sand system: one cylinder, the motor with 0.75kw, control: PLC |
First Drying Room
1.Outside Dimension:4000*1350*850mm(L*W*H) |
2.Structure:Channel steel ,welded |
3.Conveying device:Reciprocating chain conveys |
4.Adsorption of dust removal equipment:1 set |
5.Air compressor: 1 set, 7.5kw, air output is 1m³/min |
6.D46 high-pressure airless spraying system 1 set |
7.Automatic high-pressure airless spraying gun: 1 set |
8.High-pressure airless manual spraying gun:1 set |
9.Standard 15M German import high-pressure airless feed tube and it can support the maximum pressure is 20Mpa |
10.100L stainless charging basket 1 piece |
Automatic Surface Glue Spraying Equipment
1.Outside Dimension :30000*850*700mm(L*W*H) |
2.Structure:carbon steel welded |
3.Frame insulation wall: 30 meters’ long, 1mm carbon steel plate bending forming filled with cotton insulation |
4.Automatic temperature controller:2 sets,Range of adjustable temperature:0-160° |
5.Infrared fluorescent tube:50 pieces |
6.Conveying device: Reciprocating chain conveys 30m |
7.Cooling device:1 set |
8.Total equipment matches total control station 2 sets (Control system) |
9.Productivity:3-6m/min Calculate as 1.2m per piece,eight hours,produce 1500pcs every day |
10.Whole machine power:130kw |
Remark: Above parameters are standard, we can design and make some change exactly according to your requirements.
After-sales service
A: Warranty: One year ,and we will provide the technical support for the whole life. B: Training: the buyer should charge of visa, round-trip ticket, food and accommodation overseas and USD100/person/day for salary.
C: Need one technician. D: Training time: one week (contains the time of installation and adjustment)
