Home > Products > Stone-coated roof tile making machine > FX stonecoated antique tile making machine
FX stonecoated antique tile making machine
- 6 Set / Sets per Month
- tianjin
- T/T
Product Details
Condition: | New | Type: | Other, Tile Forming Machine, stonecoated antique tile making machine | Tile Type: | Colored Steel |
Use: | Roof | Production Capacity: | 6sets/month | Place of Origin: | Hebei, China |
Brand Name: | xingbo | Model Number: | FX-Stone-coated | Power(W): | 101kw |
Voltage: | 380v50hz3p | Dimension(L*W*H): | 56*1.8*1.2m | Weight: | about 60T |
Certification: | BV CE ISO | Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
FX stonecoated antique tile making machine
1.Profile of FX stonecoated antique tile making machine
2.Component and Details
(1)Automatic bottom glue spraying equipment,
Outside Dimension | 4000 × 1350 × 850mm(L*W*H) |
Transmission | 2.2kw,variable-frequency,adjustable-speed,motor0-32R/Min |
Conveying device | Beciprocating chain conveys |
Automatic glue spraying assembly | with motor 0.06kw |
Adsorption of dust removal equipment | 1 set |
Air compressor | 1 set 0.9m |
Automatic pressure glue canister | 1 set range of adjustable pressure 0.1-0.6MPa |
Automatic glue spraying gun | 4 sets |
Fill glue gun | 5 sets |
Glue gun stand | 1 set |
(2)Automatic sandblasting room ,
Outside Dimension | 3000 ×1850 ×700mm(L*W*H) |
Transmission | With glue spraying equipment compound chain transmit |
Conveying device | Compound chain transmit |
Automatic sand hopper | 1 set dimension 550*600*500mm |
Automatic rising machine | 1 set with rising height 1.9m power 300kg/h |
Sun-blasting gun | 4 sets |
(3)First drying room,
Outside Dimension | 25000 ×800 ×1200mm(L*W*H) |
Frame type heat preservation wall | Fill up with heat preservation material which is bended with 1mm carbon steel |
Automatic temperature controller | 2 sets,range of adjustable temperature 0-160°C |
Infrared fluorescent tube | 50 pcs |
Conveying device | Reciprocating chain conveys |
Cooling device | 1 set |
(4)Automatic surface glue spraying equipment,
Outside Dimension | 3000 ×850 ×700mm(L*W*H) |
Automatic glue spraying gun | 2 sets |
Automatic spraying assembly | 1 set range of pressure 0.1-0.6MPa |
Adsorption of dust removal equipment | 1 set |
Manual spraying gun | 5 sets |
(5)Second drying room equipment,
Outside dimension | 30000 ×850 ×700mm(L*W*H) |
Frame type heat preservation wall | Fill up with heat preservation material which is bended with 1mm carbon steel |
Conveying device | Reciprocating chain conveys |
Infrared heat tube | 50 pcs |
Automatic temperature controller | 2 sets,range of adjustable temperature 0-160°C |
Conveying device | Reciprocating connection conveys 30m |
Cooling device | 1 set |
Automatic printing code and marking | 1 set of automatic printer |
3.Technical characteristic:
(1)Resist to artificial climate aging:100h film no crack,no powder,no obvious discoloration.
(2).Heat resistant:90±2°C no obvious change.
(3)Low temperature resistant: -40±2°C*24h no obvious change.
(4)Waterproof:240h no bubbles,no obvious change.
1.We will arrange the shipment within 45 working days upon confirmation of purchasing order or recepit of deposit.
2.Package:Adopt the wood pallet package,the waterproof film outside
1.Warranty: One year, and we will provide the technical support for the whole life.
2.Spare parts:

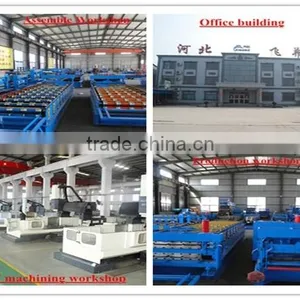

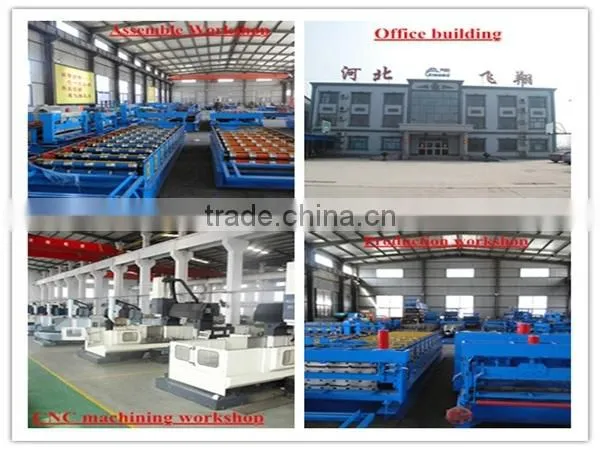

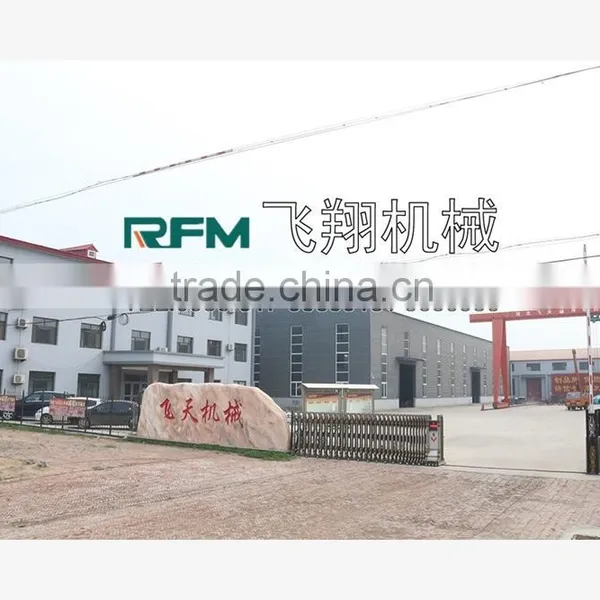

1.Introduction of our factory:
HEBEI FEIXIANG ROLL FORMING MACHINERY CO.,LTD is the biggest and strongest in the north of china,our factory is specialized in manufacturing color steel roll forming machine,C&Zpurlin machine,Glazed tile forming machine,steel structural floor panel roll forming machine,sandwich panel roll forming machine,highway guardrail forming machine, Stone-coated metal roof tile roll forming machine and other cold bending forming equipments .
We have various kind of machinery and production methods to meet our customer’s increasing demands,our different types of roll forming machine are easy to operate and have efficiency which have leading position both at home and abroad,now our prodcutions have been exported to Canada,SouthKorea,Russia,Holland,Surinam,Sri Lanka,Malaysia,Viet Nam,Nigeria,Tanzania,India,Mongolia,America,Kazakhstan,Bolivia,Azerbaijan,Vladivostok,and other countries all over the world.
Our company insists on the service aim:Quality First,Credit First.We believe that quality is lifeblood of enterprise,We always supply high quality of products and satisfied after-sale service for every client
2.Certificates and Customer :
3.Contact me:
4.How to visit our company
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine. The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 100USD/day.
