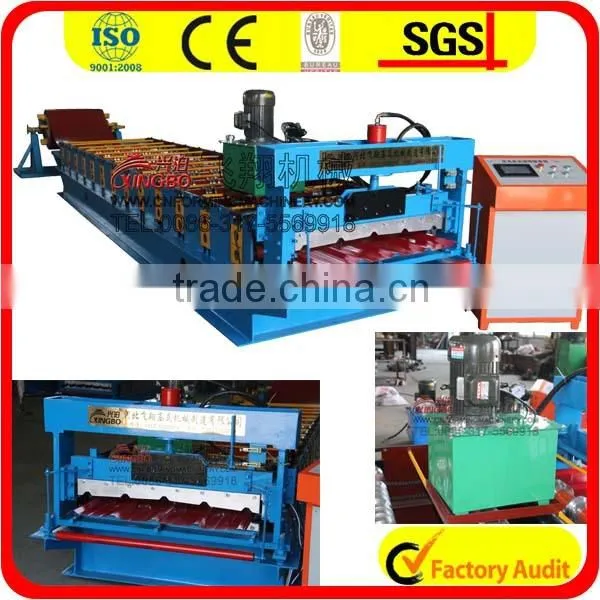

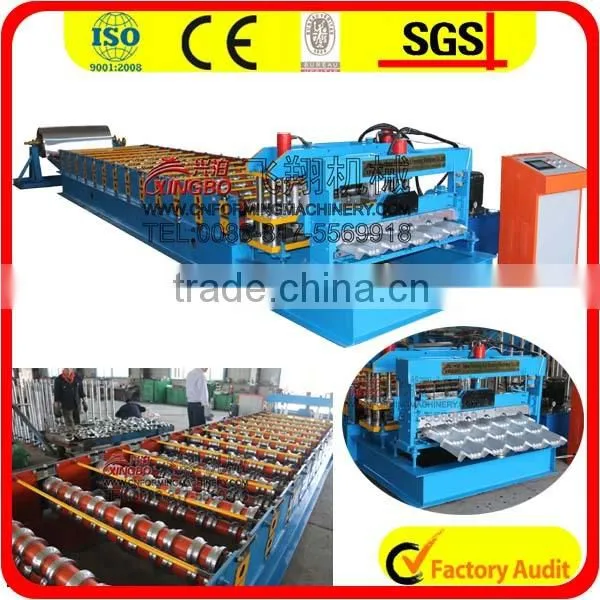

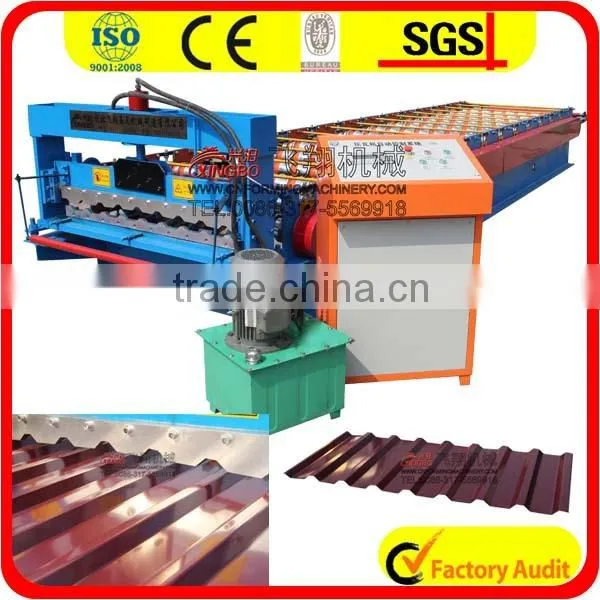

Russia Tiles C8 C10 C21 H35 H60 roll forming machine
Our factory:
Our credit:
My name card:
1.The chart of process flow:
Decoiling--active feeding---forming---measuring length---cutting---product to stand
2.Main equipment:
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.
3.Technical parameters
1)Profile
floor deck machine: H75 H60 H57

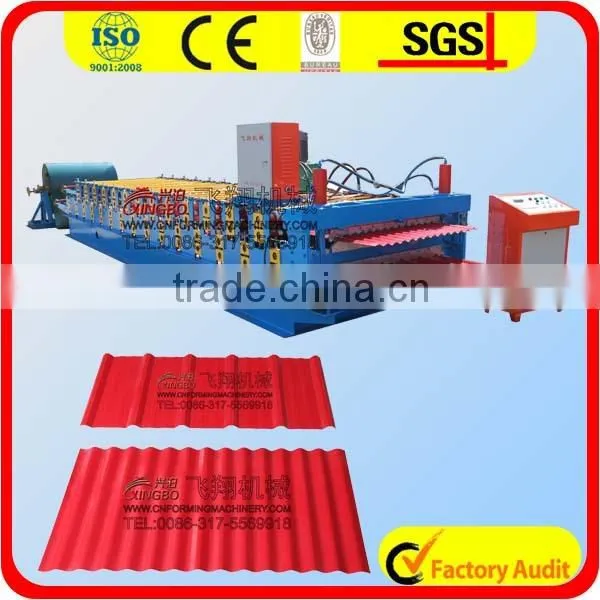

C8 and C21 double layer roll forming machine:
C8 roll forming machine:

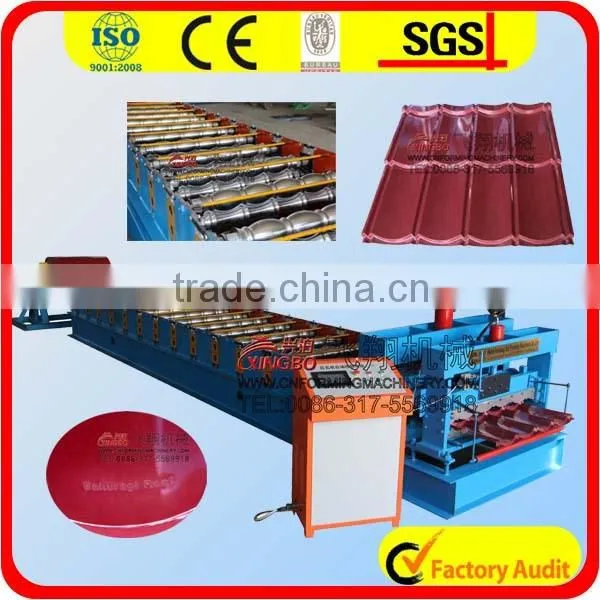

Glazed tile 1144 roll forming machine:
Glazed tile 1100 roll forming machine:
thickness:0.3--1.2mm
2)inner tight decoiler
il inner diameter:450mm--550mm
B.max width of coiling:1250mm
C.max weight of loading:5000kg
3)main forming machine
A.Shaft material:45# steel,bearing steel outer diameter 85mm
B.Main motor power:5.5kw
C.Forming speed:8--10m/min
D.Voltage:380v,50hz
E.Roller station:15
4)cutting system
A.hydraulic cutter
B.Blade and mould material:Cr12 steel with quenched treated 60-62°
C.Cutting system advanced hydraulic drive,after automatic cutting after forming.no
5)control system
A.PLC: taida form Taiwan
B.Coder:from south korea
6)hydraulic system
A.advanced hydraulic system from taiwan
B.Power:3kw
4.Spare Parts
1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2).Rubber mat 1 pcs;
3).Bolt spanner 1 pcs
Terms:
1.Delivery:in stock
2.Package:export standard package for container
3.Payment:TT (30% by TT in advance,70% by TT after you inspect machine we need)
4.Delivery date:within 30 working days after receiving deposit
5.Products Warranty:12 month,and we will provide the technical support for whole life of the equipment.
