Specifications
1,construction machinery and equipment2,high level
3,professional
4,good after-sale service
5,delivery on time

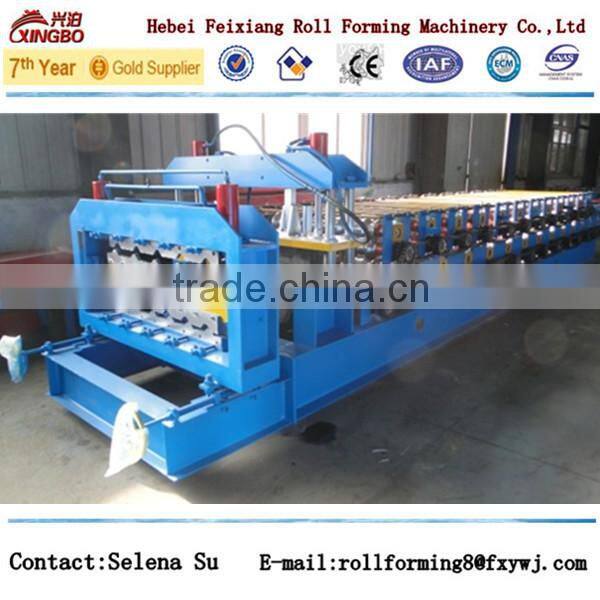

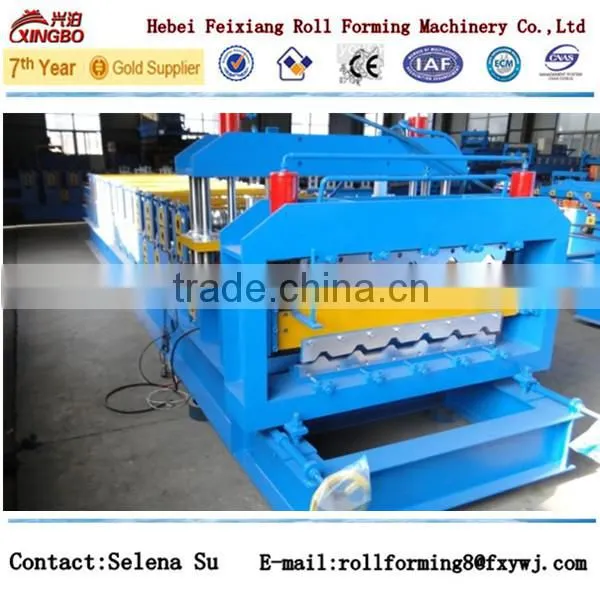

construction machinery and equipment
1.profile drawings:
coil material:color sheet, galvanized sheet
material thickness:0.3mm-0.8mm
2.process flow:
decoiling--feeding--forming--cutting--production

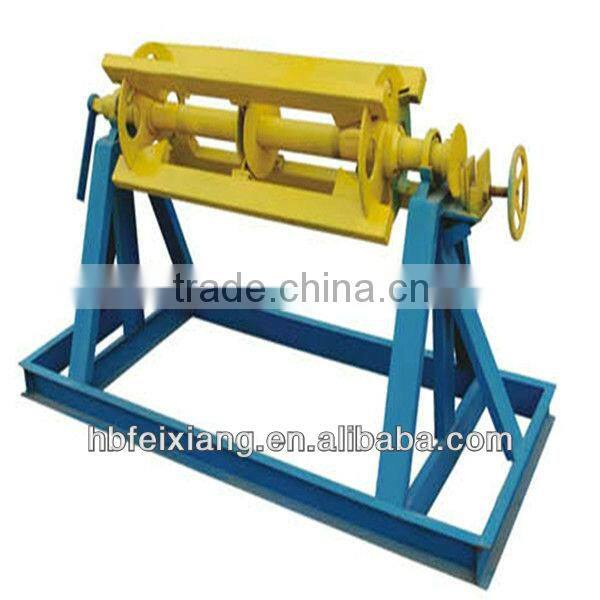

3.manual decoiler:
-----outside diameter is 1500mm
-----inside diameter is 450-550mm
-----coil width is 1250mm
-----coil load 5 ton

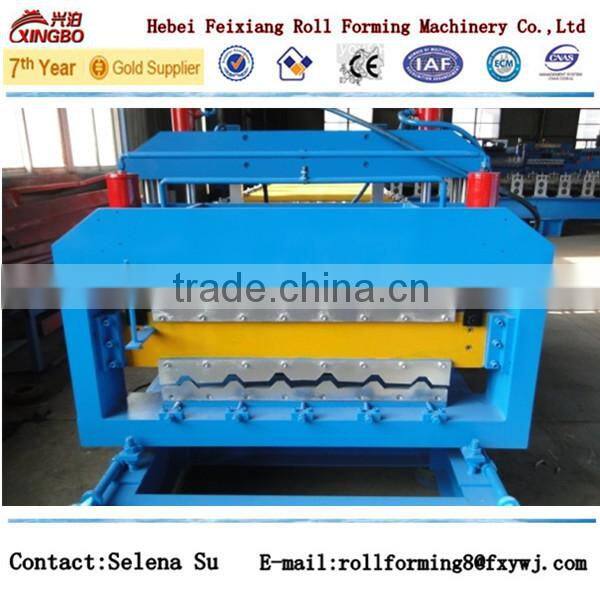

4.forming device:
-----shaft material:45# steel ourter diameter is 80mm
-----up layer is glazed profile,down layer is ribs profiles ,trapozidal .
-----roller material:45#steel
-----15/18 forming steps (according to the profile)
-----chains transport

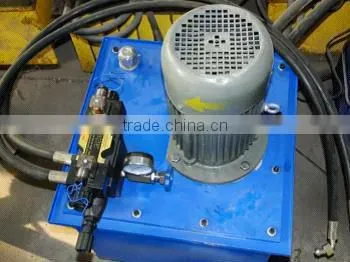

5.hydraulic device:advanced hydraulic drive,automatic cutting after forming,no distoring or wasting,high level safety factor.

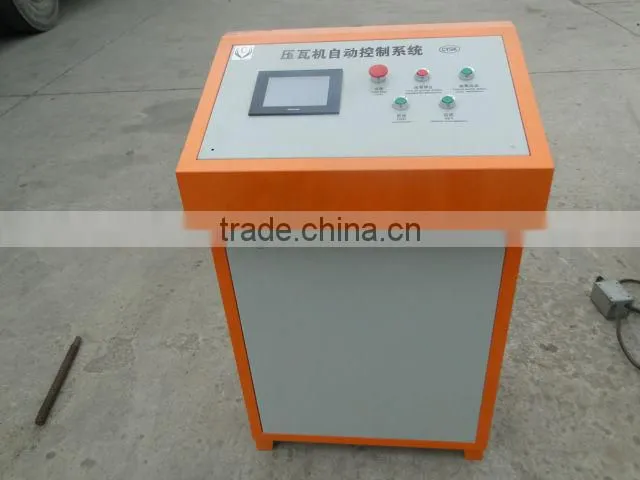

6.controlling device:
computer is used to control length and quantity,machine will automatically cut to length and stop when required quantity is achieved.(we have two kinds of control station for customer's choice the text screen and the touch screen)

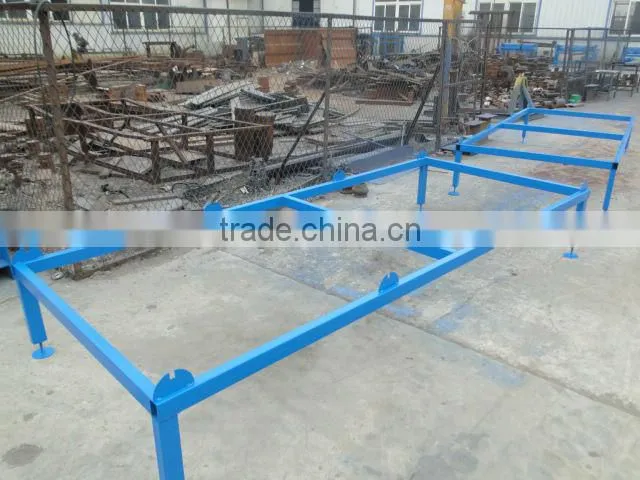

7.simple output frame
8.spare parts:
-----conk 2 pcs
-----fuse-link 4 pcs
-----rubber mat 1 pcs
-----bolt spanner 1 pcs
9.payment and terms:
-----payment:30%T/T in advance and balance 70% after inspection confirmation before shipment.
-----Delivery:within 45 working days after receipt of deposit
10.Warranty:
-----a.one year,and we will providethe technical support for the whole life.
-----b.training:the buyer should charge of visa,return ticket,food and accommodation overseas and USD50/person/day for salary.
-----c.need one technicians
-----d.training time:one week(contains the time of installation and adjustment)

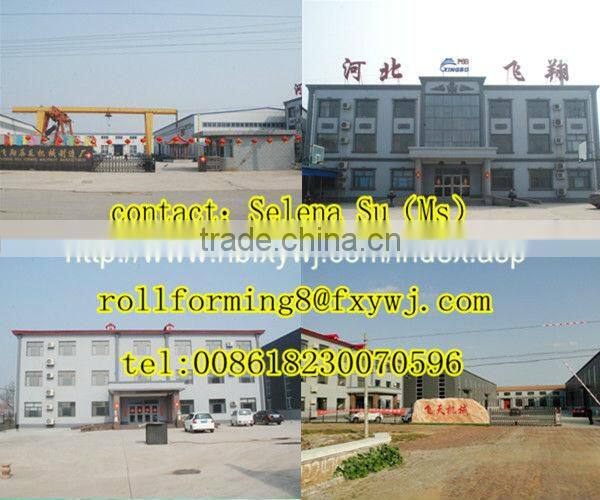

11,office building
Certification:
Contact:
Call me if necessary.+86 317 5569916
Mobile:+86 18230070596
Selena Su(Ms.)
