FX fiber cement boards structural insulated sandwich panels

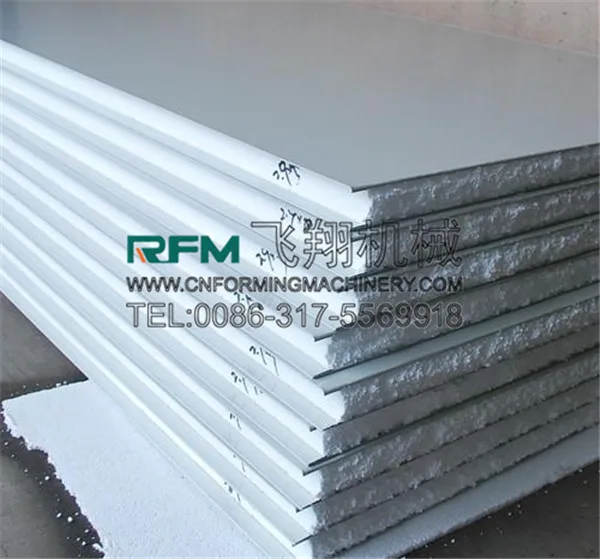

Processing flow and final goods:
Technical parameters of sandwich panel making machine:
(1)Length of main composite parts: 8 meters
(2)Shaft number: 41 roots
(3)Pressure rack: welded square tube180*80*6mm
(4)Feeding equipment with conveying belt: 6.5meters long
(5)7 inchs color touch screen,Delta PLC control system,Longmu quantity measurement equipment from Japan.
(6)Pure copper core conductor: host power 4kw
(7)2 working lamp,electric control corrugated frame with instructions.
(8)Double tiles press ,up 13 and down 14 groups.
(9)Double row slitting machine and fasten machine: each 1 set
(10)Stationary sealing box
(11)Double saw for cutting
(12)Total power: 28kw

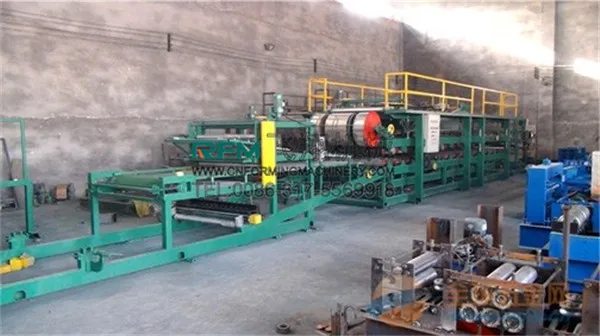

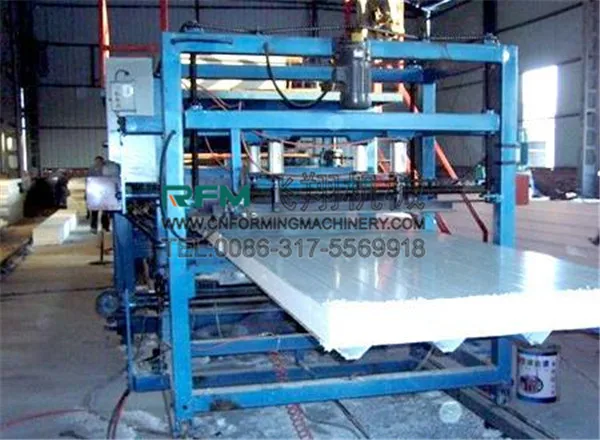

Detail photos of sandwich panel making machine

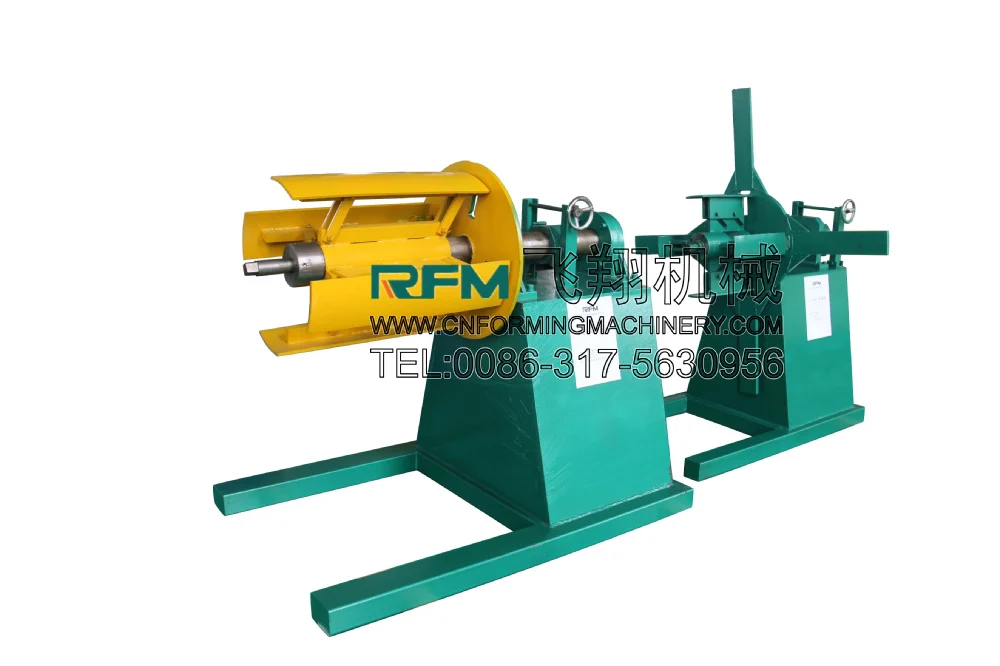

Part One: Decoiler
(1)With screw loading, adjustable belt brake whole support side by side
(2)Coil load within 7 tons
(3)Coil width within 1250mm
Part Two :Main forming machine
(1)the frame is welded by the 300# H steel
(2)thickness of the middle plate:14mm
(3) shaft diameter:70mm
(4) 13 steps of forming rollers
(5)motor power: 3kw
(6)feeding platform: with plate cutting machine
(7) dimension:7.5*1.5*1.3M(L*W*H) And the weight is 3T
Part Three : Composite device
(1)this device contains the pressing rib, gluing, heating, composite, crimping, slotting and prune
(2) frequency control for the main forming machine
(3)the thickness of up and down can be adjusted by electric
(4) the diameter of the composite plat shaft: 150mm, iron with glue outside to Anti-wear anti-skid
(5) the quantity of the shafts: 18 pieces of plat shaft and 6 pieces of forming shafts.
(6) the frame is welded by the square pipe, to Guarantee the stability of the equipment and smooth running.

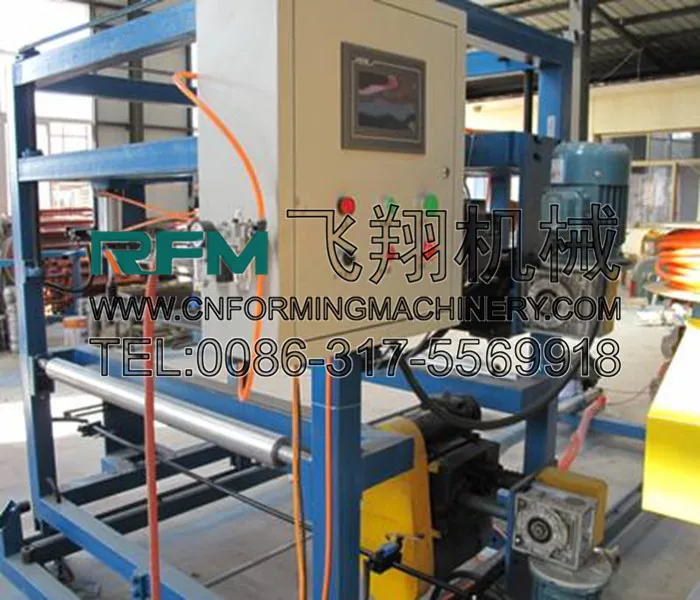

Part Four: Electrical control system
(1)Using delixi electric control low pressure(as customer's request)
(2)configuration: PLC and frequency: Taiwan Taida, to make the length of set more accurate
(3)7 inches touch screen, and it's easy to control
(4)dimension:11.5*1.2*2.2M(L*W*H)
(5)weight: 7T
Part Five : Cutting device
(1)air clamper, cylinder can make the cutting part move, after cutting,the cutting part can back with cylinder's driving
(2)he way of cutting: saw and blade
(3)power: 4kw
(4)dimension: 3*2*1.5M(L*W*H)
(5) weight: 1T
Part Six: Production stand
(1)welded by the angle iron and the square pipe
(2) we will offer four carrier rollers for each production stand
(3)dimension: 3*1.3*0.8M(L*W*H)
(4)quantity: two sets
__________________________________________________

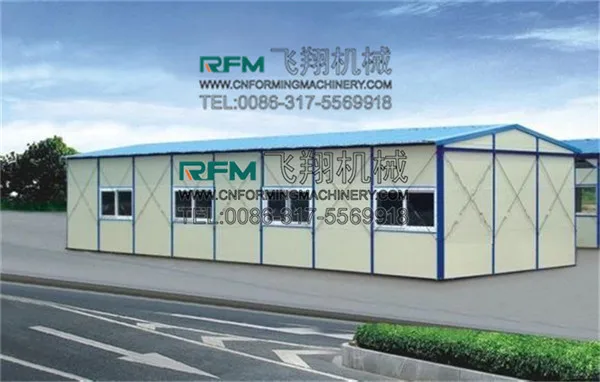

Application:
Payment terms and delivery:
Payment terms |
Payment :30%T/T in advance and balance 70% after inspection confirmation before shipment. |
Delivery time |
within 45 working days after receipt of deposit
|
Warranty |
One year, and we will provide the technical support for the whole life.
|
Training |
1). Training: the buyer should charge of visa, return ticket, food and accommodation . overseas and USD100/person/day for salary. 2). Need one technicians 3). Training time: one week to 15 days (contains the time of installation and adjustment) |
Validity time |
Validity of the quotation is 30 days |
We will arrange the shipment within 30 working days upon confirmation of purchasing order or recepit of deposit.
