Specifications
1,cold rolling steel mill machine2,high level
3,professional
4,good after-sale service
5,delivery on time

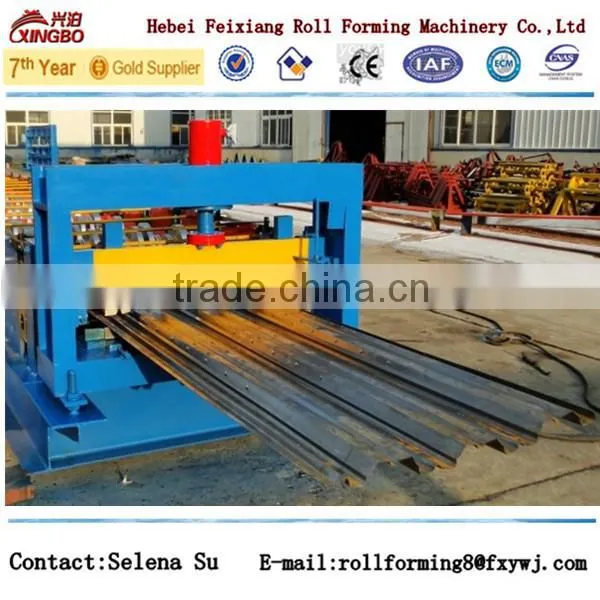

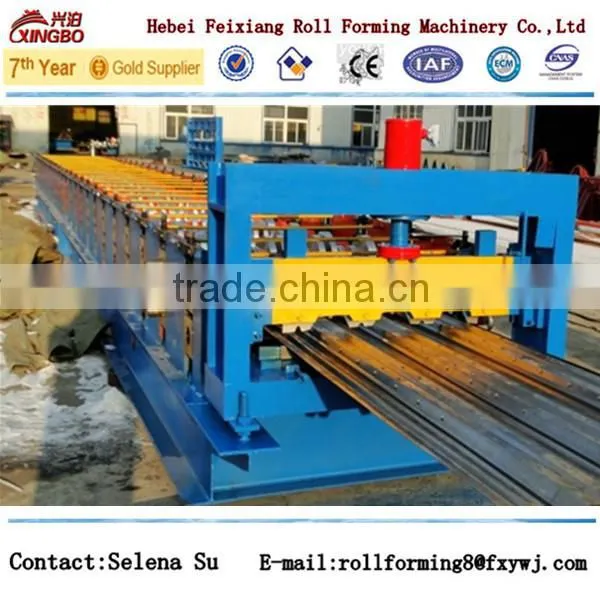

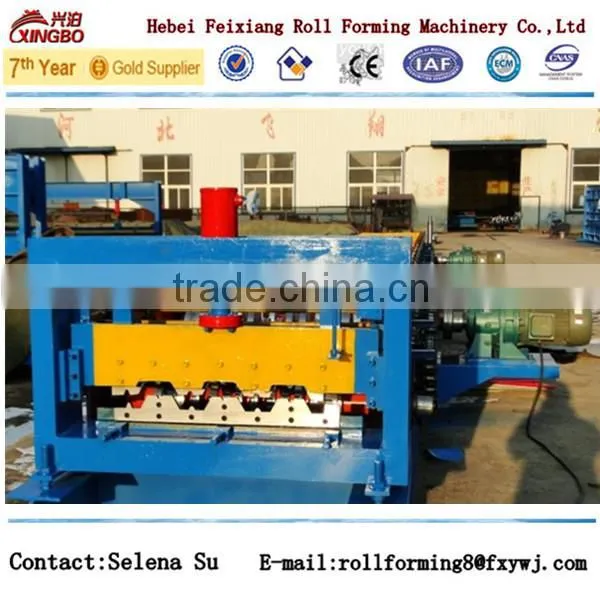

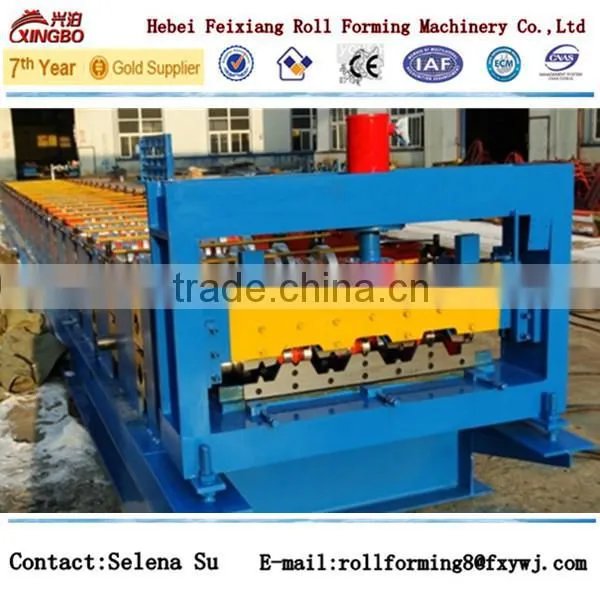

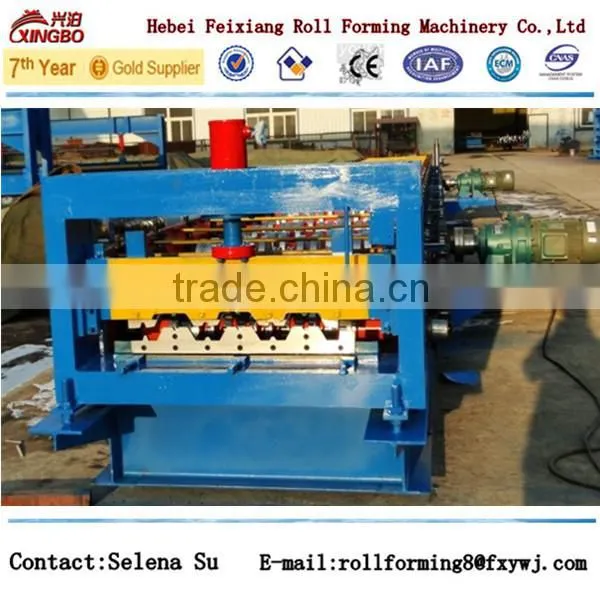

cold rolling steel mill machine
Decking roll former
1. Process flow
Decoiling--feeding---forming---cutting---production
2. Introduction of Equipment
| No | Name | Unit | Qty |
| 1 | Manual uncoiler | set | 1 |
| 2 | Main machine for roll forming | set | 1 |
| 3 | Control system | set | 1 |
| 4 | Hydraulic system | set | 1 |
| 5 | Simple output fram |
set | 1 |
3. Manual decoiler
1.Outside diameter of coil is 1600 mm
2.Inside diameter coil is 500 - 600 mm
3.Coil Width is 1000 mm
4.Coil load 5 ton
4. Forming device
1.Model of frame: 350#
2.Shaft material: 45# steel, outer diameter 90mm
3.Roller material: #45 steel
4.Number of forming step:28 steps
5.1 inches Chains transport
6.Forming speed:10 m/min
7.Main motor power:18.5kw
5.Warranty:One year, and we will provide the technical support for the whole life.
