FX lightweight concrete panel machines

 FX lightweight concrete panel machines

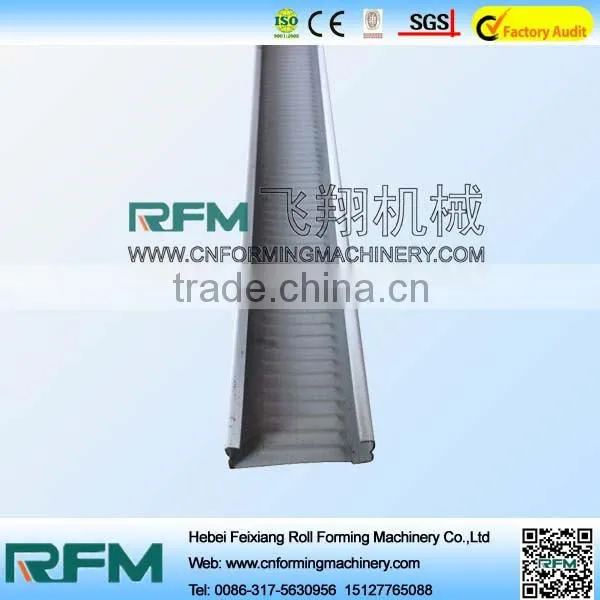

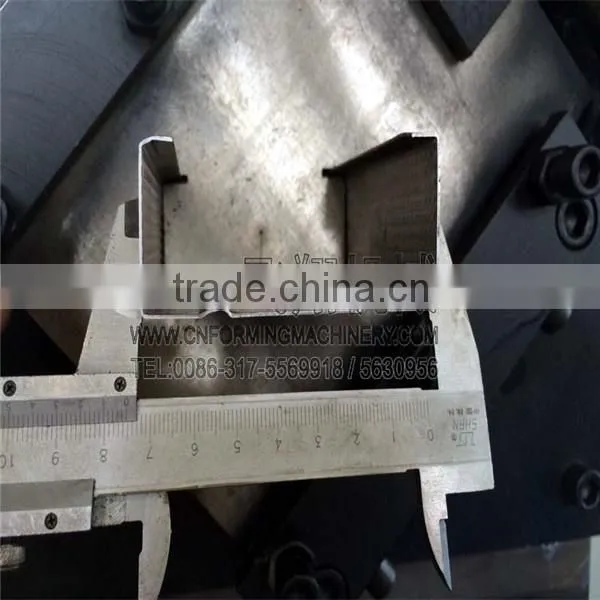

1.Profile drawings

2.The Chart  of  Process  Flow

Decoler -active feeding-forming -caculate length --automatic cutting --product

3. The component of equipment

Hydraulic decoiler ,roll forming machine, hydraulic cutting ,electric system,hydraulic system, out put stand

4. Technical specifications

1automatic inner tight decoiler

a.  coil inner diameter 450mm-550mm

b. maximum width of coiling600mm

c. maximum weight of loading1500kg

PS:We also can provide the hydraulic decoiler with car or without car ,if you need the automatic decoiler.

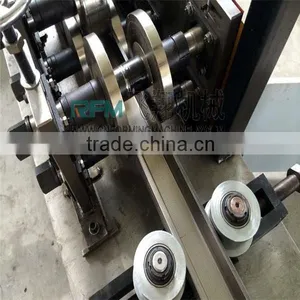

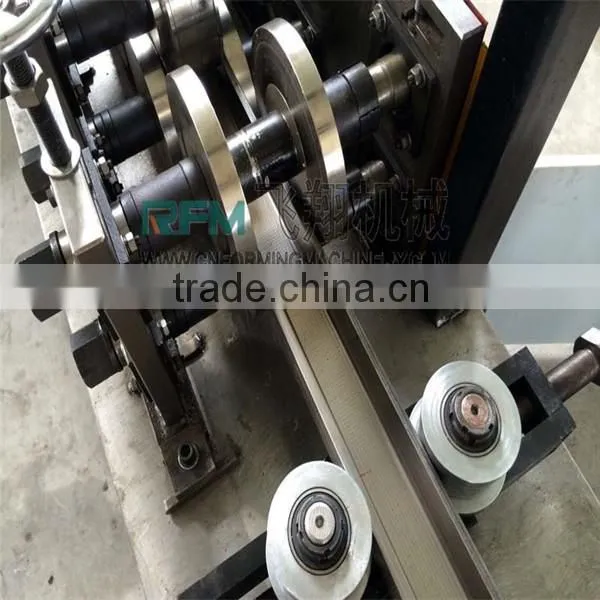

5.Main forming machine

a. number of forming steps  depend on the machine

b. material of shaft45# steel . Outer diameter50mm

c.main motor power3kw

d.  The speed of forming:18-20m/min

e. punching,   after forming ,before cutting .

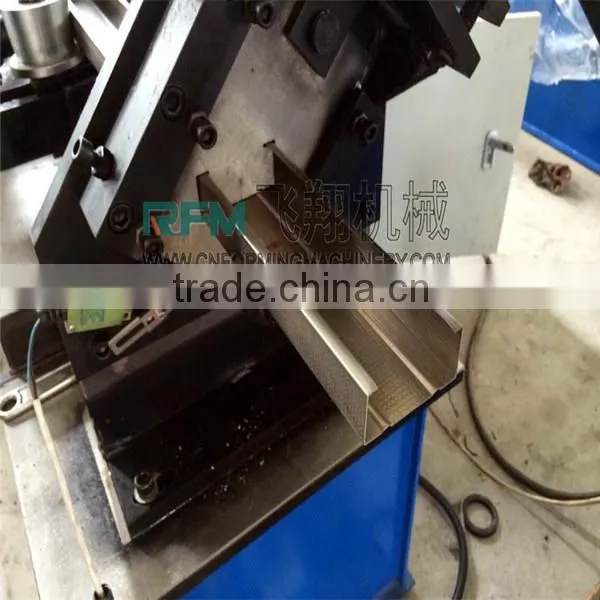

6.hydraulic cutter

a. material of blade:Cr12 mould steel with quenched treatment60-62

b. cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(main motor stop cutting)

7.the electrical control system

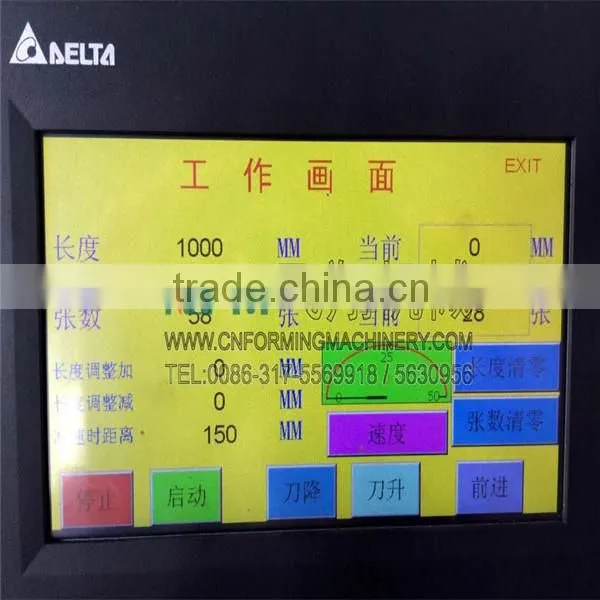

a. The Brand of display:

b.The main computer (PLC):Tai Da DVP14

8.Hydraulic system

a. Adopting advanced hydraulic system of Tai Wan

b. Power:3kw

9.The equipments coating , package

a.the coating adopt international general shade-guide

b.The package :simple waterproof package.

10.the spare parts of the equipment .

a.the element of easy damaging :contactor conk: 2 unit ,fuse: 4 set

b.the hydraulic sealing up cushion: 1set

c.Bolt spanner:1 set

11.Terms

1).The payment terms: Pay 30% after signed the contract ,Pay 70% after check and accept before  deliver .

2).Warranty : One year ,and we will provide the technical support  for the whole life .

3).When picking up goods, our company will provide  the  operating instruction book ,the flow drawing of  equipment , installing sketch map of equipment ,The hydraulic principle chart, the element of easy damaging ,the total  chart of equipment .

4). Delivery time : Within 45  working days after receiveing deposit.
