Glazed Tile Forming Machine, Glazed Roof Tile Steel Roll Forming Machine

Glazed Tile Forming Machine, Glazed Roof Tile Steel Roll Forming Machine thumbnail-1
Glazed Tile Forming Machine, Glazed Roof Tile Steel Roll Forming Machine thumbnail-2
Glazed Tile Forming Machine, Glazed Roof Tile Steel Roll Forming Machine thumbnail-3
Glazed Tile Forming Machine, Glazed Roof Tile Steel Roll Forming Machine thumbnail-4
Glazed Tile Forming Machine, Glazed Roof Tile Steel Roll Forming Machine thumbnail-5
Glazed Tile Forming Machine, Glazed Roof Tile Steel Roll Forming Machine thumbnail-6
Glazed Tile Forming Machine, Glazed Roof Tile Steel Roll Forming Machine photo-1

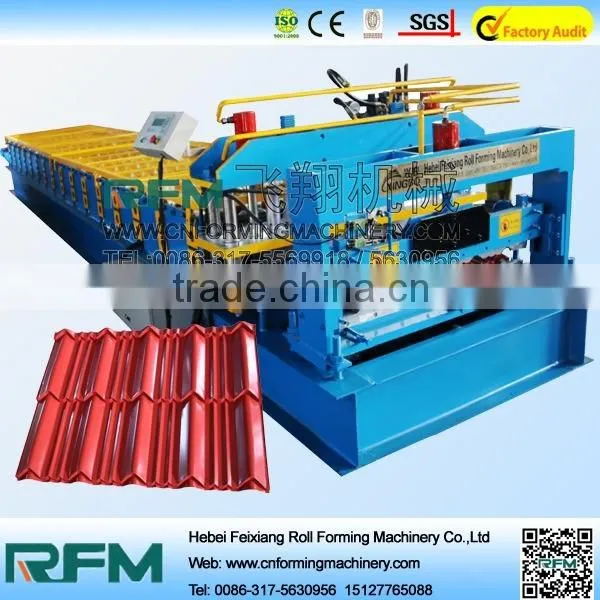

Glazed Tile Forming Machine, Glazed Roof Tile Steel Roll Forming Machine photo-2

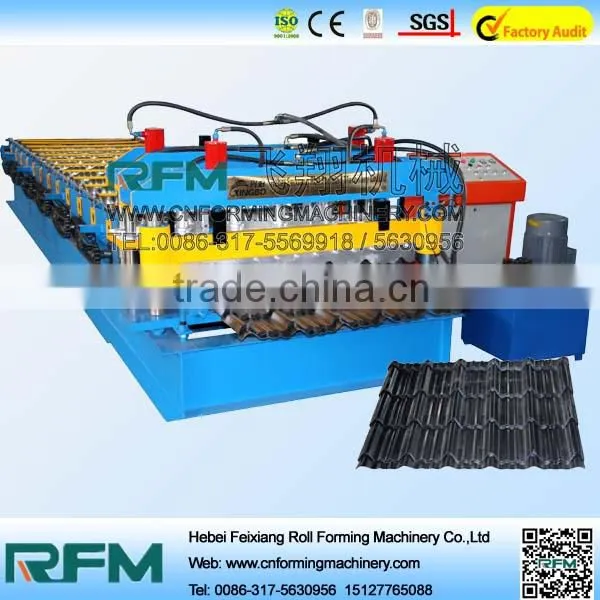

Glazed Tile Forming Machine, Glazed Roof Tile Steel Roll Forming Machine photo-3

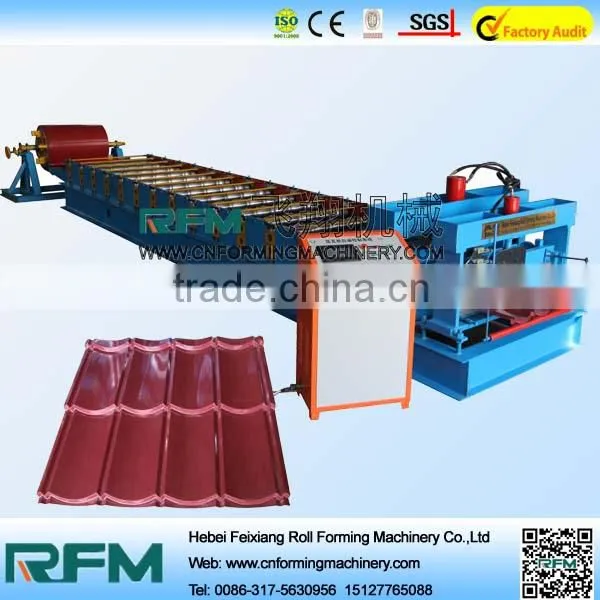

Glazed Tile Forming Machine, Glazed Roof Tile Steel Roll Forming Machine photo-4

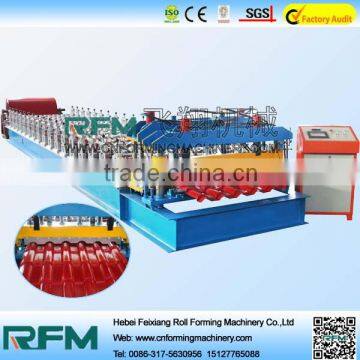

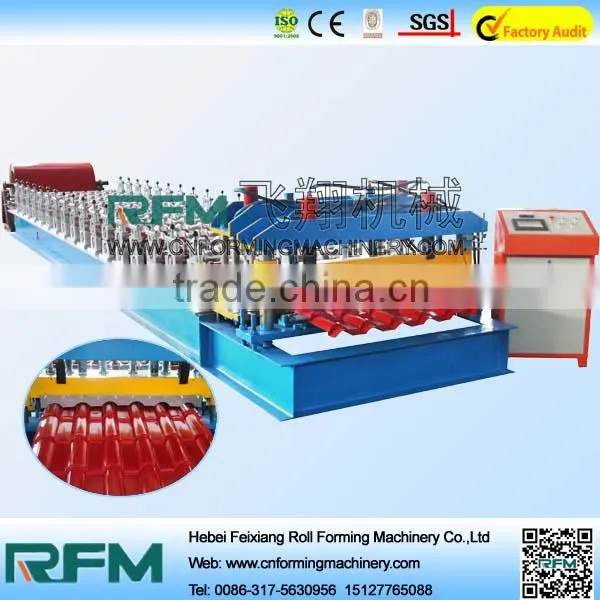

Glazed Tile Forming Machine, Glazed Roof Tile Steel Roll Forming Machine photo-5

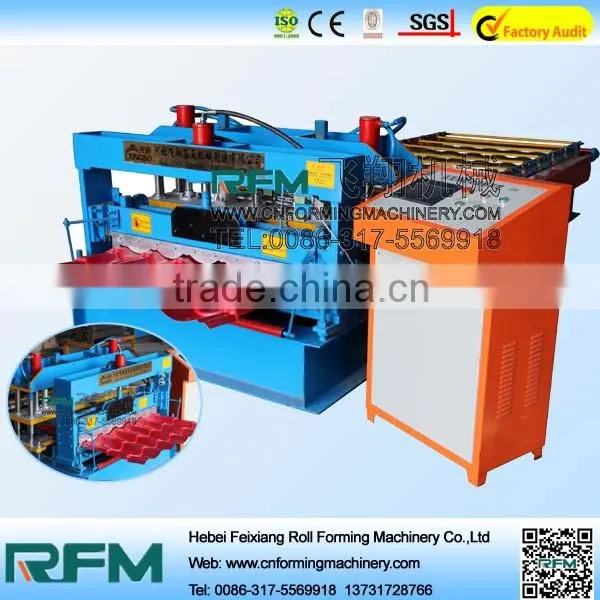

Glazed Tile Forming Machine, Glazed Roof Tile Steel Roll Forming Machine photo-6
US$ 7,900.5 - 15,000.5 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Metal wall&roof roll forming machine
Tile Type:
Colored Steel
Contact Supplier Request Quote Chat Now
Hebei Feixiang Roll Forming Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XinGang TianJIn China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Metal wall&roof roll forming machine
Tile Type Colored Steel
Use Other, wall&roof
Production Capacity 20sets/month
Place of Origin Hebei, China
Brand Name XINGBO
Model Number fx-panel
Power(W) 3KW
Voltage 380V 50Hz 3Phases
Dimension(L*W*H) as design
Weight about 3T
Certification CE ISO9001
Warranty within one year
After-sales Service Provided Engineers available to service machinery overseas

      Glazed tile forming machine,glazed roof tile steel roll forming machine

1.The chart of process flow:

glazed roof tile steel roll forming machine

  Decoiling--active feeding---forming---measuring length---cutting---product to stand

Glazed tile forming machine, glazed roof tile steel roll forming machine

2.Main equipment:

glazed roof tile steel roll forming machine

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

Glazed tile forming machine, glazed roof tile steel roll forming machine

3.Technical parameters of  glazed roof tile steel roll forming machine

1)Profile    thickness:0.3--1.2mm      2)inner tight decoiler

il inner diameter:450mm--550mm

B.max width of coiling:1250mm

C.max weight of loading:5000kg

D.Voltage:380v,50hz

E.Roller station:15

Glazed tile forming machine, glazed roof tile steel roll forming machine

4.cutting system

A.hydraulic cutter

B.Blade and mould material:Cr12 steel with quenched treated 60-62°

C.Cutting system advanced hydraulic drive,after automatic cutting after forming,and  no noise and waste

Glazed tile forming machine, glazed roof tile steel roll forming machine

ntrol system

A.PLC: 3.2inch screen Taida form Taiwan

B.Coder: from south korea

Glazed tile forming machine, glazed roof tile steel roll forming machine



 6.hydraulic system

A.advanced hydraulic system from taiwan
B.Main Power:3KW

Glazed tile forming machine, glazed roof tile steel roll forming machine

7.Product stand:

Glazed tile forming machine, glazed roof tile steel roll forming machine

Our assessment and customers,

Glazed tile forming machine, glazed roof tile steel roll forming machine

Glazed tile forming machine, glazed roof tile steel roll forming machine

8. Payment  terms of Automatic roll making machine  :

30% by T/T in advance, 70% by T/T after you check and inspect the machine

Glazed tile forming machine, glazed roof tile steel roll forming machine


9.Delivery date:
within 35 working days after receiving deposit
Glazed tile forming machine, glazed roof tile steel roll forming machine

10.Contact information
Glazed tile forming machine, glazed roof tile steel roll forming machine
For more,click here:
Glazed tile forming machine, glazed roof tile steel roll forming machine
