Help CenterRoof Forming Machine Machine Design
Related Products

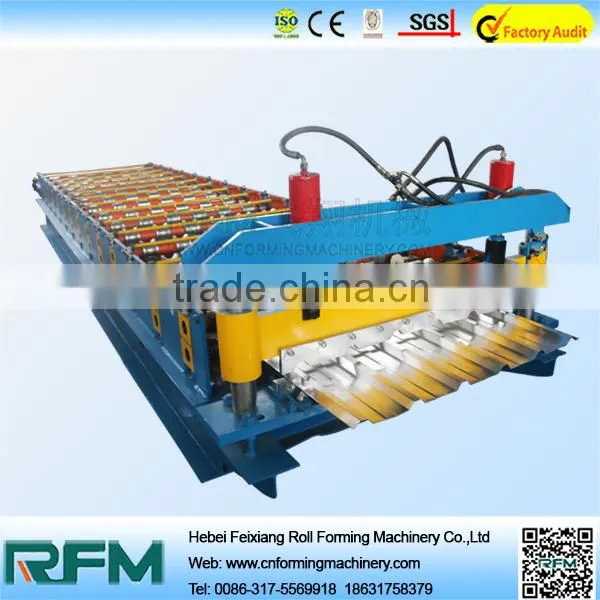

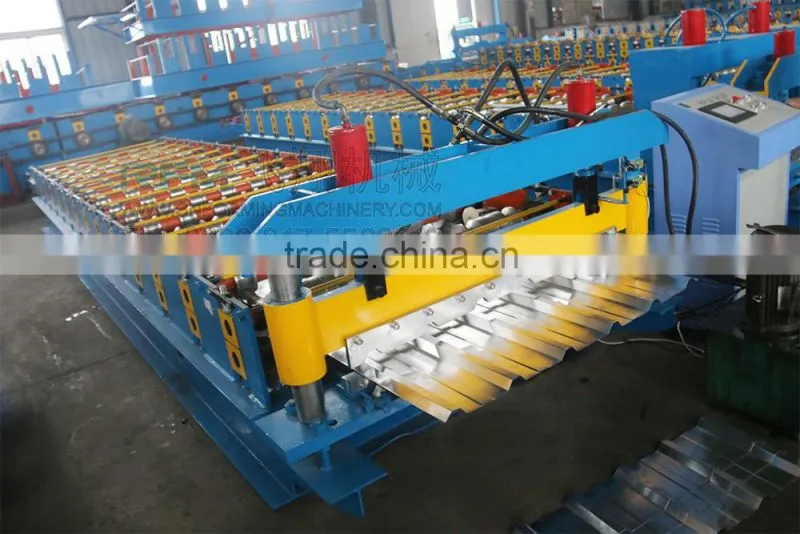

metal roofing panel machine
| ||||||
| ||||||
No. |
Item |
Parameter |
Note |
|||
1 |
Suitable |
Type |
PPGI & PPGL |
|
||
|
Width |
1220mm |
|
|||
Material |
Thickness |
0.30—0.80mm |
|
|||
|
Yield stress |
240Mpa TO 550Mps |
|
|||
2 |
Product |
Cover width |
1000mm±2mm |
Refer to drawing |
||
|
Wave height |
28±1mm |
|
|||
Specs |
Pitch Width |
200±2mm |
|
|||
|
Length |
Any length |
|
|||
3 |
Machine |
Active shaft |
No. 45 steel |
|
||
|
Roller |
70mm and No. 45 steel Chrome plated |
|
|||
Material |

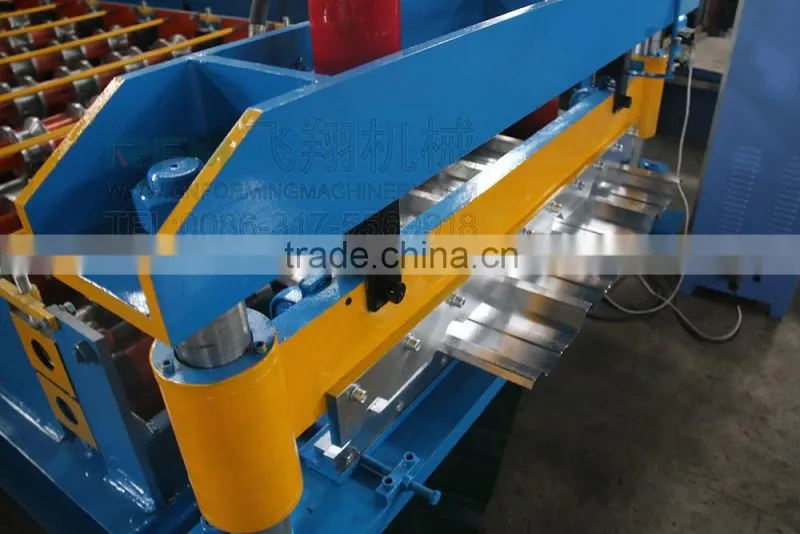

Cutting Blade |
SKD11 |
|
|||
4 |
Power Requirement |
Type |
440AC/50HZ |
Customized |
||
|
Main motor |
15Kw |
|
|||
|
Hydraulic |
4kw |
|
|||
5 |
Speed |
Forming Speed |
4-8m/min |
Excludes Cutting |
||
Hydraulic |
Type |
Automatic with coil car |
|
|||
|
Max. Capacity |
10 T |
|
|||
6 |
Automatic |
Suitable coil OD |
1200mm |
|
||
|
Suitable coil ID |
508mm |
|
|||
Decoiler |
Max Coil width |
1250mm |
|
|||
|
Uncoiling style |
Active uncoiling |
|
|||
7 |
Forming Stand |
About 22-24 groups |
Complete full rollers |
|||
8 |
Transmission style |
Chain, sprocket |
Entire chain |
|||
9 |
Main machine structure |
Guide column or wallboard |
|
|||
10 |
Type of Cutting |
length-set cutting |
||||
We can design the machine according to your specification and profile drawing.

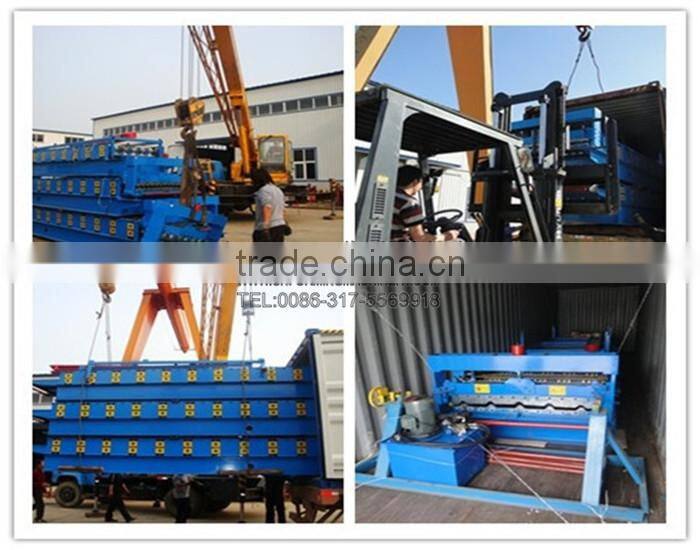

Packaging and delivery:
(1)Package standard:
Control box and easy damage parts: protective paper and waterproof packaging material,or wooden boxes .
Main forming device: waterproof material
Hydraulic pump and spare parts: paper boxes with waterproof material.
(2)Delivery:
We will arrange the shipment within 30 working days upon confirmation of purchasing order or recepit of deposit.
About Feixiang
(1)Simple introduction of our factory:
HEBEI FEIXIANG ROLL FORMING MACHINERY CO.,LTD:
(1)Two decades frofessional cold steel forming equipments manufacturer
(2)One comapny with two factory,about 30000 square meter,more than 100 employees
(3)National GB/T,CE,ISO9001:2008 Certificates
(4)Built business relationship with customers from more than 65 countries and areas
(5)Main product : Color steel roll forming machine,C&Zpurlin machine,Glazed tile forming machine,Steel structural floor panel roll forming machine,Sandwich panel roll forming machine,Highway guardrail forming machine and Other cold bending forming equipments .
(6)Perfect after-sale service

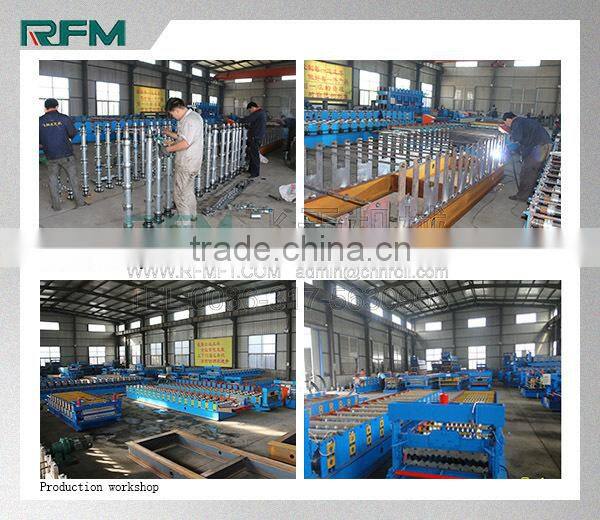

(7)Photos of our company:
(2)Certificates and customers:
Waiting for ya,Contact me:
