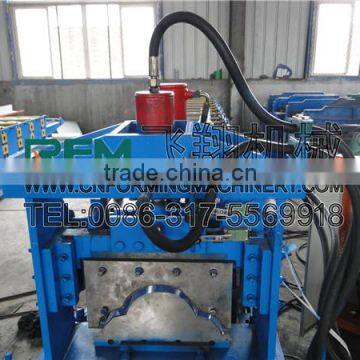

gutter penal metal machinery ridge cap making machine
metal angle roll forming machine with punching Process Flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
metal angle roll forming machine with punching Forming device
No. |
|
|
1 |
Length of the main part |
3000*800*1400mm |
2 |
Weight of main part |
About 3 t |
3 |
Voltage |
380V/50HZ3Phase (as customer’s request) |
4 |
Roller fixer |
Guide column |
5 |
Frame |
Middle plate welded Memorial arch frame type |
6 |
Frame thickness |
25mm |
7 |
Drive mode |
Gear or chain |
8 |
Material of rollers |
45# steel with tempering |
9 |
Material of shafts |
45# steel with tempering |
10 |
Diameter of shafts |
φ40mm |
11 |
Number of rollers |
10 rollers |
14 |
Main power |
3kw (Cycloidal planetary gear speed reducer) |
Main Company :Hebei Feixiang Roll Forming Machine
Now, our products not only meeting the domestic demand, but also being exported to more than 80 countries and regions. For example:
Asia: Indonesia,Malaysia,India,Saudi Arabia,United Arab Emirates,Pakistan,Iran,Vietnam, Korea,Kazakhstan,Iraq,Israel,Oman,Yemen,Syria,Philippines,Turkey,Uzbekistan…
Europe:United Kingdom,Spain,Russia,Ukraine,Italy,Greece,Poland,Romania,Lithuania…
Africa:South Africa,Zambia,Libya,Nigeria,Algeria,Egypt,Angola,Botswana
South-America:Chile,Venezuela,Brazil,Columbia,Argentina…
North-America:America,Trinidad and Tobago,Grenada,Nicaragua…
Thanks very much for your time, welcome to contact Feixiang , we are with you within 24 hours.
We want to know following information.
1), What is the exact profile you want to produce?
2), What kind of material you will use, such as steel or aluminium, max coil weight, thickness?
3), What kind of decoiler and stacker you need?
Pls contact us as below informaiton,hope can cooperate,thanks advance.
