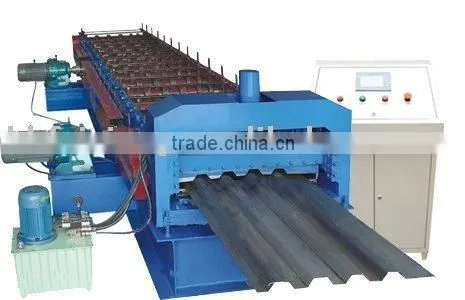

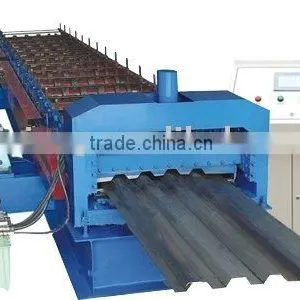

Help CenterLarge-size Car Panel Roll Forming Machine
Related Products
-
Slitting Machine,slitter,roll Forming MachineUS$ 1,500 - 2,000MOQ: 1 Set -
Drywall MachineUS$ 8,000 - 99,000MOQ: 1 Set
-
Down Pipe Forming MachineNegotiableMOQ: 1 Set
-
Metal Roofing Sheet Molding Machine,curving MachineUS$ 4,000 - 6,000MOQ: 1 Set
-
Downspout Roll Forming Machine and Curving MachineUS$ 10,000 - 50,000MOQ: 1 Set
Specifications
large-size car panel roll forming machine1)we are specialized manufacturer
2)the brand name is Feixiang
3)it is steady
large-size car panel roll forming machine cold roll forming machine tile forming machine
Car panel forming machine:
1) decoiling and feeding
2) main forming
3) hydraulic cutting
4) product stand
Car panel forming machine
1. the chart of process flow
decoiling—active feeding—punching—roll forming—measuring length—cutting to length—product to stand
2. introduction of equipment
decoiler,main forming machine,hydraulic punching,hydraulic cutting,product stand,hydraulic system,electric system
technical specifications
1) manual inner tight decoiler
- coil inner diameter:450-700mm
- maximum width of coiling:1200mm
- maximum weight of loading:6000kg
2) main forming machine
- number of forming steps:24
- material of shaft:45#steel adjustable treatment.
Outer diameter:80mm
- main motor power:15kw,7# speed reducer
- forming speed:6-12m/min
- stand:350#steel welding
- the plating chromium of roller surface:0.05mm
- size of machine:12000mm*1200mm*1300mm
- weight:about 9 T
Payment terms: pay 30% after signing contract, pay 70% after checking before
Warranty: 12 months, we will provide technical support for the whole life
