Specifications
1.Size adjustable
2.TOP Directly manufacturer
3.Design as request

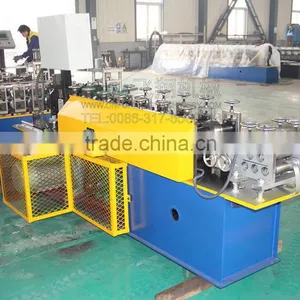

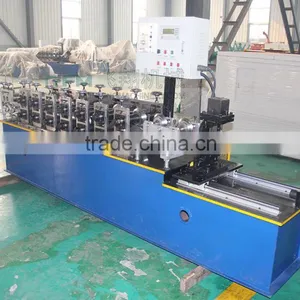

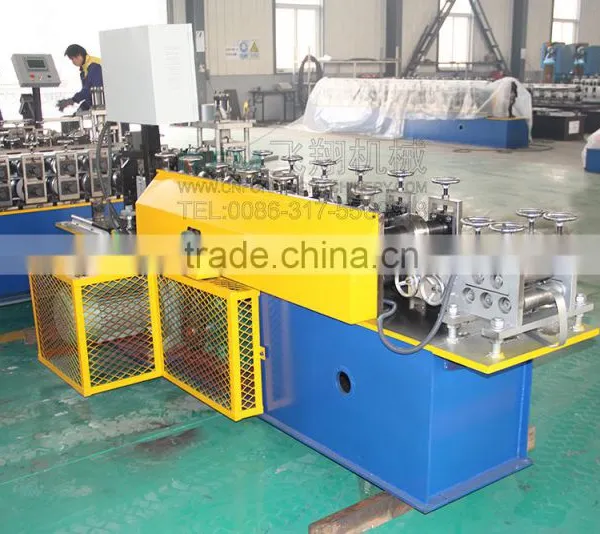

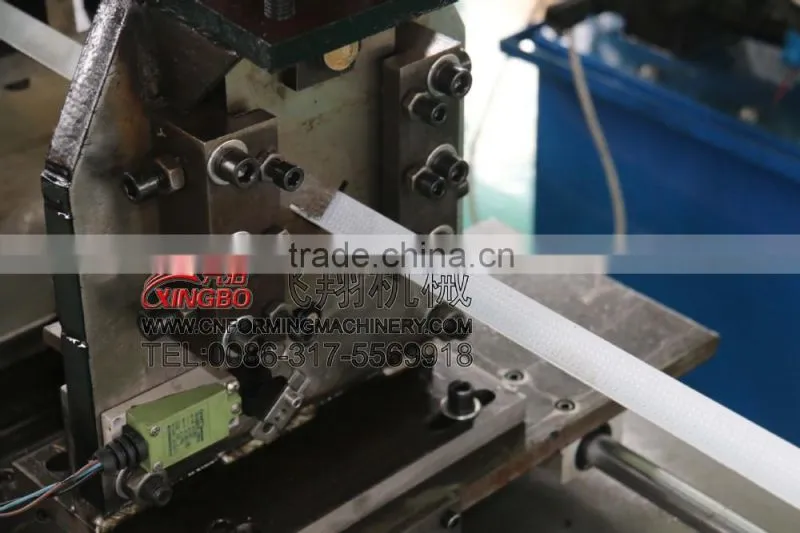

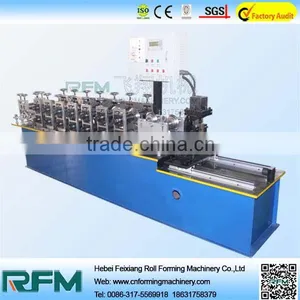

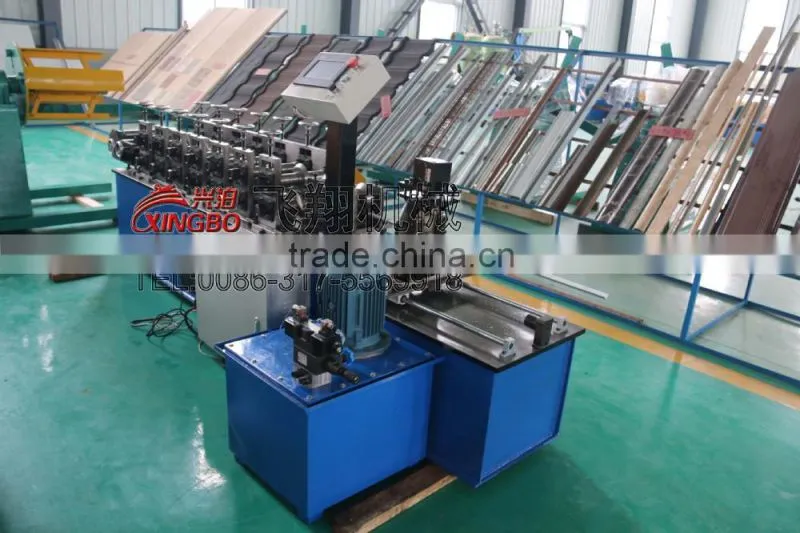

Wall Angle Forming machine

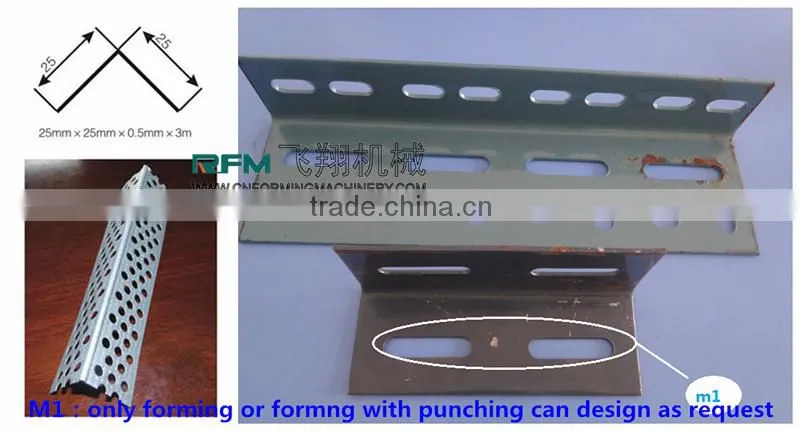

Common drawing for reference,if you have your own request,can design as request.Noram speed :25m/min,high speed can up to 45 m/min
High Quality FX steel tracks light keel wall angle cold roll forming machine
Name |
SET |
Use TO |
1.5 T Manual decoiler |
1 set |
Loading the coil
|

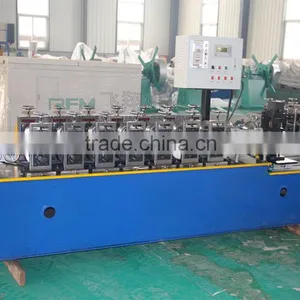

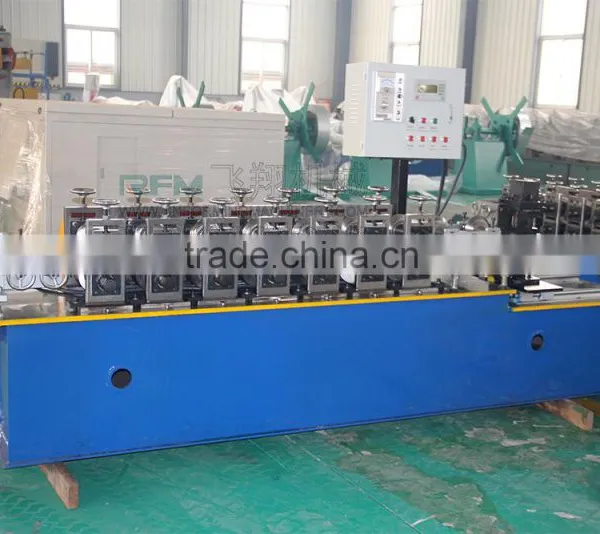

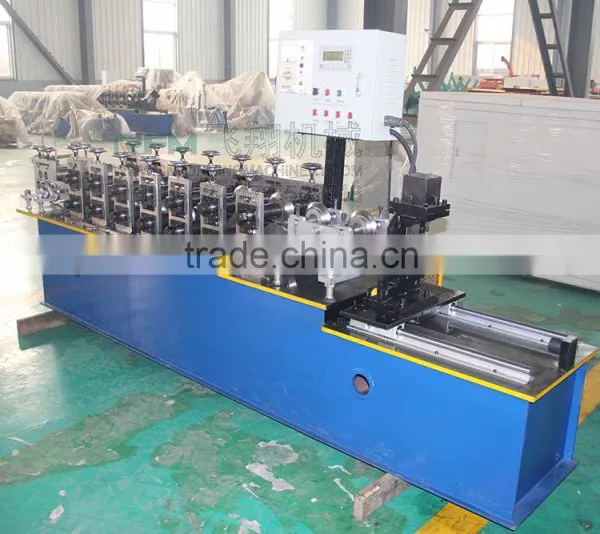

Main forming machine and cutter |
1 set |
12 stations forming the shape.Cutting the length as request.
Raw material rough turning→quenched→polish by grinding maching →CNC fine turning |
PLC control system |
1set |
1.Language as request
2.Text and touch screen for chose
3.Brand PLC:Panasonic /Delta /Mitsubish |
Oil pump |
1 set |
Make coolling as request
|
Product stand |
1 set |
Stand finishing product
|
Remark |
All equipment can order as customer’s request |
|

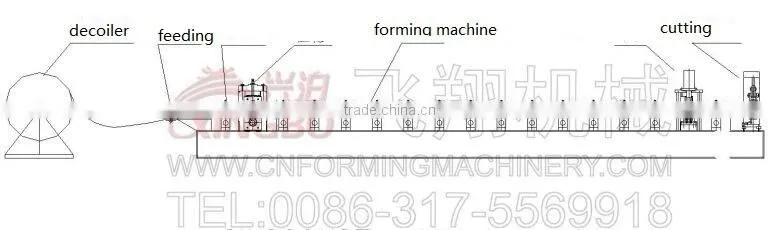

Gear feeding design --forming --strightening --Mould moving cutting(cutting didn't stop working)--stand
1.5 T manual decoiler( can add feet for fix with floor,make the maching can't move)

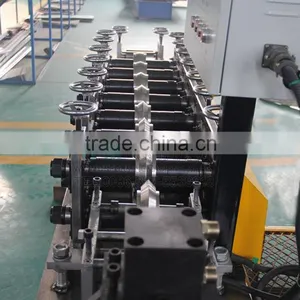

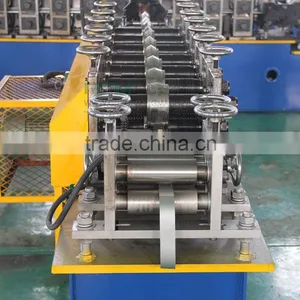

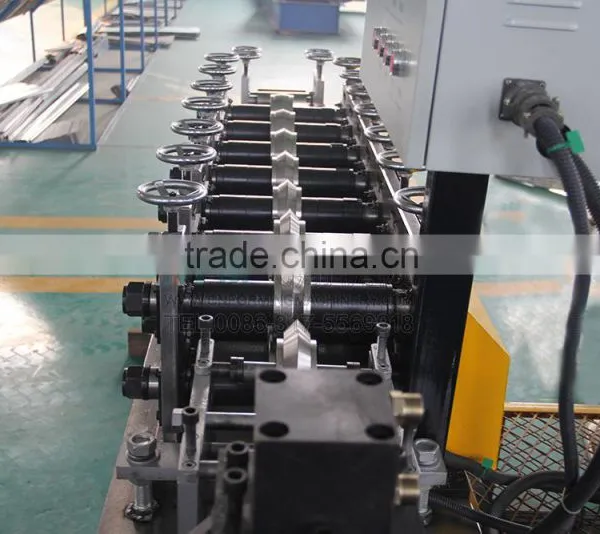

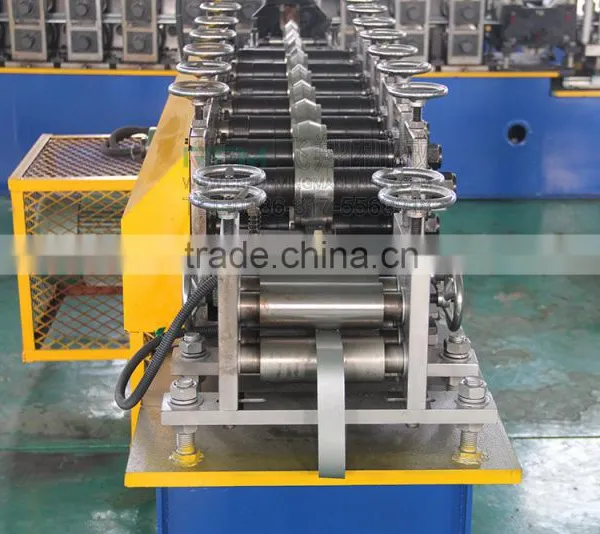

Main boday( normal feed or gear feeding)

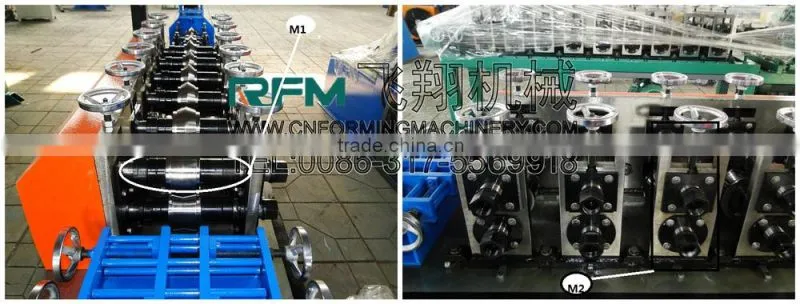

M1: shaft material:45# steel Roller material: GCR12 mov
M2:45# keel design (also can painted color as request)
High Quality FX steel tracks light keel wall angle cold roll forming machine

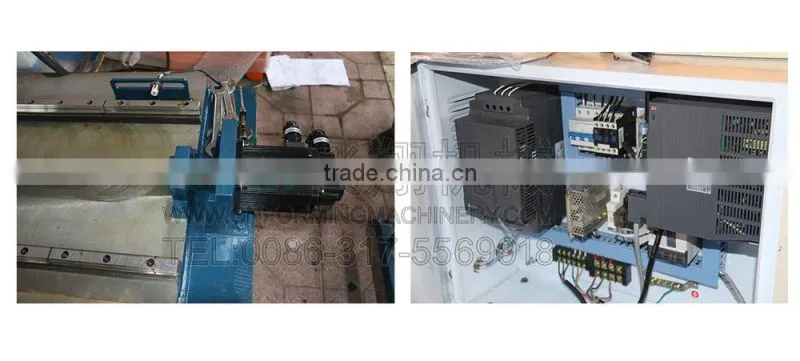

Control part: control brand can request ( Panasonic /Delta /Mitsubish ) Servo motor to up the high speed
Coverby plastic. The control box, hydraulic station and other spare parts are packed with plywood box.

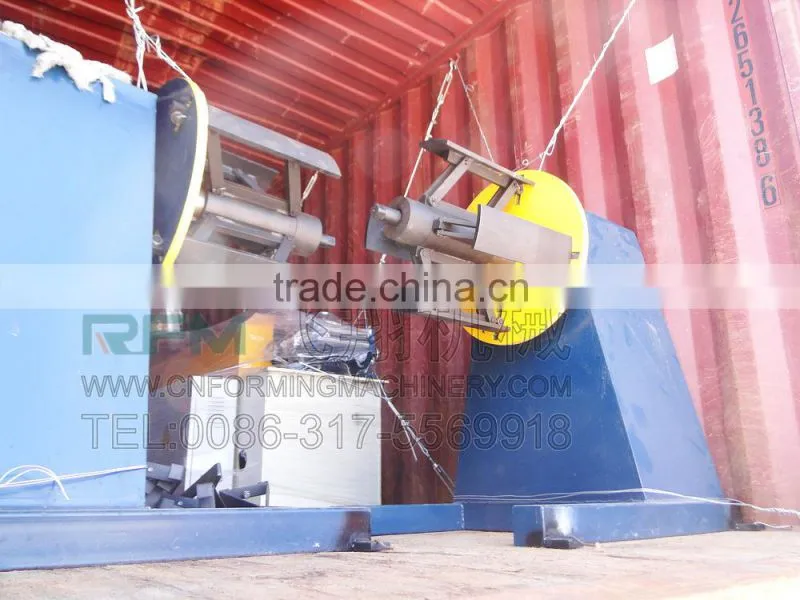

Equipment fix with container use steel wire. Protect the machine didn't broken in the delivery

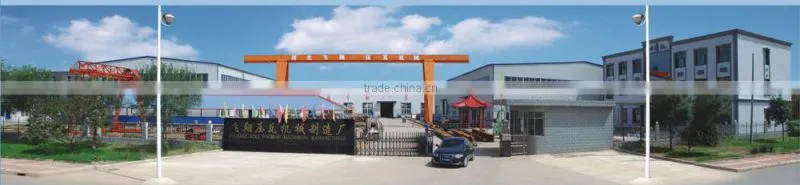

Comany have two main workshope,Feixiang workshop and Feitian workshop,
Feixiang workshop photo:
Branch company:
Contact information:
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.
Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!
The real data, the most professinal foreign trade team, your best trustable partner.
How to order:
---------------------------------------------------------------------------------
1: How to place order
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2: How to visit our company
Fly to Beijing airport: By high speed train From Beijing south station to Cangzhou west station (1 hour),
then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou west station(4.5 hours),then we can pick up you.
If any questions, you can call me mobile phone at any times
3: If you want to get more pictures or videos of the machines, I can send them to you by Email or Skype.
FAQ:
---------------------------------------------------------------------------------
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
