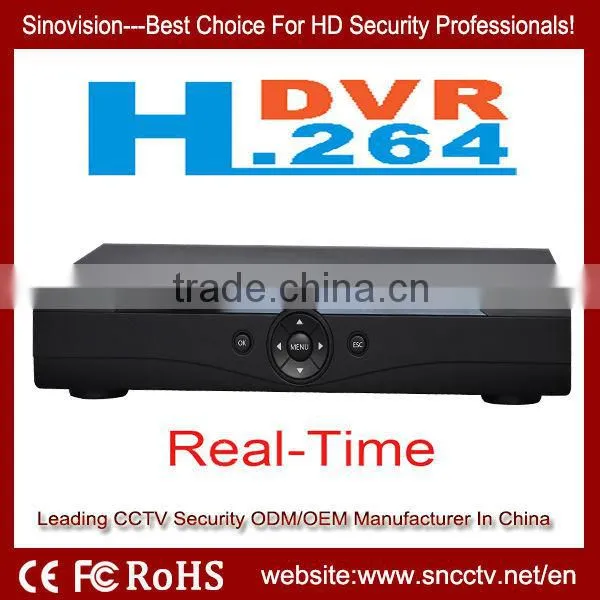

cms h.264 network hardware compression 4ch/8ch/16ch network dvr

Model

SN-7204E

SN-7208E

SN-7216E

Menu display

1/4 screen;

1/4/8/9/screen

1/4/8/9/16screen

Video

Video Standards

PAL(625 line,50 f/s);NTSC(525 line,60 f/s)

Surveillance quality

PAL,D1(704×576);NTSC,D1(704×480)

Code ability

100/120fps4 *960H@25fps

200/240fps 8 D1@25fps

2D1@25fps+14CIF@25fps

Motion Detection

Zones:396(22*18)detection zones, many levels of Sensitivity setting

Record &

Playback

Recording Mode

Manual>Alarm>Dynamic Detection>Timing

Playback

4CH playback at same time

Search Mode

Time/Date,Alarm, Motion Detection & exact search(accurate to second)

Storage &

Backup

Space Occupation

CIF:5G/DAY/CH   D1:20G/DAY/CH   720P:40G/DAY/CH     1080P:80G/DAY/CH

Video storage

Hard disk, , and net

Backup Mode

Network burn, mobile Hard disk and USB burn,

Interface

Video Input

4 channel RCA

8 channel RCA

16 channel RCA

Video Output

1 channel, BNC, 1.0Vp-p,75Ω and 1 VGA output, 1 channel HDMI Output (1920*1080P)

Audio Input

4 channel RCA

2 Channel RCA

Audio Output

1channel RCA

Alarm Input

NO

Alarm output

NO

Net Interface

RJ-45 (10M/100M)

PTZ Control

1 RS485

USB Interface

2*USB

Hard Disk

2 SATA ports (max 2048G)

Other

Power Supply

12V/3A

Dimension

260x210x40MM
