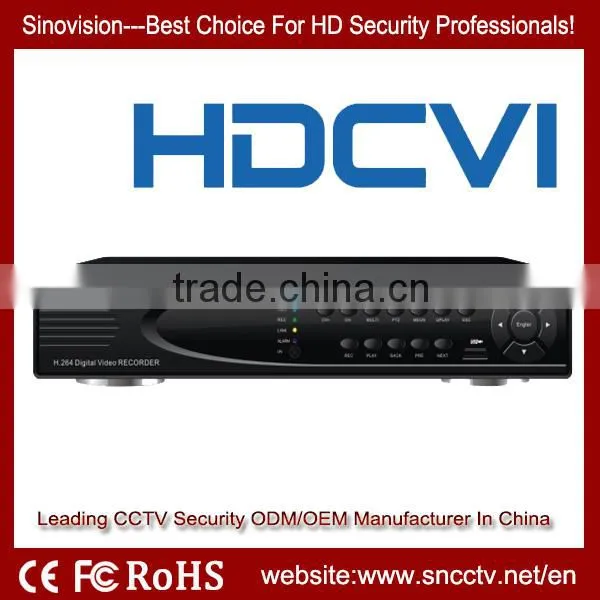

Dahua 720P H.264 Compression HDCVI DVR Support 720P/D1/HD1/2CIF/CIF/QCIF

Model

SN-CV6004

SN-CV6008

System

Main Processor

Embedded processor

Operating System

Embedded LINUX

Video

Input

4 channel, BNC

8 channel, BNC

Display

Interface

1 HDMI, 1 VGA,

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768, 800×600

Display Split

1/4

1/4/8

Privacy Masking

4 rectangular zones (each camera)

Recording

Video/Audio Compression

H.264 / G.711

Resolution

720P(1280×720/1280×600)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120)

Record Rate

Main Stream:

720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)

Extra Stream

CIF/QCIF(1~25/30fps)

Bit Rate

48~6144Kb/s

Record Mode

Manual, Schedule(Regular(Continuous), MD), Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

Playback & Backup

Sync Playback

1/4

1/4/8

Search Mode

Time/Date, MD & Exact search (accurate to second)

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device / Network

Network

Ethernet

RJ-45 port (10/100M)

Network Functions

HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter

Smart Phone

iPhone, iPad, Android, Windows Phone

Storage

Internal HDD

1 SATA port, up to 3TB

Auxiliary Interface

USB Interface

2 ports(2 Rear), USB2.0

General

Power Supply

DC12V/2A

Power Consumption

10W(without HDD)

Working Environment

-10 ~+55°C / 10~90%RH / 86~106kpa
